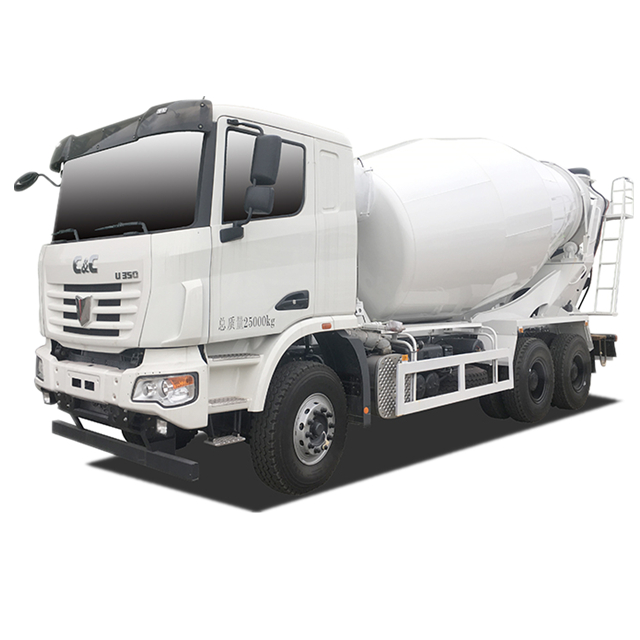

6×4 C&C 15m3 Concrete Mixer truck Adopts Jirui joint flat roof with lying Cab, wheelbase 4200+1350mm,fst 9 speeds gearbox, vehicle size:10055×2550×3990mm, equipped with Yuchai 350 horsepower Eruo 5 diesel engine.
products description:
Our mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Our concrete truck mixer consists of seven main parts. Theyare hydraulic pump, reducer, rotating drum mixer, operation system, drum cleaning system,concrete feed hopper,concrete outlet hopper.
6×4 C&C 15m3 Concrete Mixer truck Specification:
| Basic parameters | |||
| Vehicle name: | 14-15M3 concrete mixer truck | Product trademark: | Jirui United C&C truck |
| engine: | 350 hp Yuchai | Cab: | Jirui joint flat roof with lying |
| Gearbox: | Fast 9 | Rear axle: | 16-ton wheel-side deceleration rear axle |
| Dimensions: | 10055×2550×3990(mm) | Actual volume: | 15 parties |
| Total quality: | 25000kg | Curb quality: | 15900kg |
| Maximum speed: | 85km/h | Displacement: | 10338ml |
| Wheelbase: | 4200+1350(mm) | Tire specifications: | 12.00R-20 original steel wire tire |
| Drive method: | 6×4 | Braking method: | Steam brake (with ABS) |
| Fuel type: | Diesel | Emission Standards: | Eruo 5 |
| Upload parameters | |||
| Head: | 8mm thick high-strength manganese steel (Q345) material is more wear-resistant | Tank body: | 6mm thick 16 fierce high alloy steel |
| blade: | 5mm thick (520JJ) alloy steel material (adding wear-resistant strips to increase service life) | Reducer: | Italy Bonfiglioli (optionally equipped with German ZF, Italian PMP, and Fast reducer) |
| Hydraulic system: | German Rexroth (optional PMP oil pump motors of American Eaton, Danvers, Sao, Italy) | cooling system: | Xinxiang Zhenhua (Changzhou Kaipeng and Xugong radiators are optional) |
| water supply system: | 400L water tank pressure water supply | Operation method: | Trilateral operation on the left and right sides and the cab |
| Feeding speed: | 3m3/min | Discharging speed: | 2m3/min |
| Discharge residual rate: | Discharge residual rate≤0.5 | Discharge range: | 180° height adjustment |

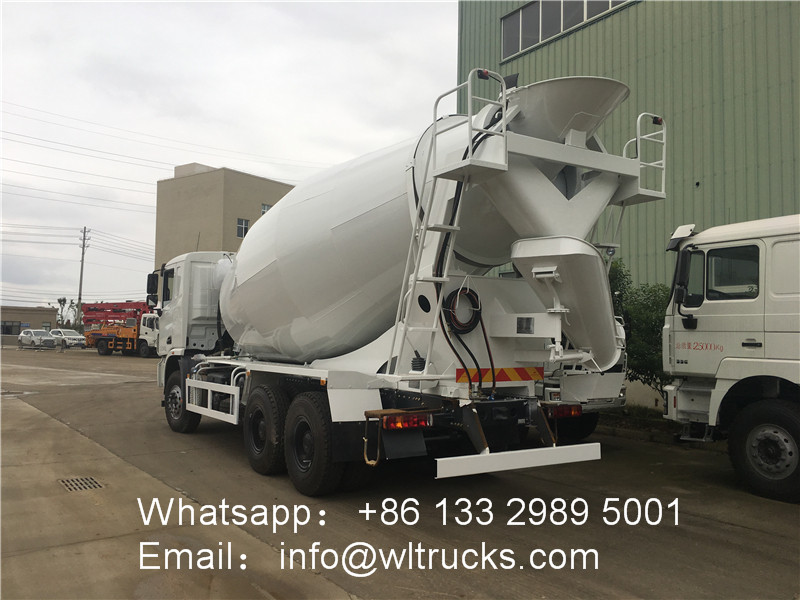

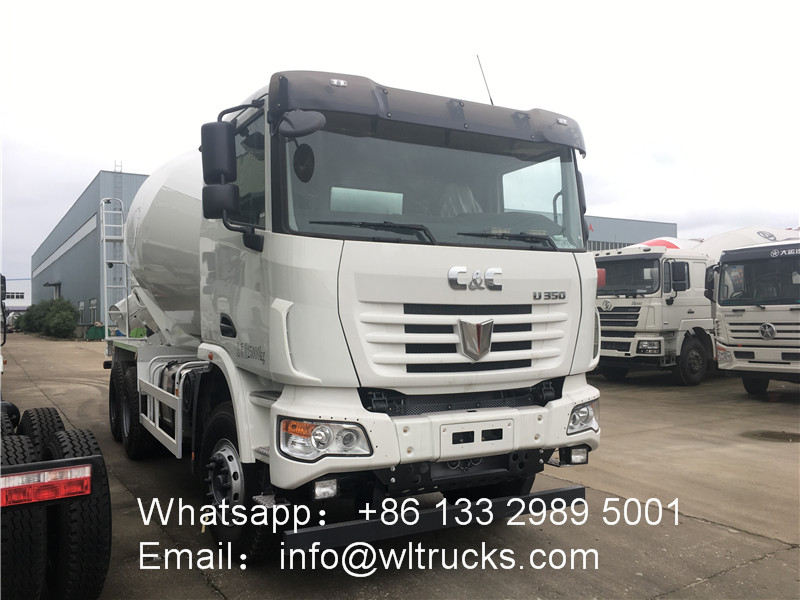

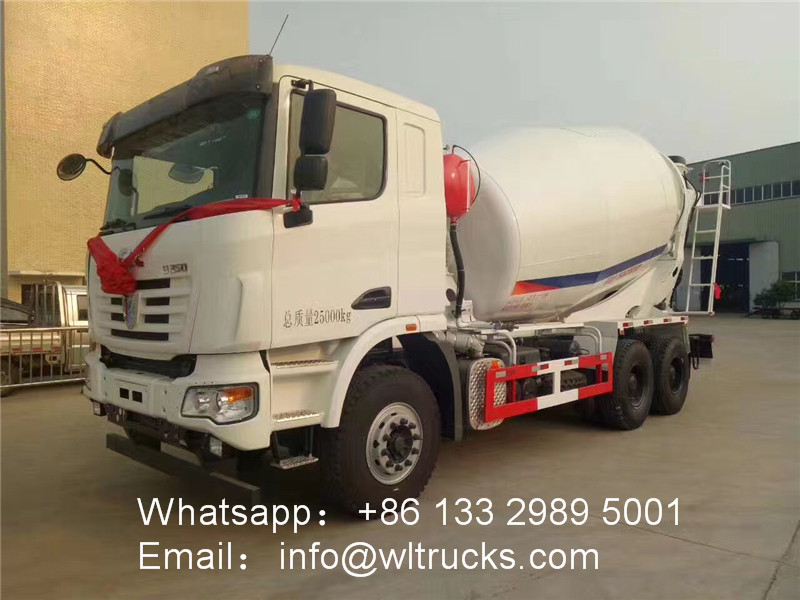

cement mixer vehicle detailed picture:
mixing trucks Structural composition drawings:
