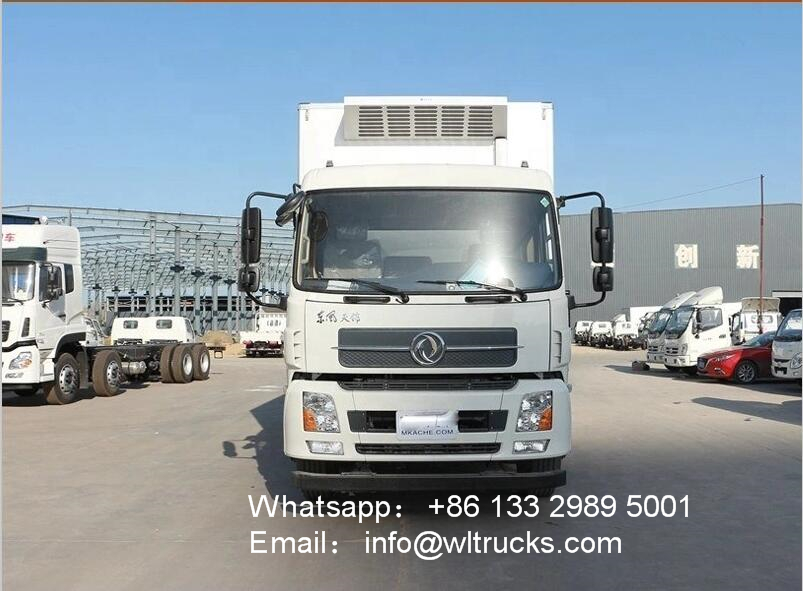

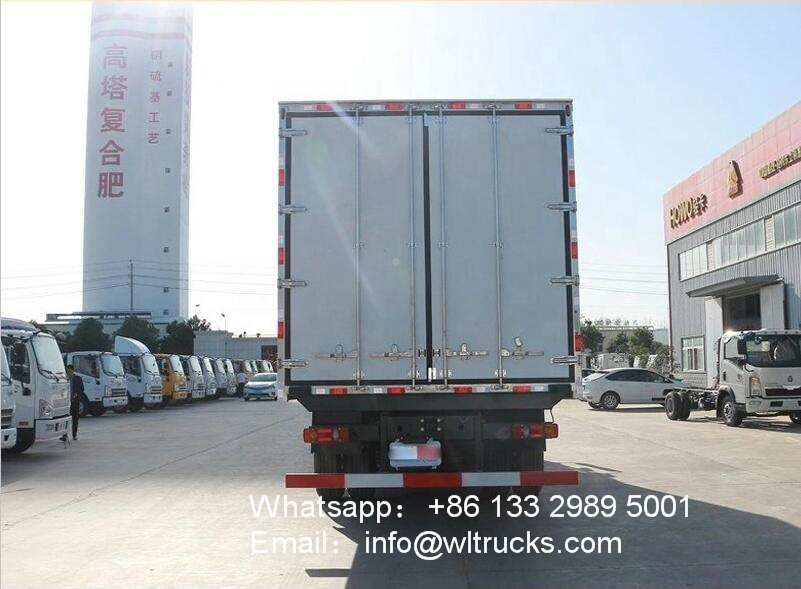

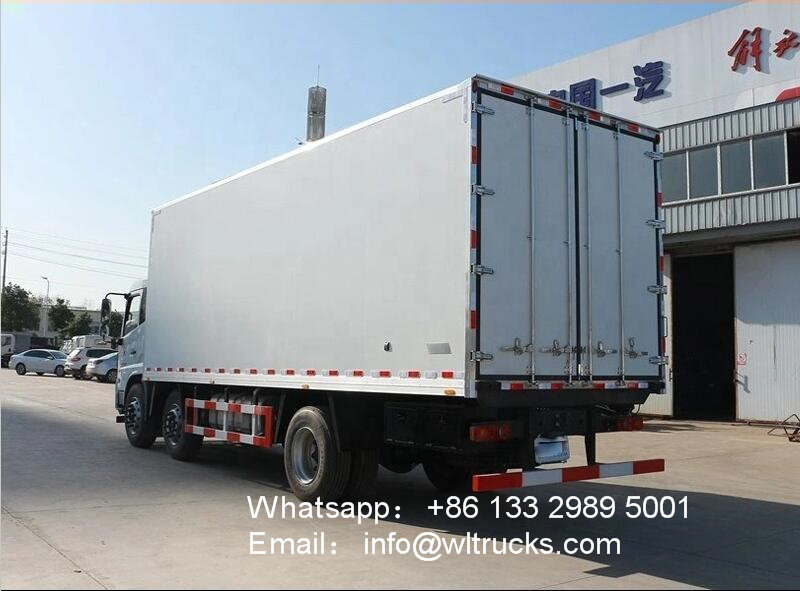

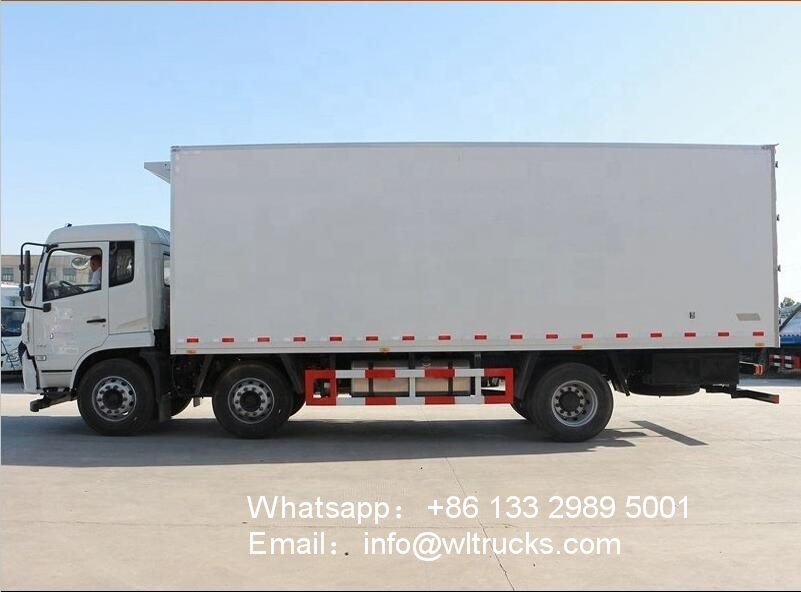

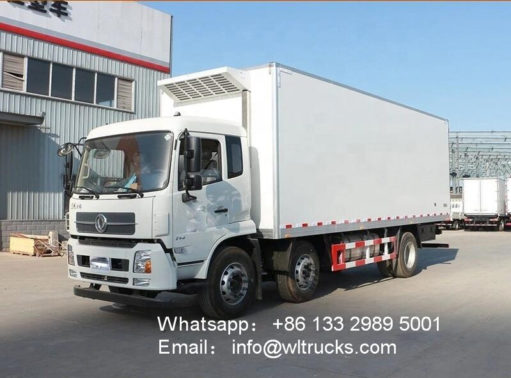

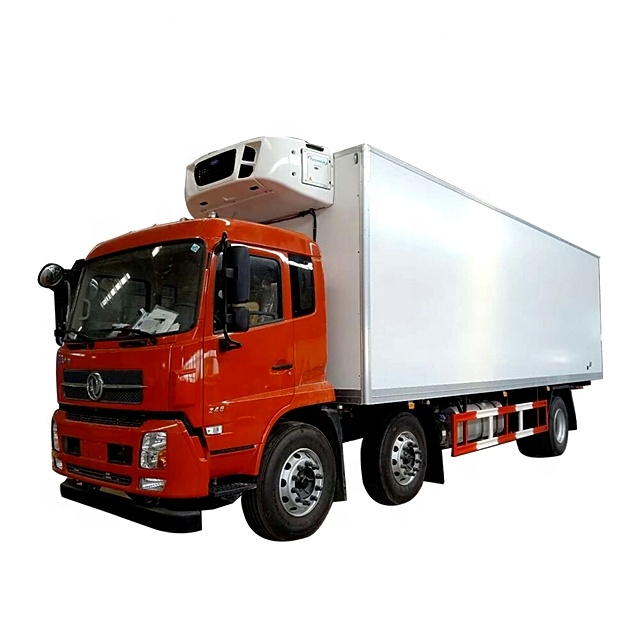

6×2 Dongfeng 16 ton to 20 ton refrigerator trucks
Adopt Dongfeng 6×2 / 6×4 Tianjin luxury cab, Euro III Cummins 210, 240 horsepower engine, 8-speed gearbox, 1000-20 tires, cargo box size: 7800*2440*2400 (mm) The cabinet is made of fiberglass reinforced plastic, inside and outside, 8 cm thick polyurethane insulation, stainless steel door locks, double rear doors and optional 5 to 18 degree refrigeration unit.
Stainless steel ventilation slots, meat hooks, rails, non-slip aluminum pattern plates can be installed inside the refrigerator, and side doors can be added.
6×2 Dongfeng 16 ton to 20 ton refrigerator trucks products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
6×2 Dongfeng 16 ton to 20 ton refrigerator trucks specification:
| Item No. | Parameters |
| Overall Dimension | 11000*2600*3990(mm) |
| Gross Vehicle Weight | 31000kg |
| Curb Weight | 13200kg |
| Wheel Base | 1800+5000mm |
| Gearbox | 8 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance |
| Engine | |
| Engine horsepower | 430HP EURO 2or3 |
| Displacement | 12L (Diesel) |
| Max Driving Speed | 98 km/h |
| Cabin | 2or3 Passengers |
| Tire | 11.00R20, 10pcs + 1 spare tire |
| Carriage Body | |
| Size: | 9600*2450*2500(mm) |
| Body Material | Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation. |
| Refrigerator | High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree. |
6×2 Dongfeng 16 ton to 20 ton refrigerator trucks Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
6×2 Dongfeng 16 ton to 20 ton refrigerator trucks New craft:
6×2 Dongfeng 16 ton to 20 ton refrigerator trucks Optional configuration:
6×2 Dongfeng 16 ton to 20 ton refrigerator trucks Bodywork details:
6×2 Dongfeng 16 ton to 20 ton refrigerator trucks Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
