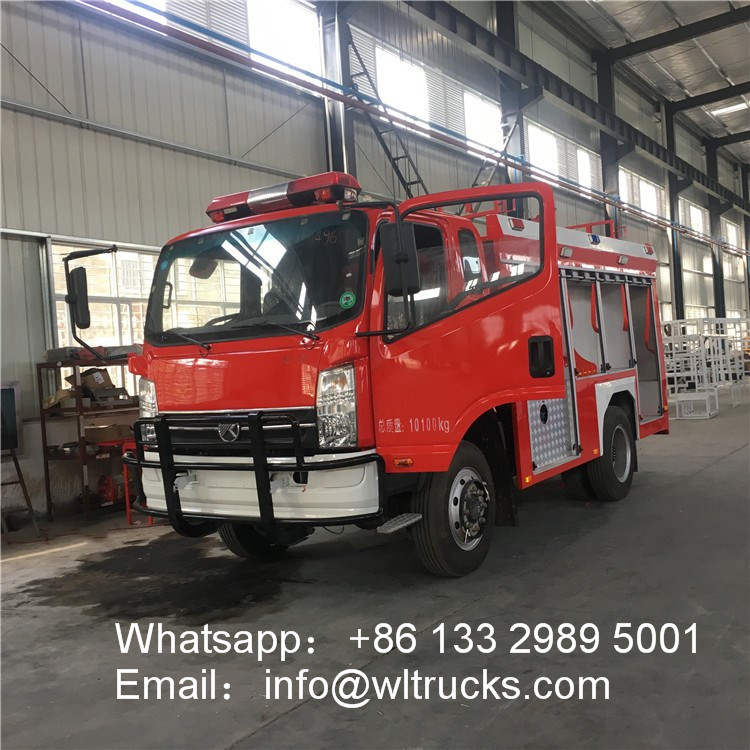

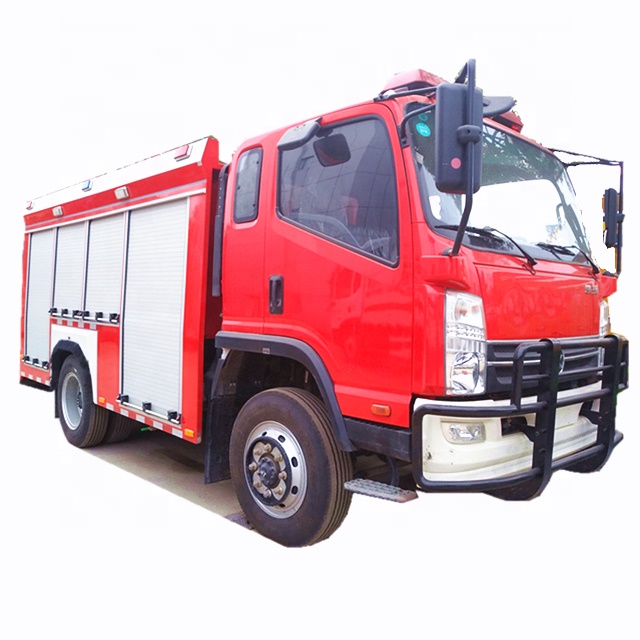

4×4 KAMA 3500L fire fighting truck is a special off-road forest fire truck specially launched by our factory according to the characteristics of forest fire fighting on the off-road performance and passability of fire trucks. The volume is 3.5 cubic meters, the water storage tank is large, and the range is more than 50 meters, to ensure the fire extinguishing effect.
Product Specifications:
Parameter configuration of Kama 4WD off-road forest fire truck
| Chassis model | KMC2100A32P5 | engine model | 170hp/125KW in the cloud |
| Outside dimensions | 6260×1980×2780mm | Wheelbase | 3200mm |
| Carrier volume | 3.5 cubic meters | Emission Standards | Eruo 3 |
| Fire Pump | CB10/30 | Fire cannon | PS30w |
| Fire pump rated flow | 30L/s 1.0MPa | Environmental protection/exemption | Reporting |
| Rated flow of fire monitor | 30L/s 1.0MPa | Fire gun range | Water≥50m |
- Main parameters of chassis
| Chassis model | KMC2100A32P5 | manufacturer | Kaima Automobile Manufacturing Co., Ltd. |
| Engine rated power | 125kw | engine capacity | 3920ml |
| Engine emission standards | GB17691-2005 National V | Drive form | 4×4 (All Drive) |
| Wheelbase | 3200mm | Cab structure | Flat head, double door, original row and a half |
| Minimum turning radius | ≤12m | Number of passengers | 3 people |
| Gearbox | Manual | Driver position | Left |
| device | Fire control instrument panel and police light control box are installed at the original car dashboard
1. Alarm; 2. Power switch control switch and indicator light; 3. Additional power switch; |
||

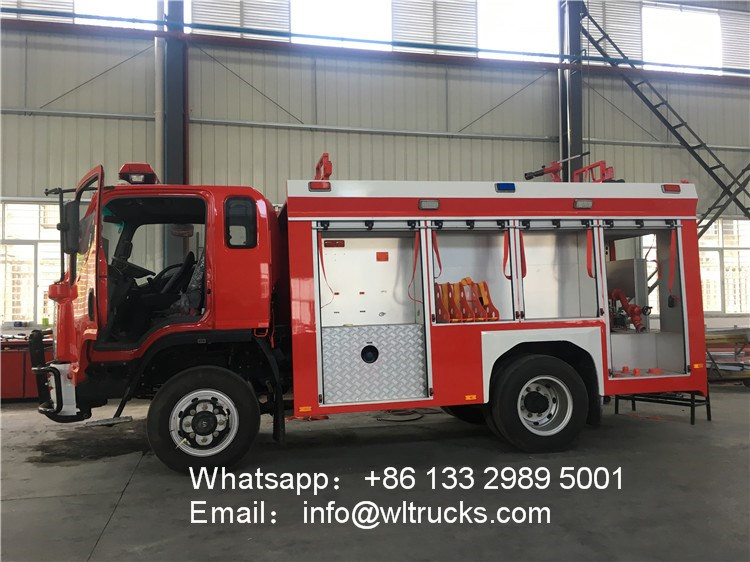

- Equipment box and pump room
 |
The main frame structure is welded with high-quality square tubes, and the outer decorative plate is welded with carbon steel plates. The roof is non-slip and can be walked on. (Aluminum alloy square tube welding can be used according to user needs) |
| The equipment boxes are located on both sides of the rear of the passenger compartment, and are equipped with aluminum alloy rolling doors with lighting lamps inside. Storage boxes are set in the equipment box room according to demand. The lower part of the side is provided with a flip pedal. | |

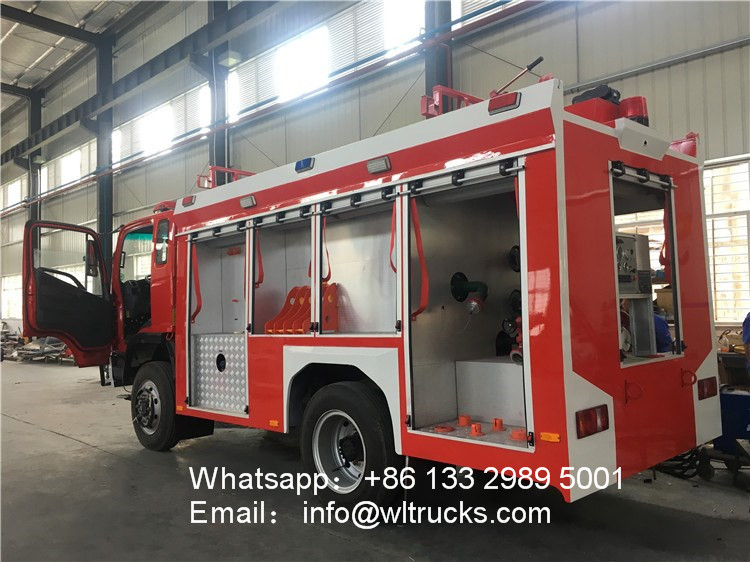

| The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutters on both sides and the rear, with lighting lights inside, and flip pedals on the lower sides of the pump room. Insulation position: install fuel heater (optional according to customer requirements) |
- Jug
| capacity | 3500kg |
| Material | High-quality carbon steel with a thickness of 3mm (can be made of stainless steel and PP according to user needs) |
| Tank fixing | Flexible connection with chassis frame |
| Tank settings | One manhole with a diameter of 460mm, with quick locking/opening device, one DN65 overflow port, one DN40 water tank for surplus water outlet, ball valve, water inlet and outlet: one water tank to the pump inlet pipe, DN100 The valve can be controlled pneumatically and manually, with a water pump to the water filling pipe of the tank, and the DN40 valve can be controlled pneumatically and manually |

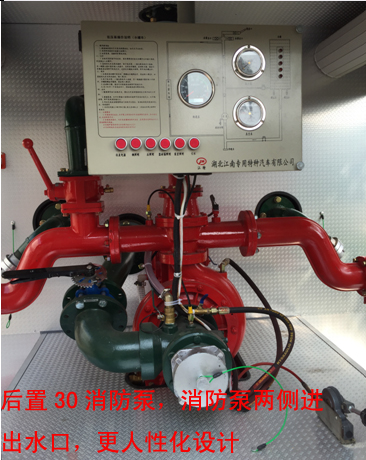

- Fire Pump
| model | CB10/30 type low-pressure vehicle fire pump |  |
| form | Atmospheric centrifugal | |
| Limited Data | 30L/s @1.0MPa | |
| Rated outlet pressure | 1.0MPa | |
| Maximum suction depth | 7m | |
| Water diversion device | Built-in sliding vane pump | |
| Diversion time | Maximum suction depth≤35s |
- Fire cannon
| model | PS30W |  |
| manufacturer | Chengdu West | |
| Rotation angle | 360° horizontal rotation | |
| Maximum elevation/depression angle | Depression angle ≤-15°, elevation angle ≥+45° | |
| flow | 30L/S | |
| Range | ≥50m |

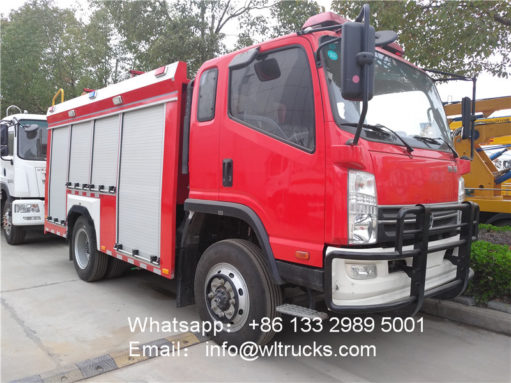

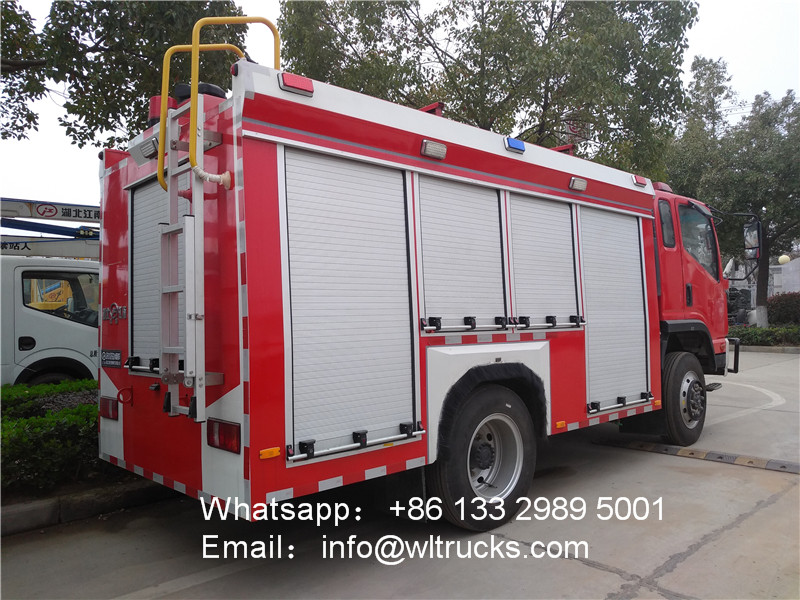

4×4 KAMA 3500L fire fighting truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | KD100×2 meters | 4 | root | Threaded |
| 2 | Water filter | FLF100 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 8 | plate | Low pressure; |
| 6 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 7 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 8 | Hose hook | 4 | Piece | ||
| 9 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 10 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 11 | Suction pipe wrench | FS100 | 2 | Piece | |
| 12 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 13 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | Fire bucket | 1 | Pc | ||
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
