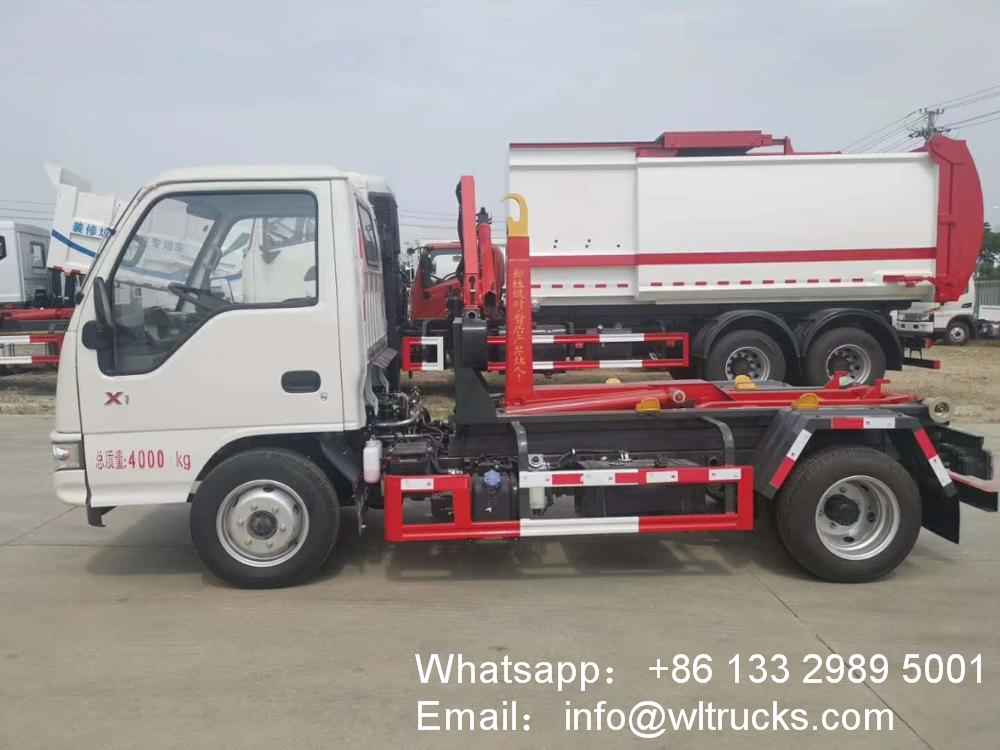

4×2 JAC 3 ton small hook arm garbage truck Product Description:
4×2 JAC 3 ton small hook arm garbage truck with a wheelbase of 2.6 meters, JAC Xiaofuxing cab, Quanchai 88-horsepower engine, 5-speed gearbox, 185R15LT vacuum tire, oil brake, ABS.
4×2 JAC 3 ton small hook arm garbage truck Specifications:
| 【Vehicle technical parameters】 | |||||
| product name | Car detachable garbage truck | batch | 308 | ||
| Total mass (Kg) | 4000 | Rated load mass (Kg) | 1450 | ||
| Curb weight (Kg) | 2420 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 2 | Rated passenger (person) | |||
| Dimensions (mm) | 4370 x 1650 x 2000 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle / departure angle (°) | 24.9 / 19 | Front / rear suspension (mm) | 976/794 | ||
| Axle load (Kg) | 1500/2500 | Maximum speed (Km / h) | 100 | ||
| Remarks | The side and the rear protective device are made of Q235A carbon steel, the rear protective cross-sectional size: 120 × 50 (mm), the height from the ground is 430 (mm), and the connection method is welding connection. Comet Automotive Electronic Control Technology Co., Ltd. Special device: arm mechanism, mainly used for the collection and transportation of urban sanitation bulk domestic garbage. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | HFC1042PW4K1B3ZV | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 2600 | ||||
| Tire specifications | 185R15LT 8PR | ||||
| Front track (mm) | 1296,1360 | Rear track (mm) | 1200 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| 4A2-88C50 | Anhui Quanchai Power Co., Ltd. | 2270 | 65 | ||
4×2 JAC 3 ton small hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |

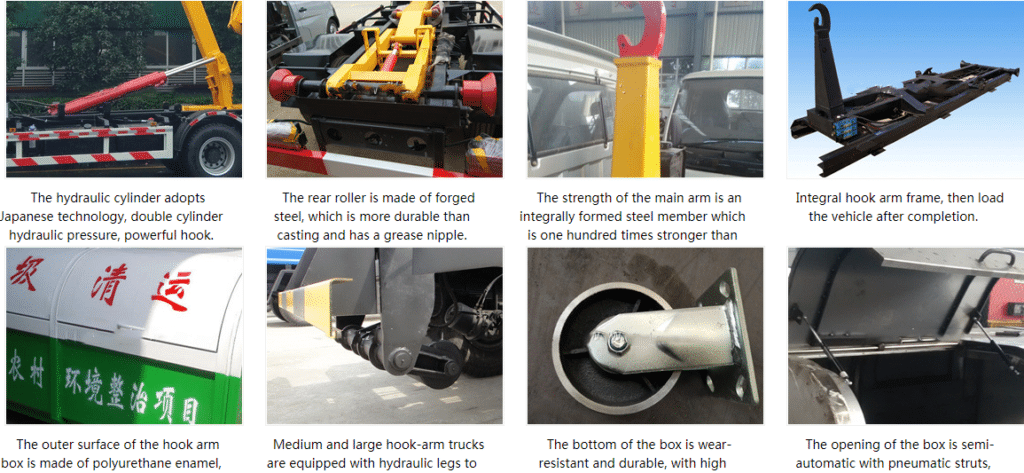

4×2 JAC 3 ton small hook arm garbage truck New craft:

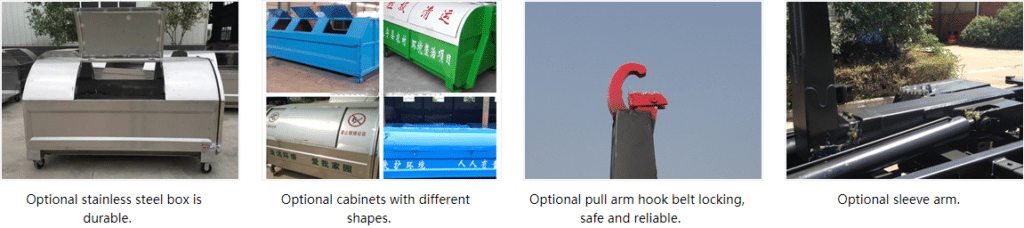

4×2 JAC 3 ton small hook arm garbage truck Optional configuration:

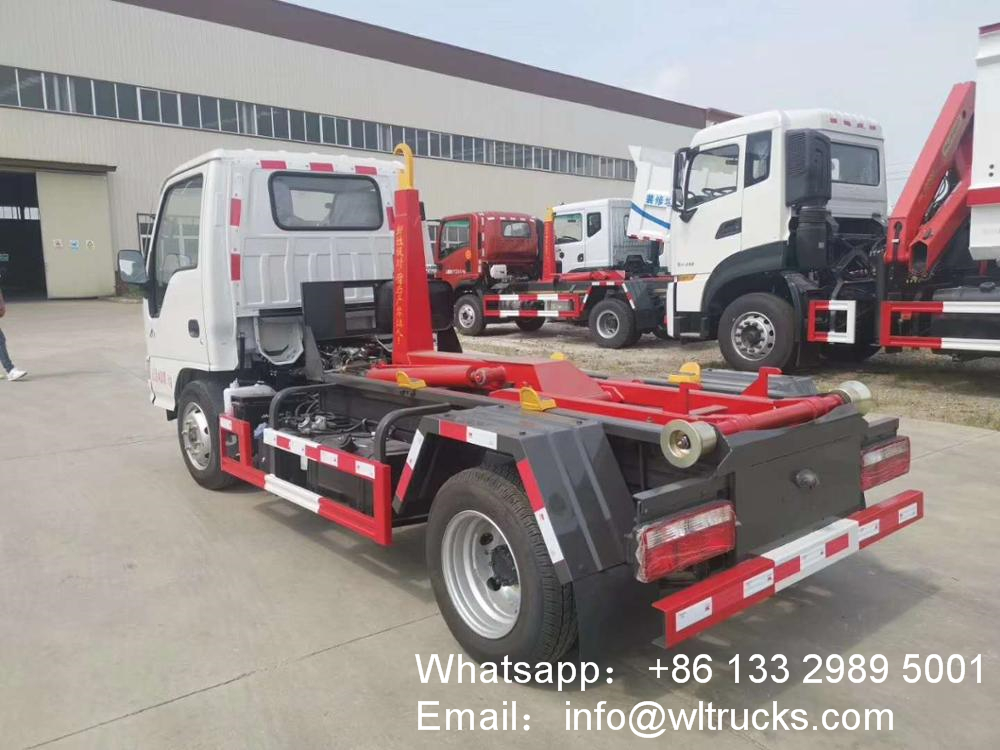

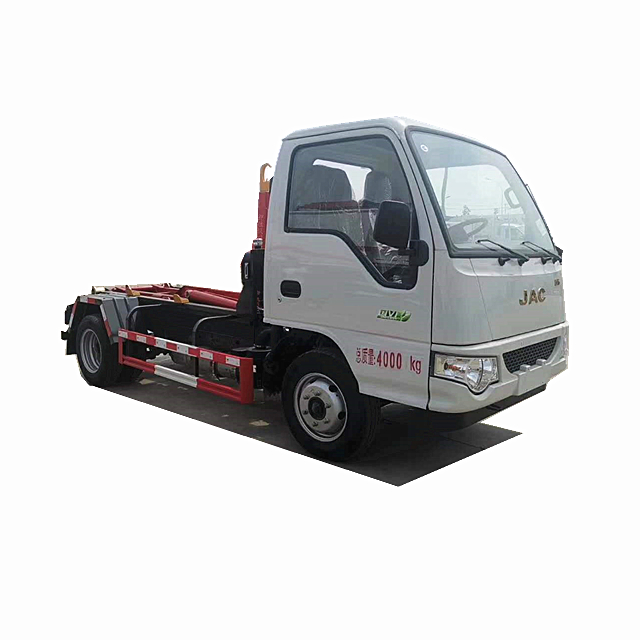

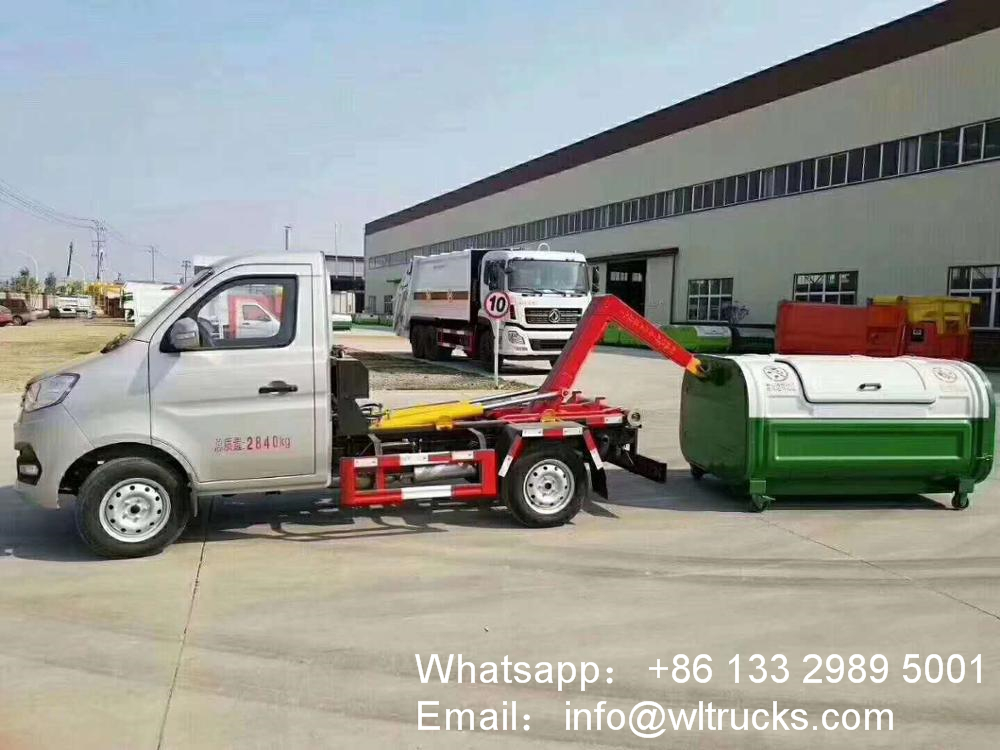

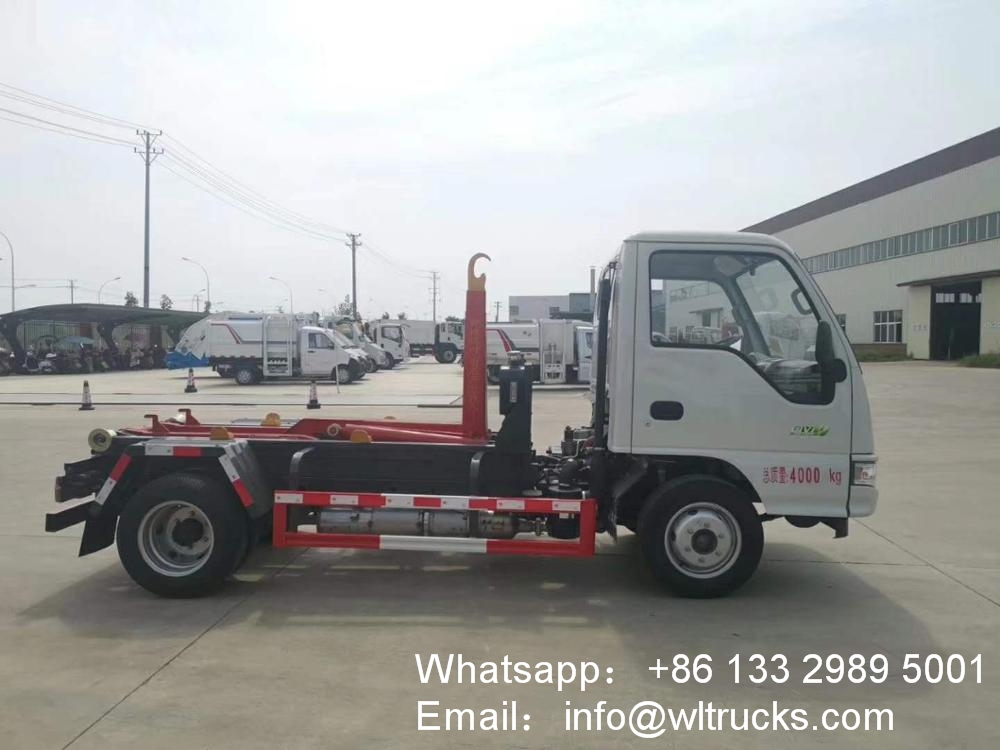

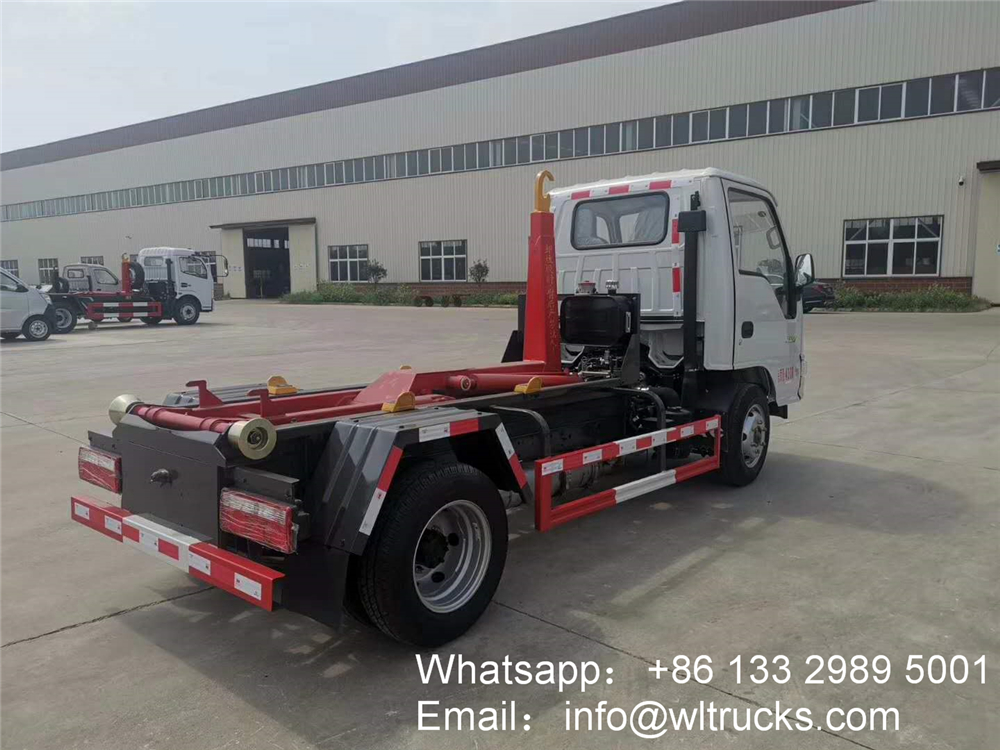

4×2 JAC 3 ton small hook arm garbage truck detailed images:

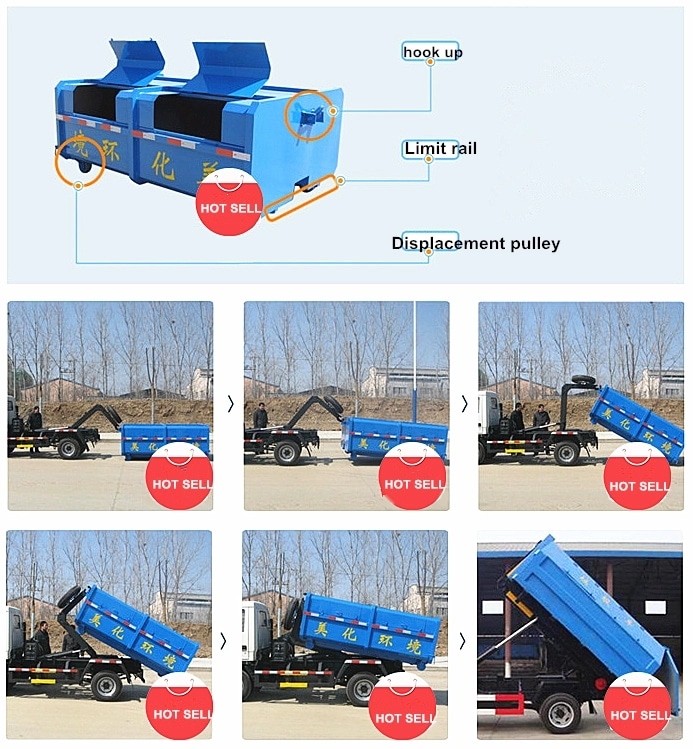

4×2 JAC 3 ton small hook arm garbage truck Structure diagram：
4×2 JAC 3 ton small hook arm garbage truck Detail drawing:
