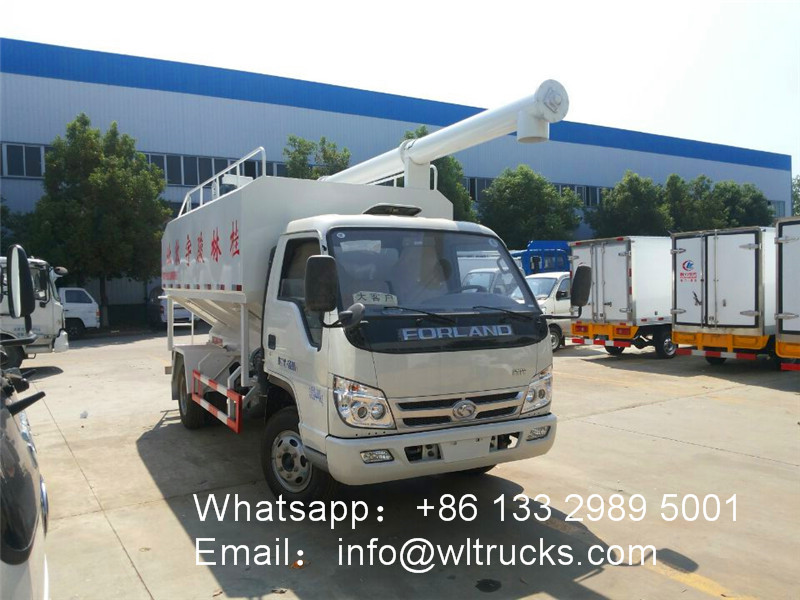

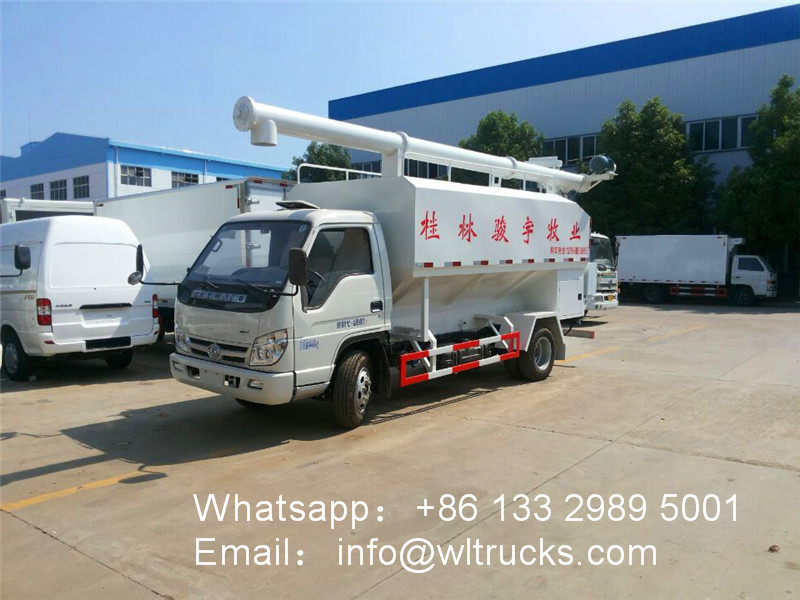

4×2 Foton 8m3 mini bulk feed truck Adopt Foton xiaoka cab, Quanchai 90 horsepower engine, 5 speed gearbox. The Vehicle size is 6200×2000×3260 (mm). 4mm thick carbon steel plate, can rotate 180° left and right.
product Introduction:
The bulk feed trucks produced by our company can transport different kinds of feeds through separate bins. It has obvious convenience advantages and wide-ranging uses. It is an essential transportation tool for farms and feed mills.
Optional feed tank capacity: 8cbm to 40cbm bulk feed truck.
Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.
Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO ,FAW,SINOTRUK,I-SUZUbulk feed trucks for choose.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.
bulk feed truck advantages：
1. Automatic feeding and unloading, the feed will not be separated again.
2. Complete functions, capable of transporting powdery materials, granular materials, forage amino acids, soybean meal, cereals, straw, green fodder, meat and bone meal, whey powder, fat, fish meal, miscellaneous meal, etc.
3.Jiaolong adopts graphite bearing and intermediate joint support structure.
4. Install auger alarm device and tail lighting device.
5. Fully automatic mechanized operation, without manual loading and unloading, only need to be equipped with a driver.
6. The tank body is made of high-strength steel plate, which is welded and formed at one time, with strong sealing performance, and the seamless inspection of the tank body is ensured through the inflation test.
7. The tank body is all sealed design, so there is no pollution to the air during transportation.

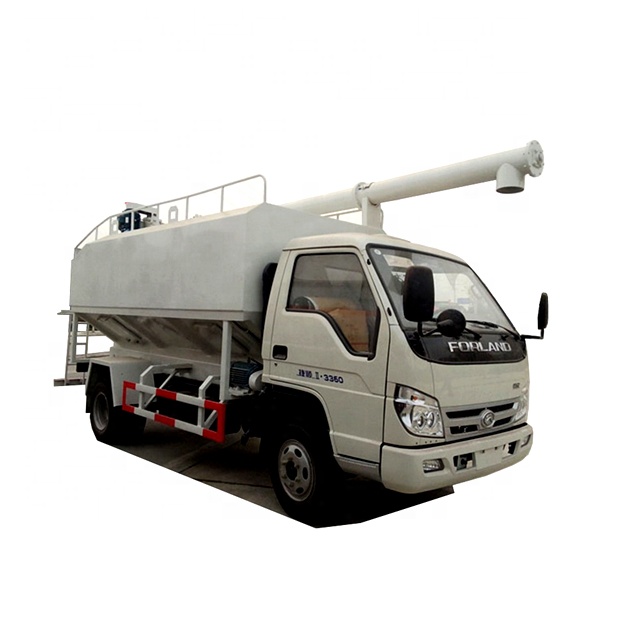

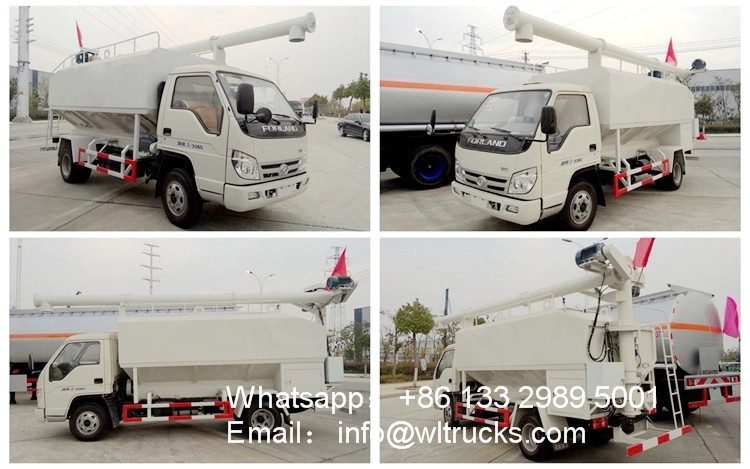

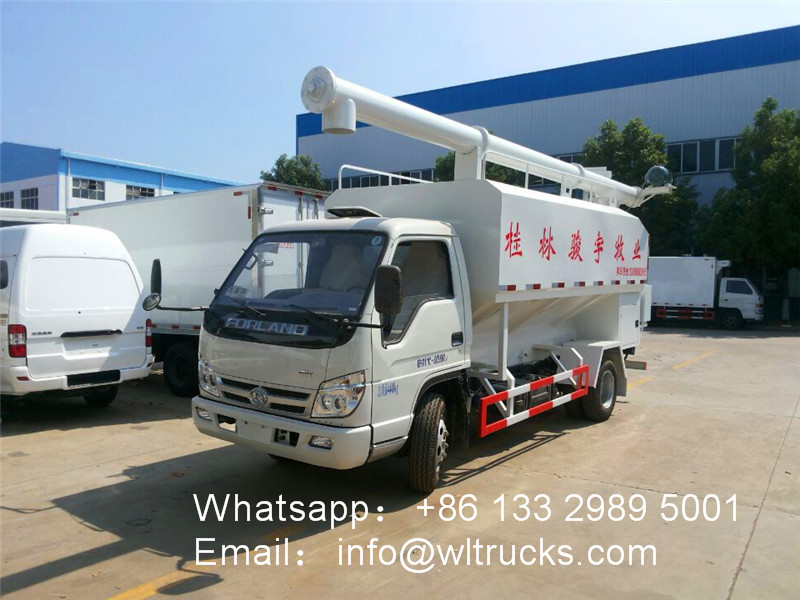

4×2 Foton 8m3 mini bulk feed truck Specification:
| Commdity | 4T bulk feed transportation truck |
| Chassis Brand | Foton/ Forland |
| Loading capacity | 4T |
| Volume | 8 cbm |
| Overall dimension | 6200*2000*3260 mm |
| Total weight | 7495 kgs |
| Curb weight | 4300kgs |
| whellbase | 3360 mm |
| Max speed | 90 km/h |
| Tyre | pcs,7.00-16 |
| Conveying height | 8.2 m |
| Conveying distance | 7.2m |
| Discharge rate | >510 kg/min |
| Residual rate | <0.1% |
| Material | Wugang |
| medium density | 500 kg/cbm |
| Medium | bulk feed, grain,powder, corn |
| discharge time of whole vehicle | 25 minutes |
| Discharge rotation angle | 360 degree |
| Subwarehouse | 2 |
| Discharge system | hydraulic / electric system |

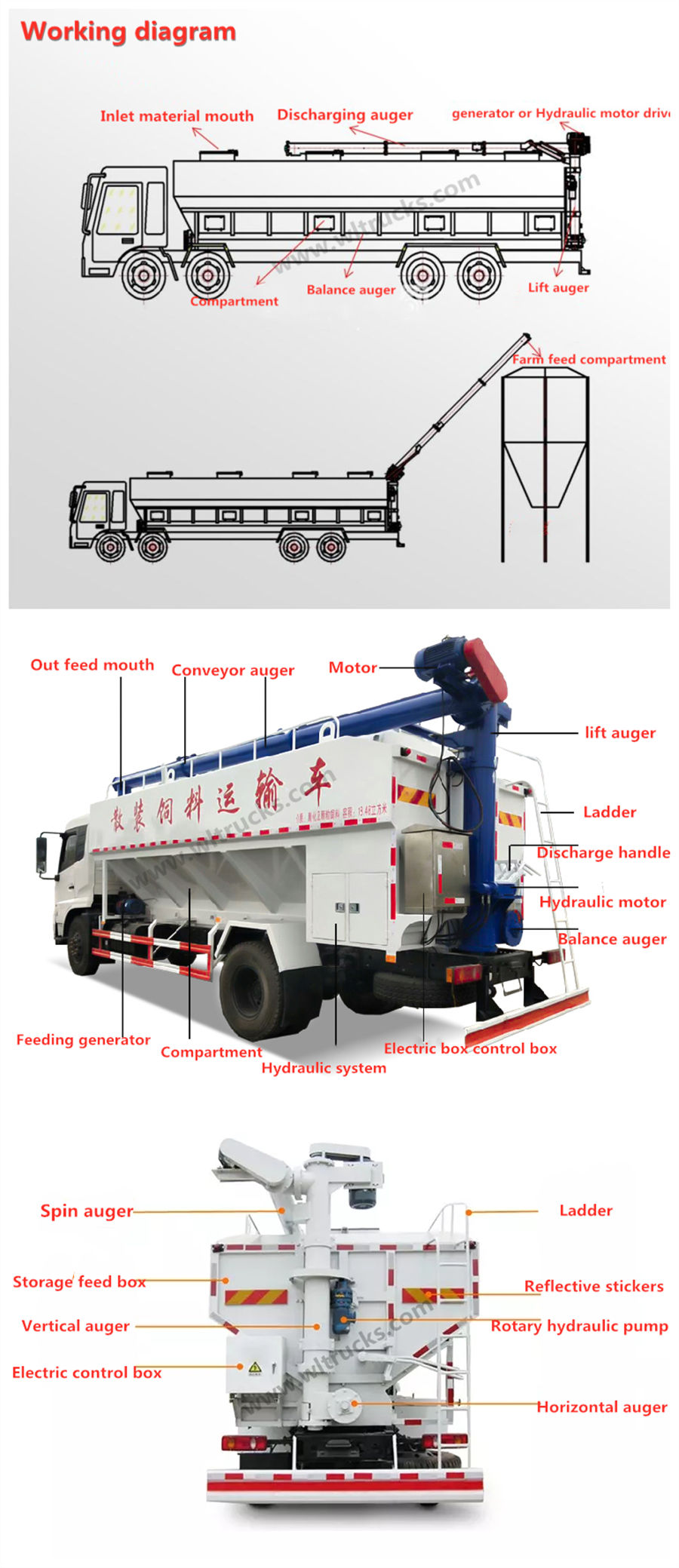

Feed transport truck Composition structure:

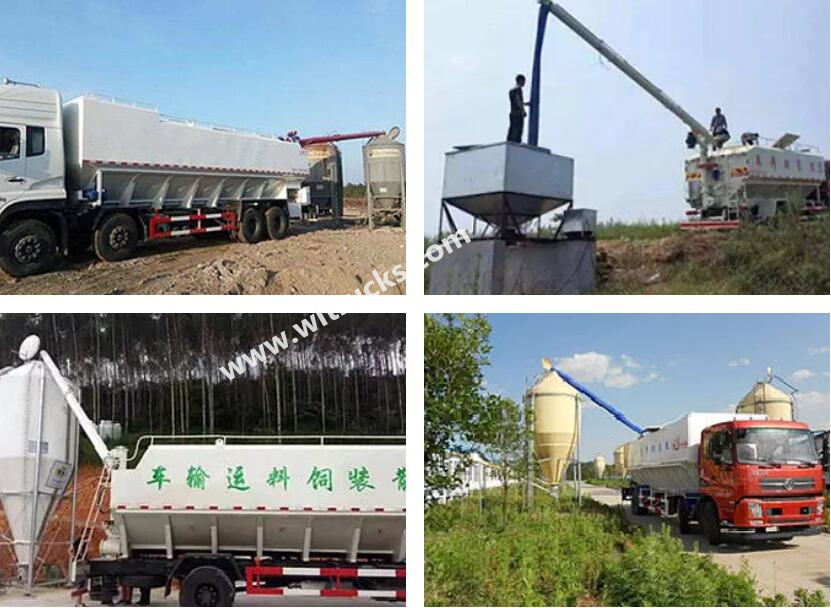

scene working display：
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes

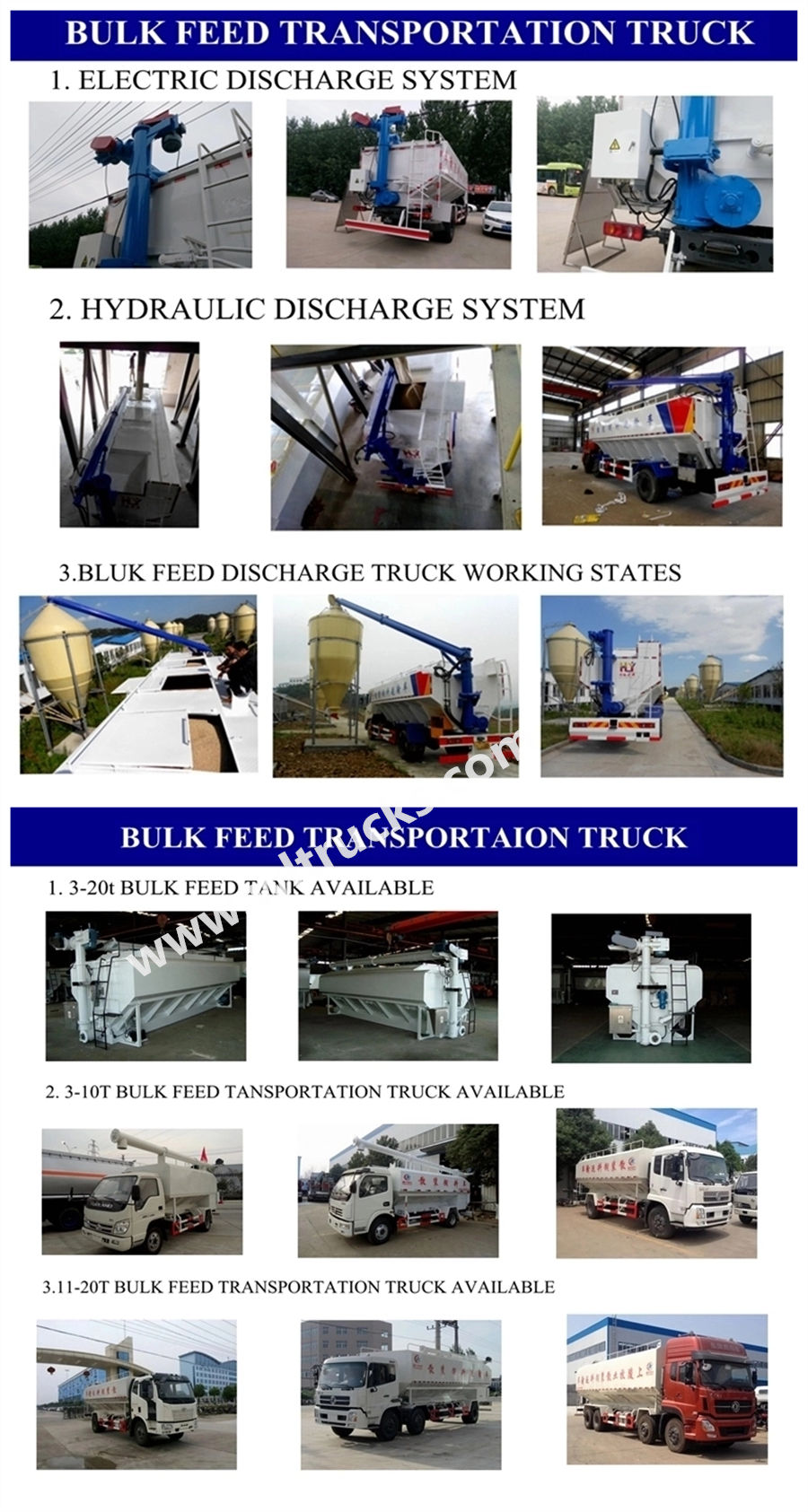

Feed truck catalog：
