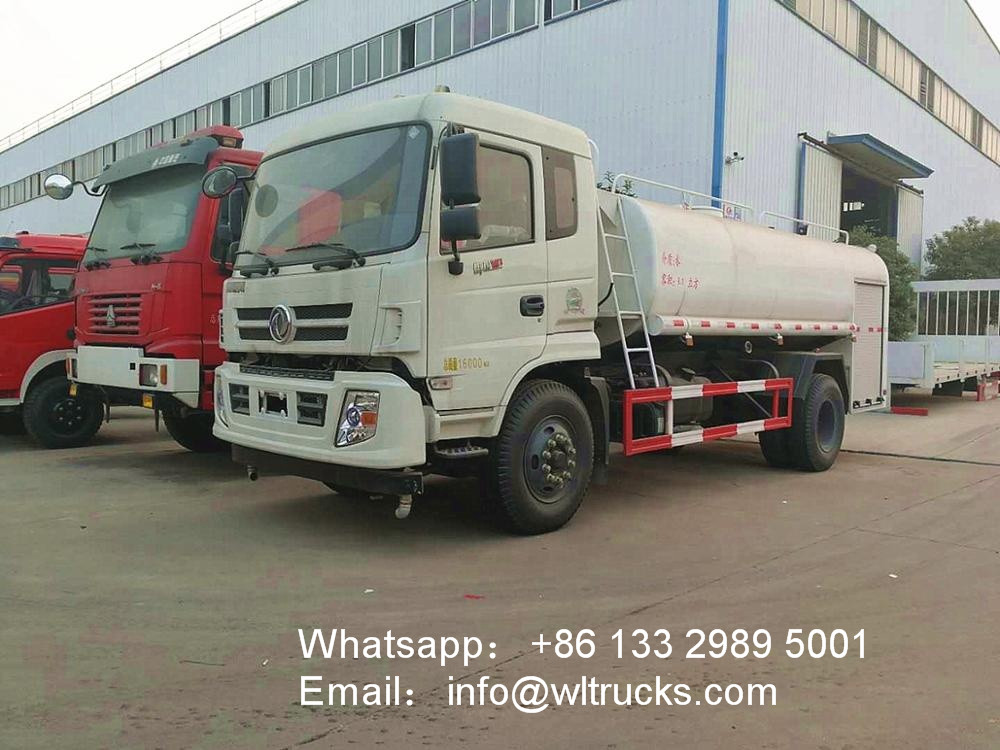

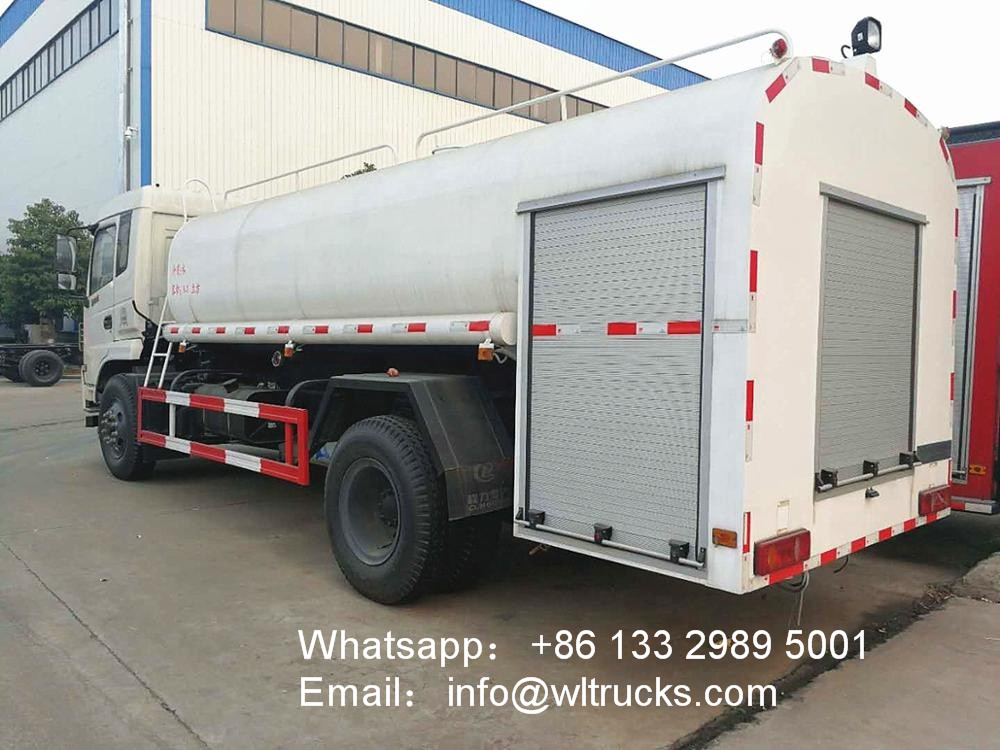

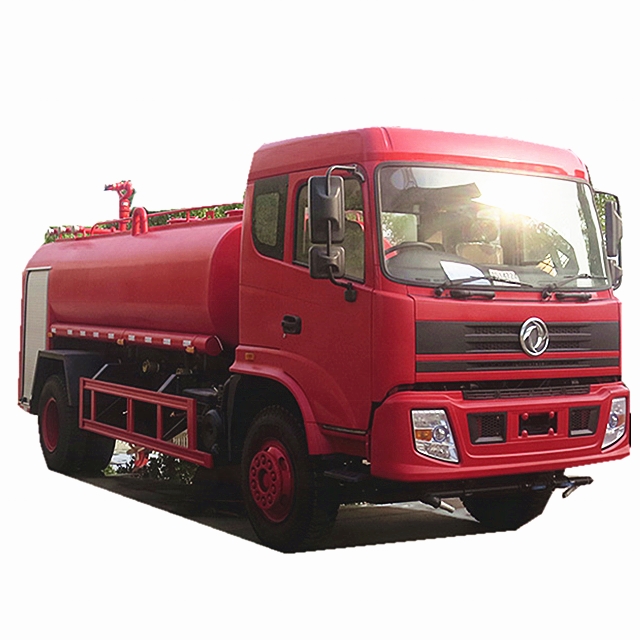

4WD Dongfeng 4×4 fire water truck is modified by Dongfeng 4×4 chassis. The tank has a liquid capacity of 5-12 tons. The hidden tank at the rear of the tank is equipped with a CB10/30 fire pump. The top of the tank is equipped with a PS30 fire water cannon. The fire cannon has a range of more than 50 meters, and behind the tank is a working platform equipped with a green spray cannon.
In addition to the full set of forward and backward sprinkler functions of the sprinkler, the truck also has a fire extinguishing function, which can be used for water supply and water supply in water-scarce areas and can extinguish general fires. It is a full-time fire brigade, the city’s main fire fighting, Forest fire fighting and fire fighting vehicles standing by enterprises and institutions.Optional: front-flushing and post-sprinkling function, optional working platform behind the tank, fire pump can be placed in the tank without equipment box.
Product Specifications:
|
Chassis model
|
EQ1126/EQ1141/EQ1161
|
Engine model
|
Optional Cummins 170, 190, Jade 180 HP engine
|
|
Tire specifications
|
9.00-20; 10.00-20
|
Wheelbase
|
3300,3800，3950, 4500mm
|
|
Emission Standards
|
Country III, China 4, China 5
|
Dimensions
|
7460, 8010, 8200X2460X3290mm
|
|
Environmental protection announcement
|
No
|
Tank volume
|
5 tons to 12 tons
|
|
Power takeoff
|
Sandwich power take-off
|

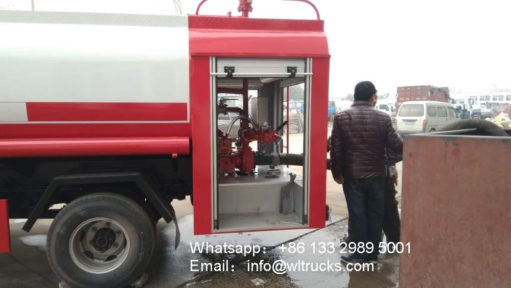

Equipment compartment
|
Three-door structure
|
|

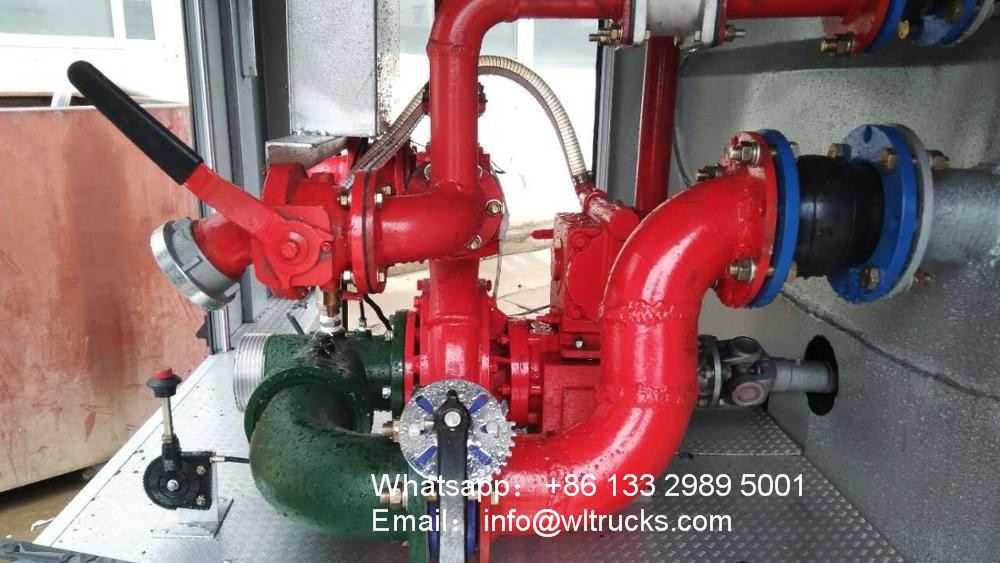

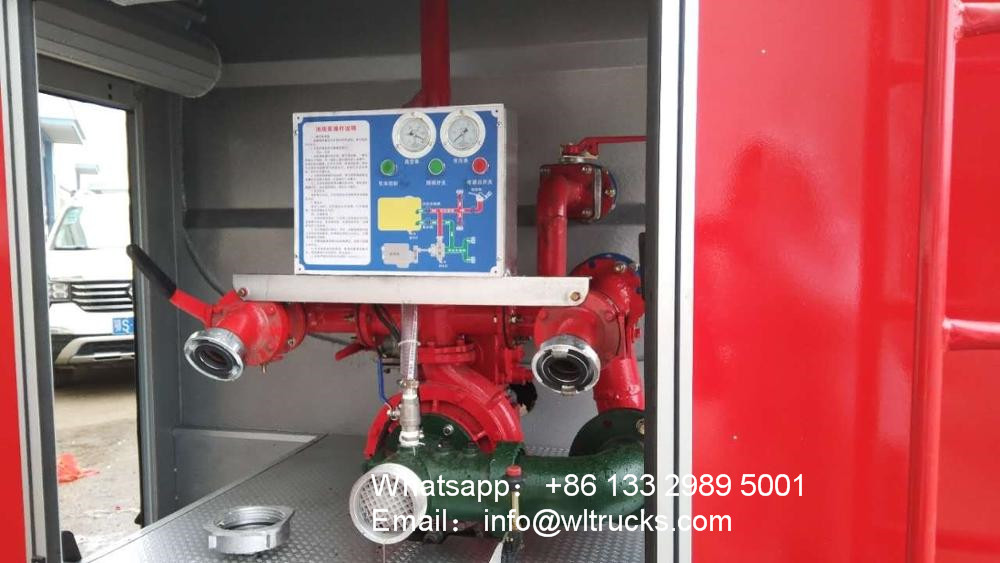

Fire pump
|
CB10/30
|
Fire cannon
|
PS30
|
|
Self-priming height
|
≤ 7m
|
Range
|
≥ 50m
|
Fire equipment table:Sinotruk Howo 12000 liter airport fire water truck detail structure diagram:
1. Equipment layout
| 1 | According to the actual needs of firefighting, according to the firefighting operation procedures, take it nearby. |
| 2 | Use special jigs for anti-corrosion, anti-vibration, anti-shedding and anti-scratch. |
| 3 | Signs are eye-catching, multi-person operation, non-interference. |
2. Equipment and equipment (standard)
| 1 | straw | 150×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF150 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII150/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Foam gun | PQ4/0.7Z | 1 | support | |
| 16 | Foam pipette | 40*2700 | 1 | Piece | |
| 17 | Fire bucket | 1 | Pc | ||
| 18 | Fire extinguisher | 3㎏ | 1 | With | |
| 19 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 20 | Rubber hammer | 1 | Piece | ||
| twenty one | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 24V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
