We produce 45000L to 50000liters underground lpg tank X-ray testing for every welding line and ensure 100% qualified;Hydraulic testing at pressure 2.21Mpa,Gas tightness testing,Sandblasting before painting,Two layers of Anti-corrosion painting before final painting.
China lpg storage tanks Product Description:
1. Storage medium:propane, butane, cooking gas, LPG,Liquid ammoina, Dimethyl ether,Iso-butane, Pentane and etc.
2. Available tank capacity : 5m³~200m³,2ton~100tons,2mt~100mt
3. Manufacturing standards: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008;
4. Optional equipments as follows, lpg pump and motor, lpg compressor, volume flow meter, filling scales and lpg dispenser, ball valves,check valves, non-return valves, glass valve, strainer, by-pass valve and so on.
40000 liter lpg gas tank specification:
| Parameter of 45000L to 50000liters underground lpg tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 50cbm | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 9182*2728*3318mm | Tank Net Weight | 10640kg | |||
| Tank Diameter | 2700mm | Loading Capacity | 19950kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-80 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

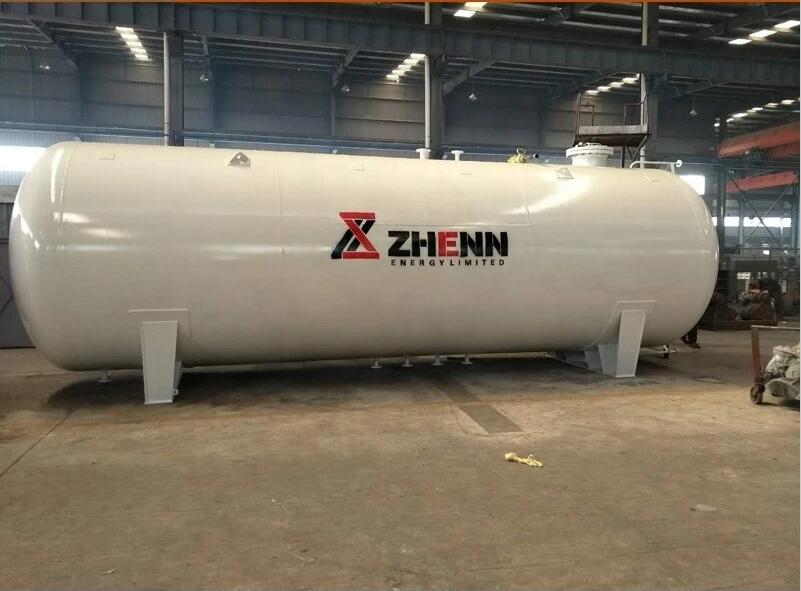

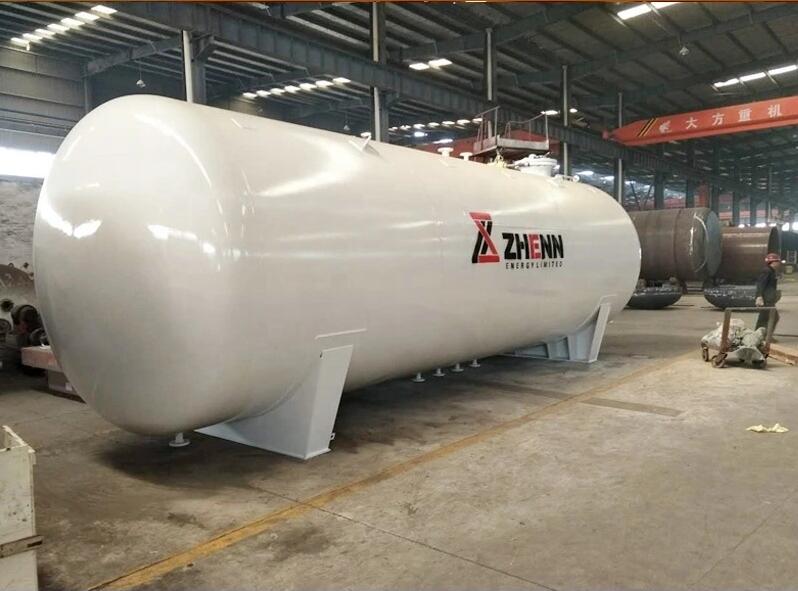

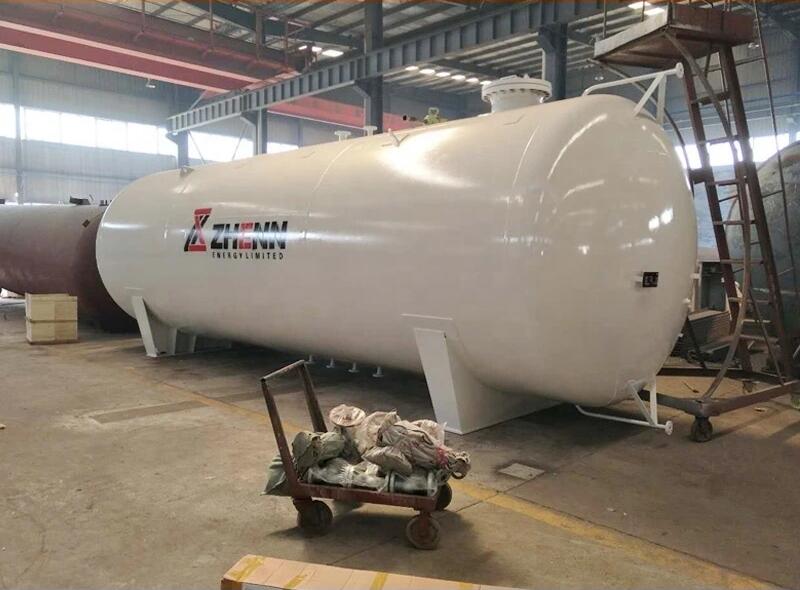

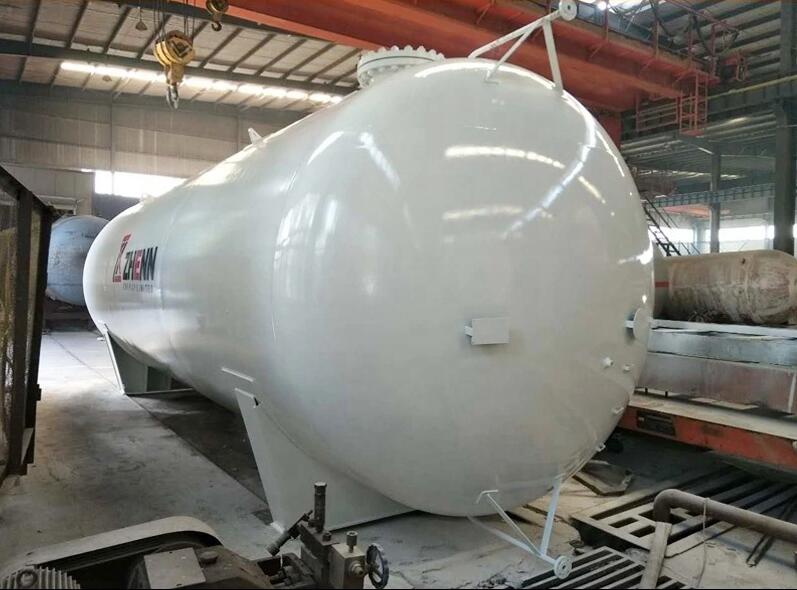

ChengLi Lpg tanks details:

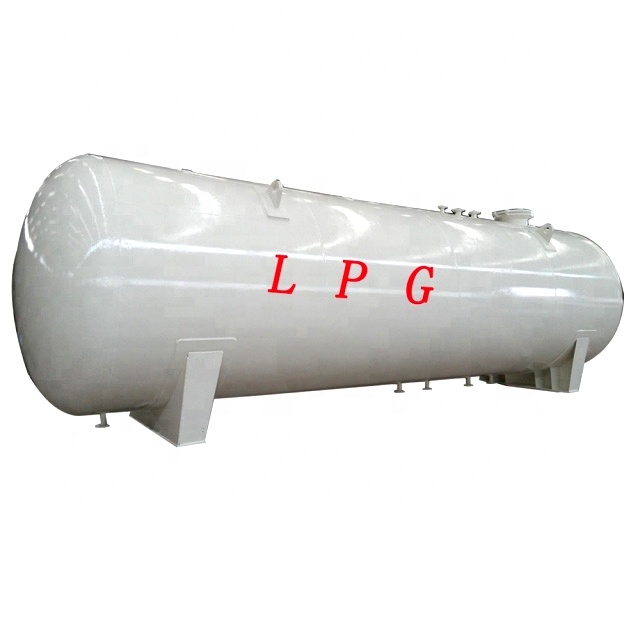

Lpg storage tanks type exhibition：
lpg tanker Production Process：
We can supply whole package solution of lpg station building as follows
Horizontal 30tons LPG gas storage tanks
Two sets of Ex-plosive LPG pumps and motors
One set of LPG compressor
One set of flow meter
One set of air compressor
Gas leakage detector
DN25/DN50/DN80/DN100 globe valves
DN25/DN50/DN80/DN100 ball valves
DN50/DN80/DN100 Pneumatic emergency shut off valve
DN50/DN80 non-return valve
DN50 strainer
DN50 sight glass
FAQ:
Q1: What is your product name?
A: 25tons lpg gas storage tank.
Q2: What size of lpg gas storage tank can you supply?
A: We can supply lpg gas storage tank from 5cbm to 200cbm,the most popular size is 50cbm, 60cbm, 80cbm, 100cbm and 120cbm.
Q3: What’s the production standard of your lpg gas storage tank?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province, central China, which is famous for special vehicles. You can take high speed train to Wuhan railway station, Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the lpg gas storage tank after paying deposit?
A: Only 7 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: Can you supply installation service for lpg gas storage tank and station?
A: We can supply all equipments needed for lpg gas station, such as lpg pump and motor, lpg compressor, lpg dispenser, cylinder filling scales, flow meter, pipeline and all kinds of valves.
