products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
water tank trailer Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

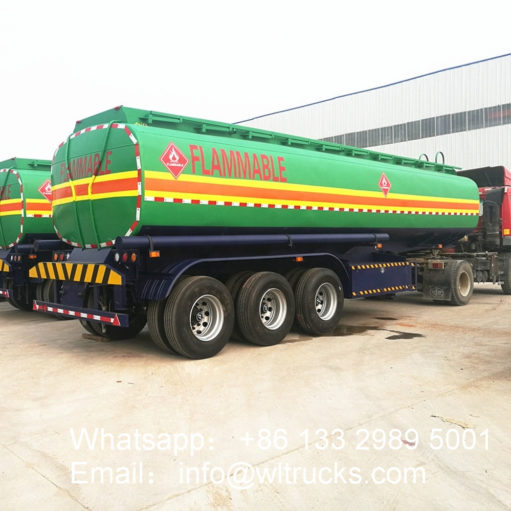

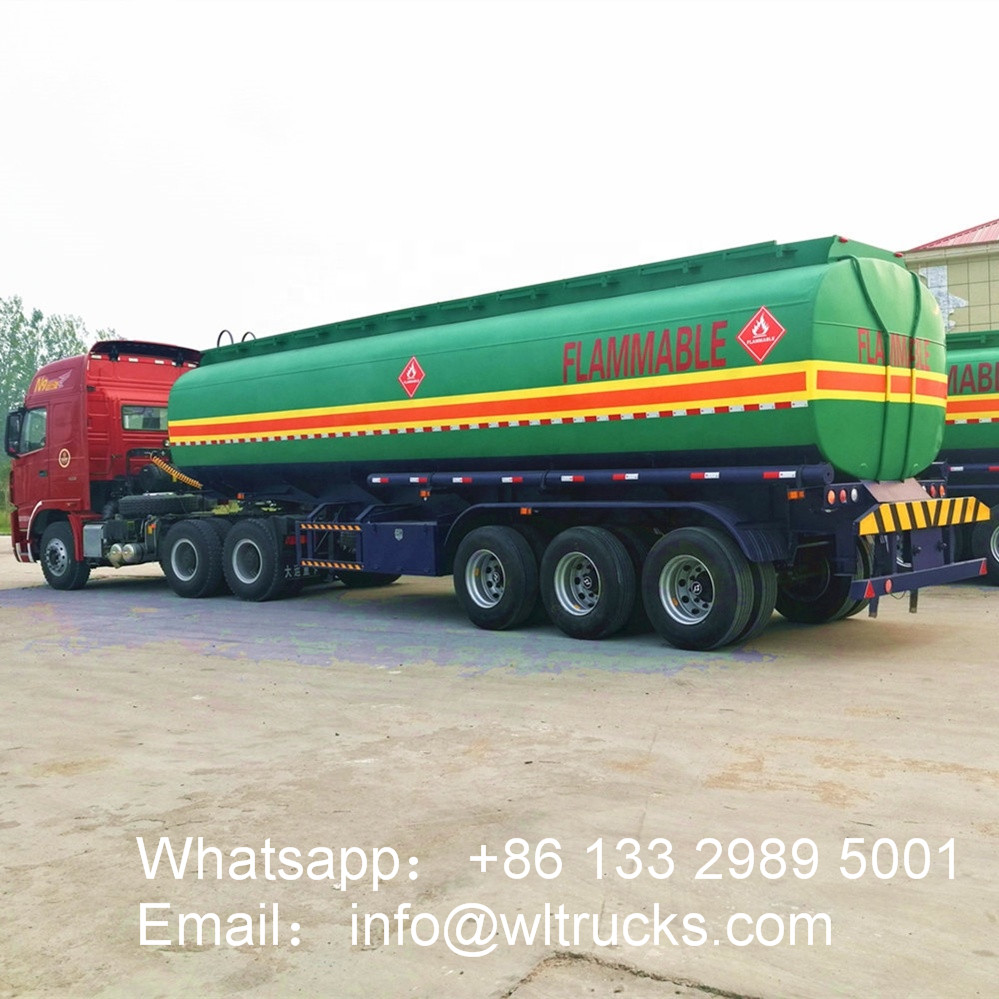

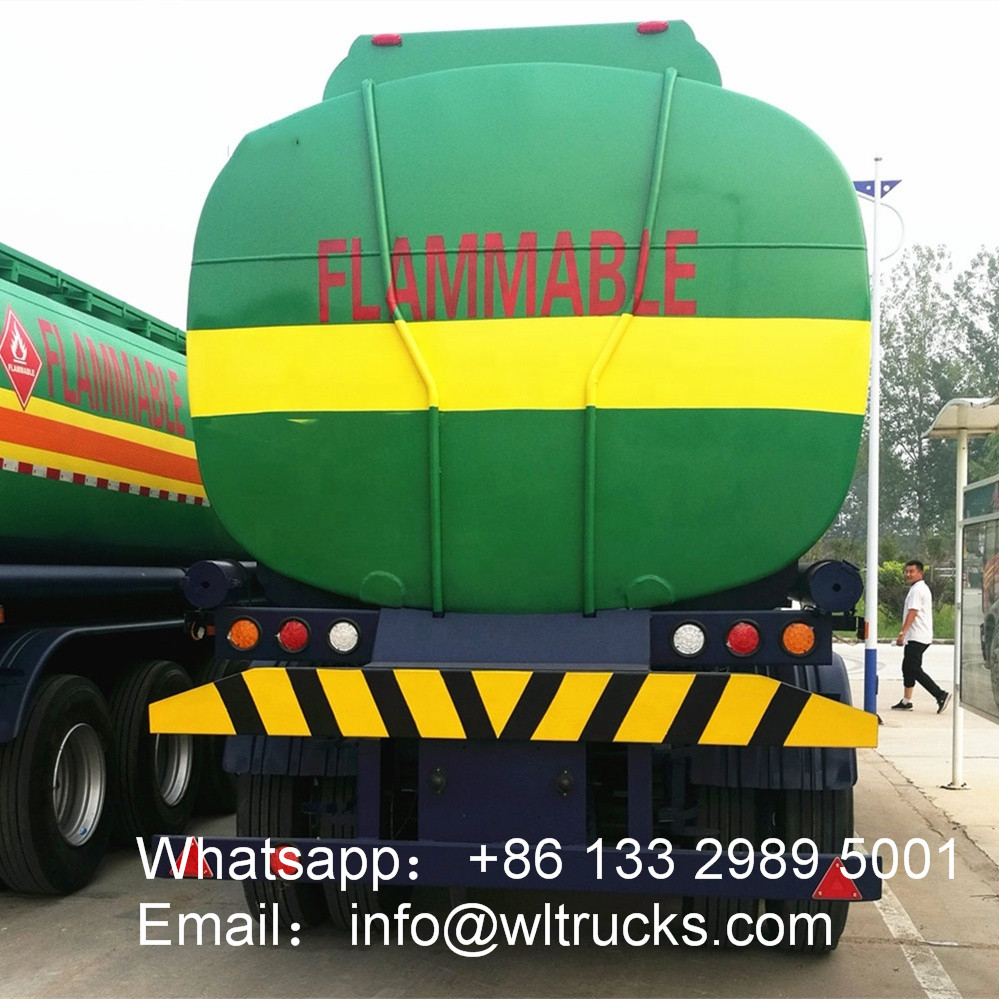

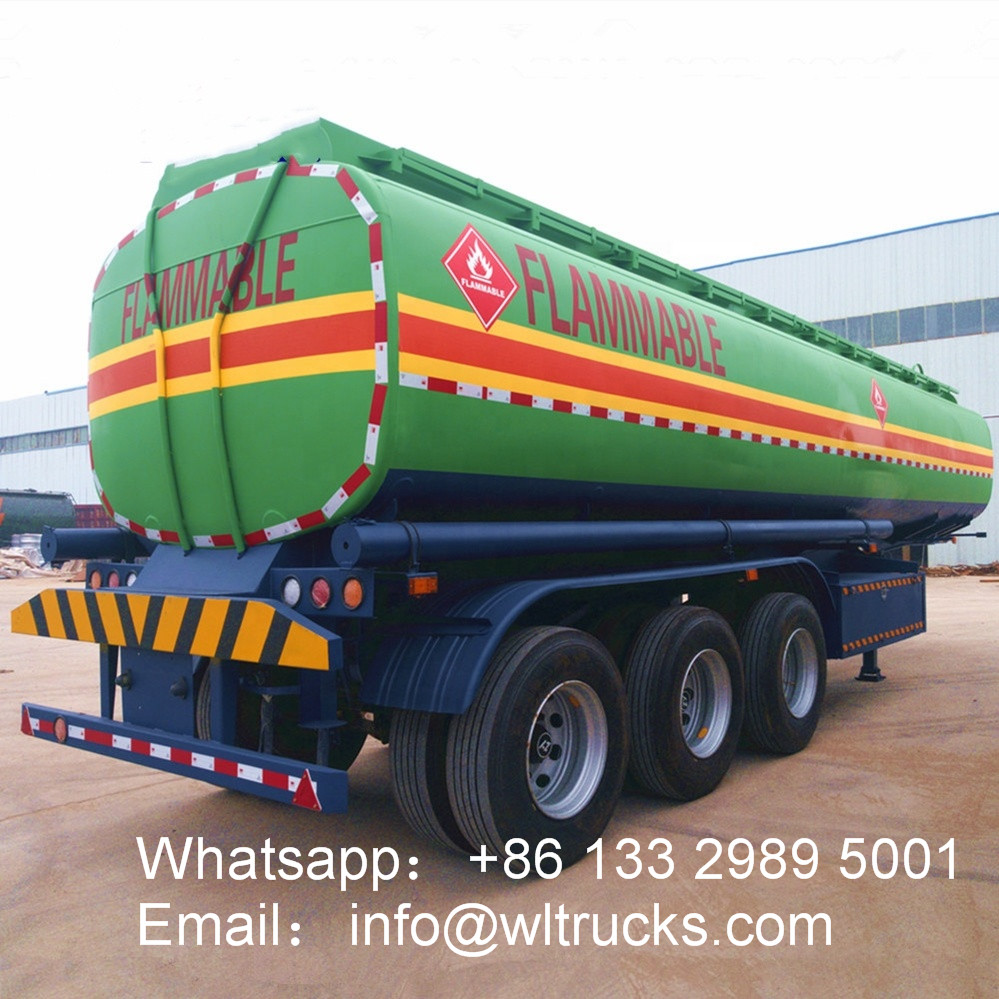

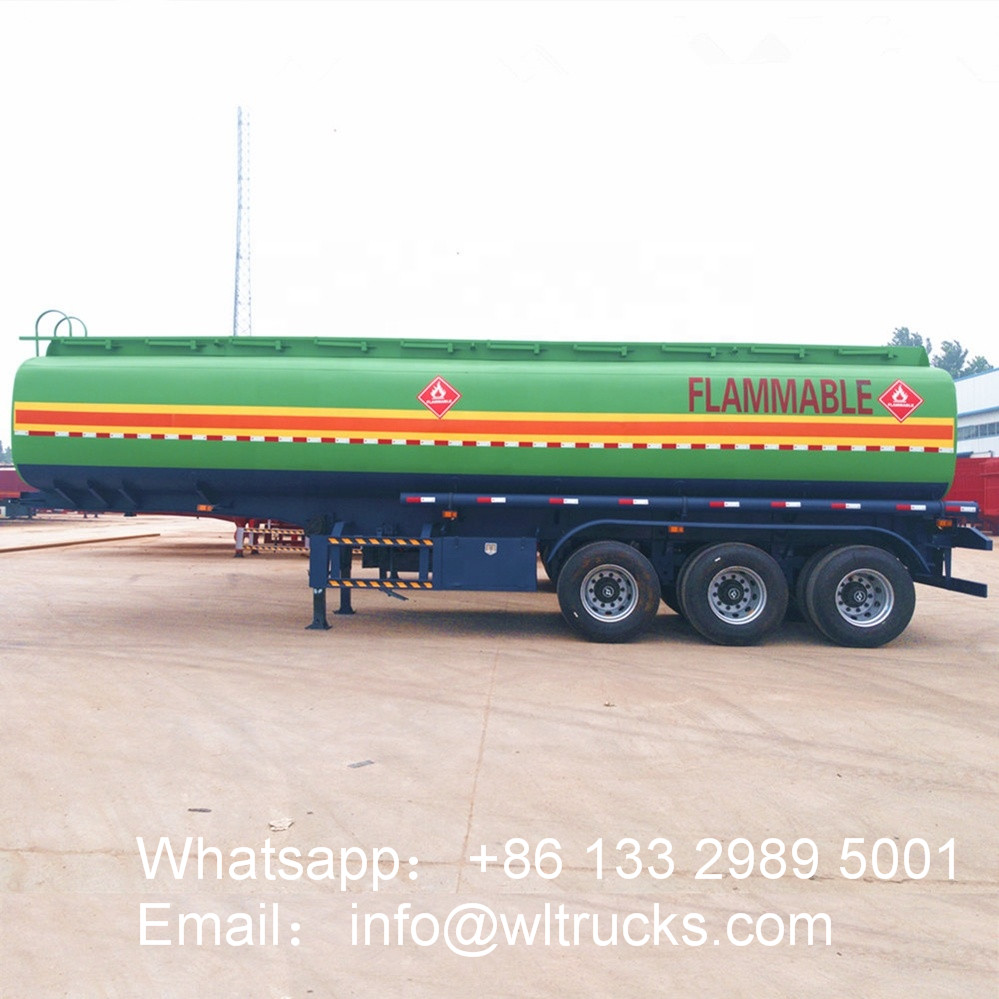

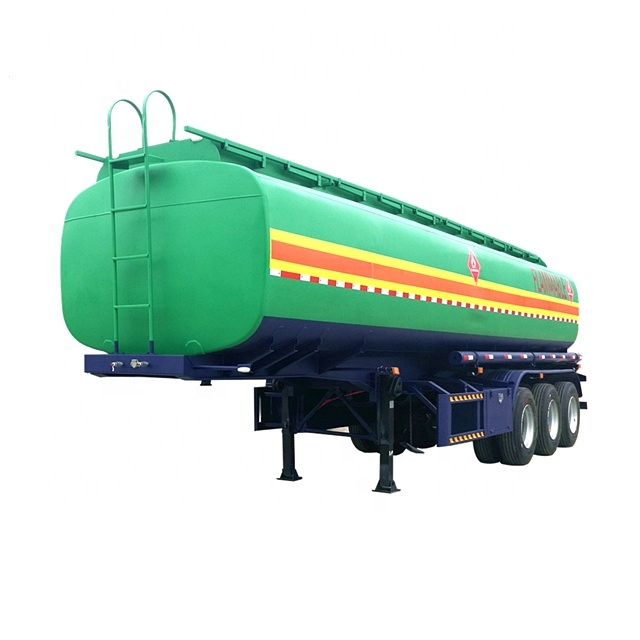

3 axle 40000 liter to 65000 liter water bowser trailer Specification:
| Tare weight | 9460kg |
| Overall Length | 4000mm-10600mm |
| Overall Width | 2100-2480mm |
| Overall Height | 2400-2980mm |
| Volume | 10000L-65000L |
| Axle | K-Hitch ADR axle, 3 axles |
| Suspension | K-Hitch ADR with 9 leaf springs |
| Kingpin | JOST 2inch or 3.5inch,assembly type |
| Landing Leg | JOST brand, two speed,by manual |
| Tire | 11R22.5 tubless 10 studs |
| Compartment No. | 2 compartments,isolated |
| Top filler hole | 1 or 2 as your required |
| Top handrill | Air operated type with Collapsible handrill |
| Pump and Motor | Quality pump and motor |
| Valves and outlets | 1x 4inch and 1x6inch outlets fitted with handy butterfly valve, 1x6inch drill out flange with handy butterfly valve at the bottom of rear; 2X8 inch bottom flanges with handy butterfly valve in the middle right and left; 1x 6 inch front flange with handy butterfly valve; 3 x 3inch air operated top spray head, two rear gravity fan feed by air-operated butterfly valve each, air-operated rear bottom dribble fitted with flanges in both ends, top middle spray head fitted with separate air operated butterfly valve. Fitted with hydraulic pump and motor; |
| Lightings | Orion brand ADR LED side marker; rear combination lamp and rear small lamp on the tanker; Wire: ADR required thickness of electronic 7-pin wire and 7-pin |
| Finshing | flap discs jobs and Sandblasted ; 2 times of Primer and Painted in 2-Pack to required color; inside of primer; |
| Toolbox | 1 pcs of 600×900 Toolbox and 2 pcs of hose tray |
| Mud Guard | Spring Tension Rubber over Tri Group |
| Others | Road train Spec. Available Brackets for tanker body mounted rear lamp and beacon as well as Road train signs |
small water tank trailer New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
water trailer Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
