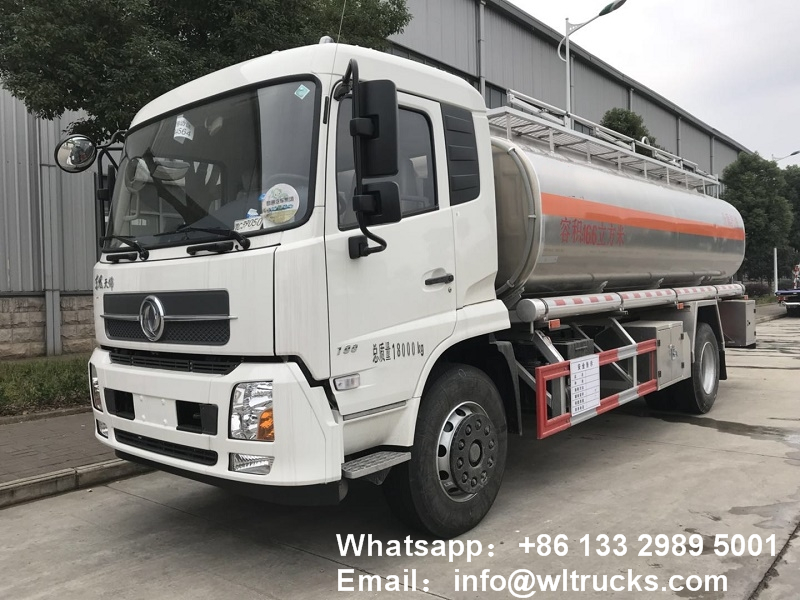

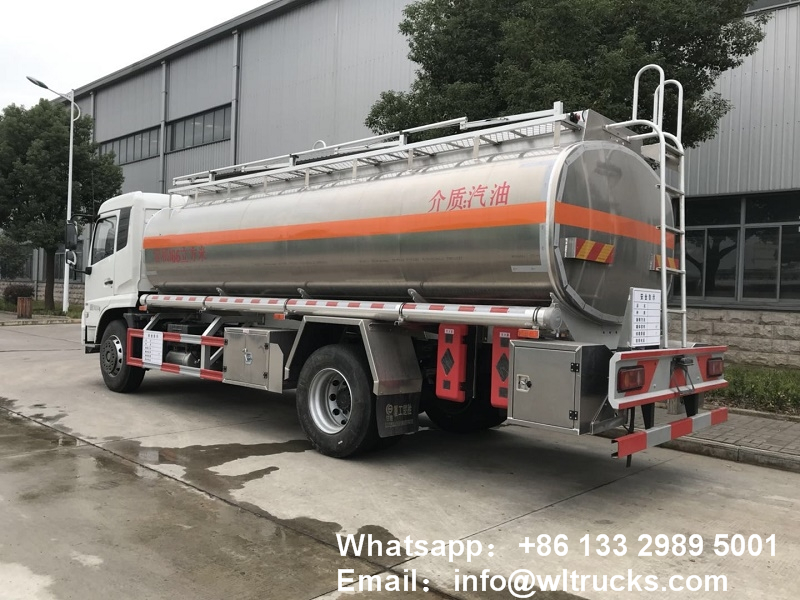

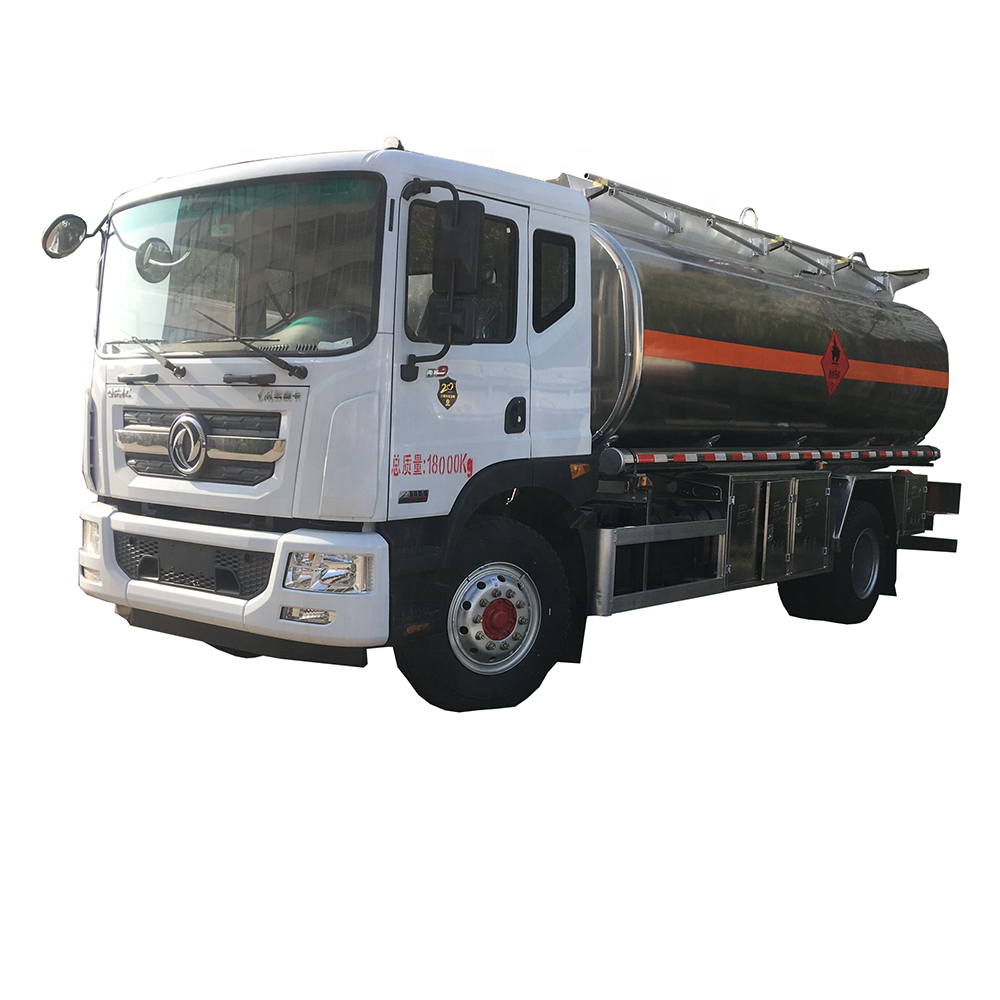

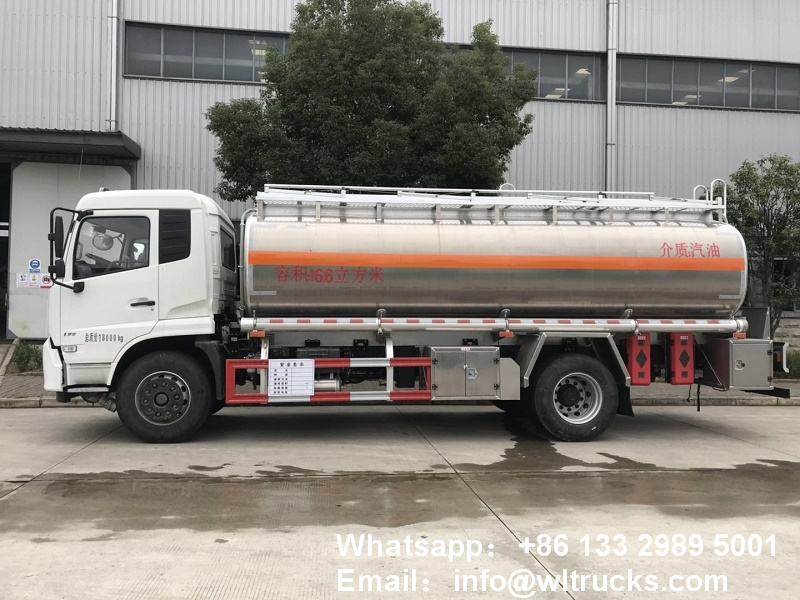

Dongfeng 16000liters Aluminum alloy fuel tank truck
Dongfeng 16000liters Aluminum alloy fuel tank truck Chassis configuration: Dongfeng Tianjin row semi-luxury cab, wheelbase 4500mm, Cummins 190 horsepower country five engine, Dongfeng 6-speed gearbox, 295 vacuum tires, 6 tons front axle, 9 tons rear axle, original air conditioning, ABS, limited Speed device, front disc brake.
Dongfeng 16000liters Aluminum alloy fuel tank truck Top configuration: made strictly according to the announced size, volume 16m3, tank thickness 6mm, head 6mm thick, upper tonnage: 11.07KG, medium: gasoline. Made of high-quality aluminum alloy plate, with self-priming and self-draining pump, which can be pumped in and out, with European standard tank mouth, subsea valve.

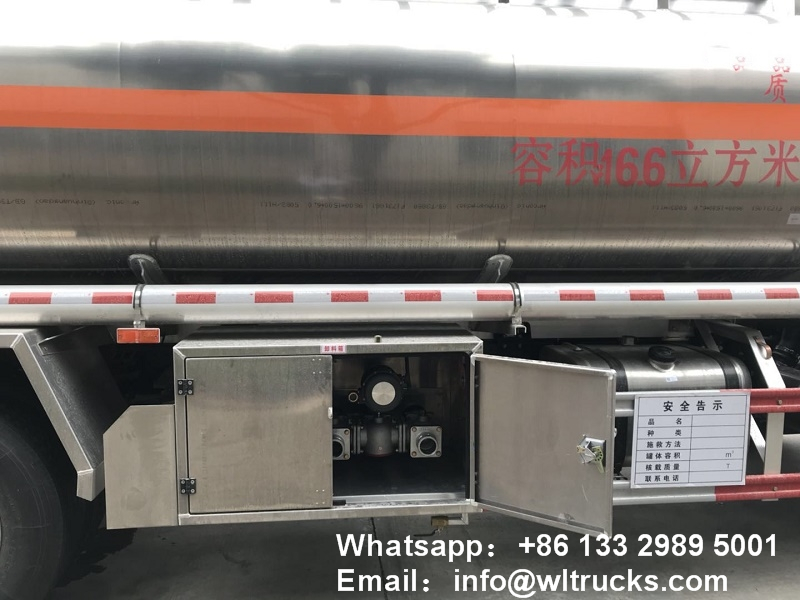

Equipped with Zhengxing large-flow tanker (the tanker is hung underneath), a 15-meter automatic return reel and a fuel gun, with a full set of European standards (one bottom mount, one oil and gas recovery, two anti-overflow probes and probe seat ).
Equipped with a fire-proof cap, two oil pipes of equal length of two inches in diameter, two fire extinguishers, the rest are standard. Paint: silver pink, with reflective strips, reflective tape, with safety signs, three “flammable liquids”
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
【The main technical parameters】 | |||
product name | Aluminum alloy fuel truck | Product number | Aluminum alloy fuel truck |
Total mass (Kg) | 18000 | Rated load mass (Kg) | 11070 |
Curb weight (Kg) | 6735 | Dimensions (mm) | 8850x2480x3200, 3400 |
Number of passengers in the cab | Cargo compartment size (mm) | xx | |
Wheelbase (mm) | 4500,4700,5000 | Maximum speed (Km / h) | 80 |
Configuration | 1. The vehicle is suitable for dangerous goods transport vehicles, category number: 3, the type of vehicles transporting dangerous goods is: FL type, equipped with speed limiting device, speed limit 80km / h. The corresponding relationship between wheelbase / rear overhang (mm): 4500/2920, 4700/2720, 5000/2420. The effective volume of the tank is 16.6 cubic meters, and the external dimensions of the tank (long height) (mm): 6200? 350? 500. No upper walkway is optional on the upper part of the tank; arc fender is optional; the spraying position of the text can be changed. The tool box can be installed on the left or right side of the frame and the installation position can be changed back and forth. 2. The side / rear protection material is Q235, the side protection bolt is connected, the rear protection is welded, the cross-sectional size is 120? 0mm, and the lower edge is 500mm above the ground. 3. Optional cab is installed with the chassis; only the front of the muffler, speed limit device, front wheel disc brake and radial tire chassis are selected; a driving recorder with satellite positioning function is installed; ABS model / manufacturer: 3631010-C2000, 4460046440 / East Coquenor Commercial Vehicle Brake System (Shiyan) Co., Ltd., WABCO Automotive Control System (China) Co., Ltd. | ||
【Chassis technical parameters】 | |||
Chassis model | DFH1180BX5V | Fuel type | Diesel |
Tire specifications | 10.00R20 18PR, 295 / 80R22.5 | Number of tires | 6 |
Emission Standards | GB17691-2005 National V, GB3847-2005 | ||
engine model | Engine manufacturer | Displacement (ml) | Power (Kw) |
ISD210 50 ISB210 50 ISB190 50 |
Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. |
6700 5900 5900 |
155 155 140 |
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
