Dongfeng 10000liter to 12000liters sewer cleaning sewage suction truck Specification:
Dongfeng 10000liter to 12000liters sewer cleaning sewage suction truck Chassis configuration: Dongfeng Tianjin cab, Cummins 170, 190, 210 horsepower engine, 8-speed gearbox, 900 tires. High-pressure function: 4 cubic meters of clear water tank as standard, Tianjin Tongjie high-pressure pump, 24MPa, 270L / min, 60m double-layer steel wire high-pressure pipe, folding hydraulic reel, self-cleaning function of pipe, 10 stainless steel dredging nozzles .
Sewage suction function: standard equipped with 8 cubic meters of sewage tank, 6-8 mm thick tank, standard equipped with SK20 water circulation vacuum pump, dual hydraulic cylinders for lifting and unloading of the tank, hydraulic opening of the tail gate, and 2-3 self-flow ports at the rear Equipped with one 8-meter suction pipe.
Optional configuration: optional high-pressure pump imported from Germany or Italy, optional Weilong vacuum suction pump, optional 375 engine with SK30 water circulation vacuum suction pump.
Dongfeng 10000liter to 12000liters sewer cleaning sewage suction truck Product parameters
| Cabin | Driving type 4×2, single row | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7500×2300×2850 |
| Wheel base (mm) | 4500 | |
| Wheel track (front/rear) (mm) | 1960/1860 | |
| Approach/Departure angle(°) | 28/32 | |
| Weight in KGS | Tare Weight | 5340 |
| payload | 6025 | |
| Front axles loading capacity | 2700 | |
| Rear axles loading capacity | 5000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | Cummins |
| Horse Power(HP) | 180HP | |
| Emission standard | Euro V | |
| Gearbox | 6 forwards & 1 reverse | |
| Steering | Left hand drive | |
| Tire | 9.00R20, 6 tires with one spare | |
| Sewage Tank | ||
| Tank volume | 12000Liters | |
| Tank material | 6mm carbon steel Q235 | |
| Tank size | 4900x1600mm | |
| Vacuum Pump | Chinese Vacuum Pump or Italy Vacuum Pump | |
| Sewage suction pipe | 8M | |
| Main Performance | Suction time ≤ 5min, effective suction range ≥ 8m |
|
| Other equipment | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Painting | Customized painting color and logo as required. | |
Dongfeng 10000liter to 12000liters sewer cleaning sewage suction truck Working parameter
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist | ||
Dongfeng 10000liter to 12000liters sewer cleaning sewage suction truck Working parameter New craft
Dongfeng 10000liter to 12000liters sewer cleaning sewage suction truck Optional configuration

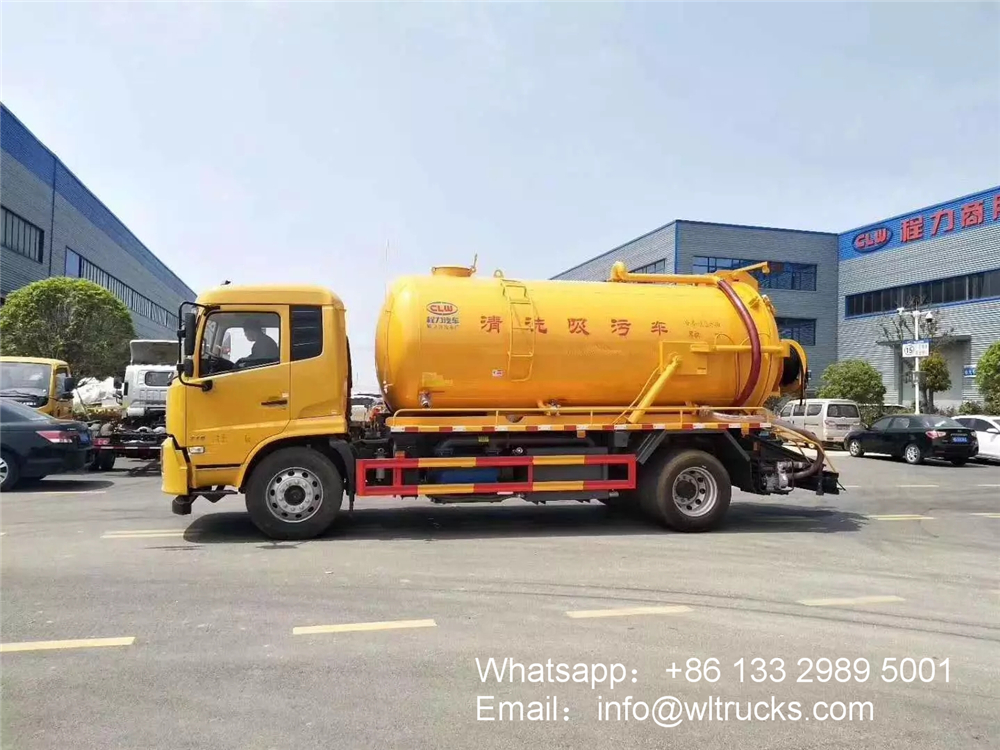

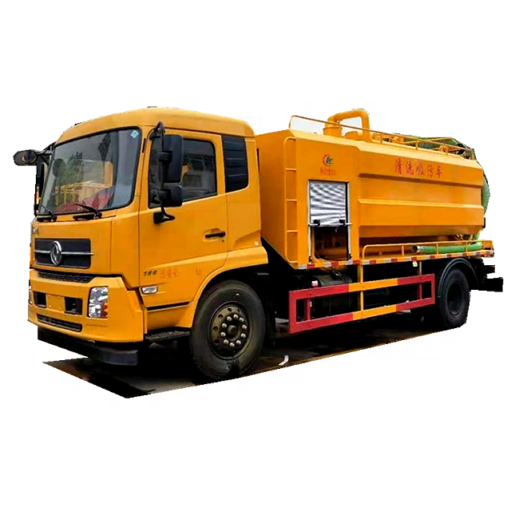

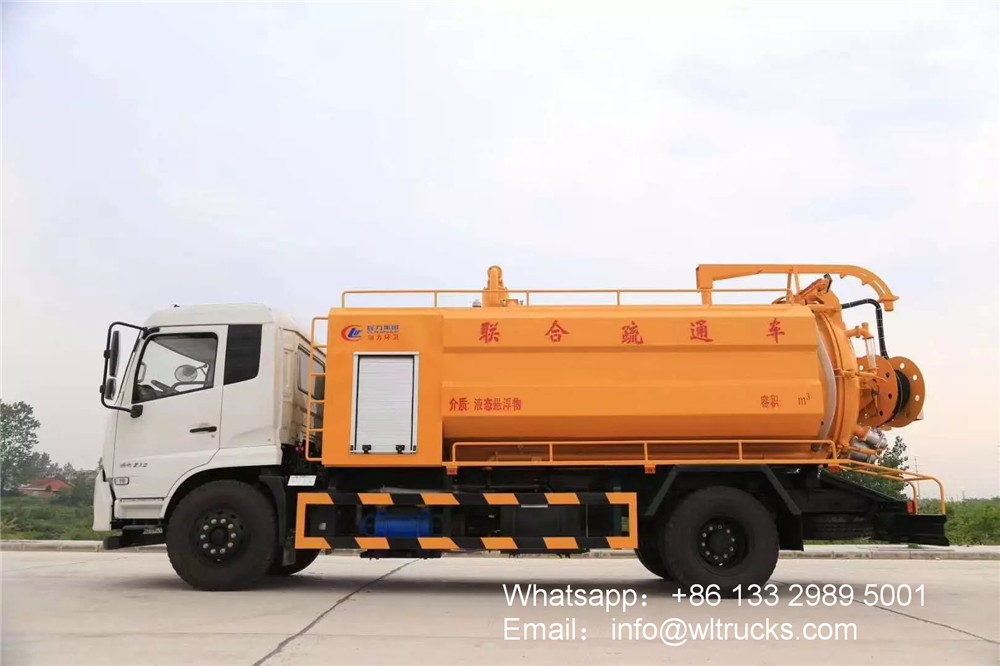

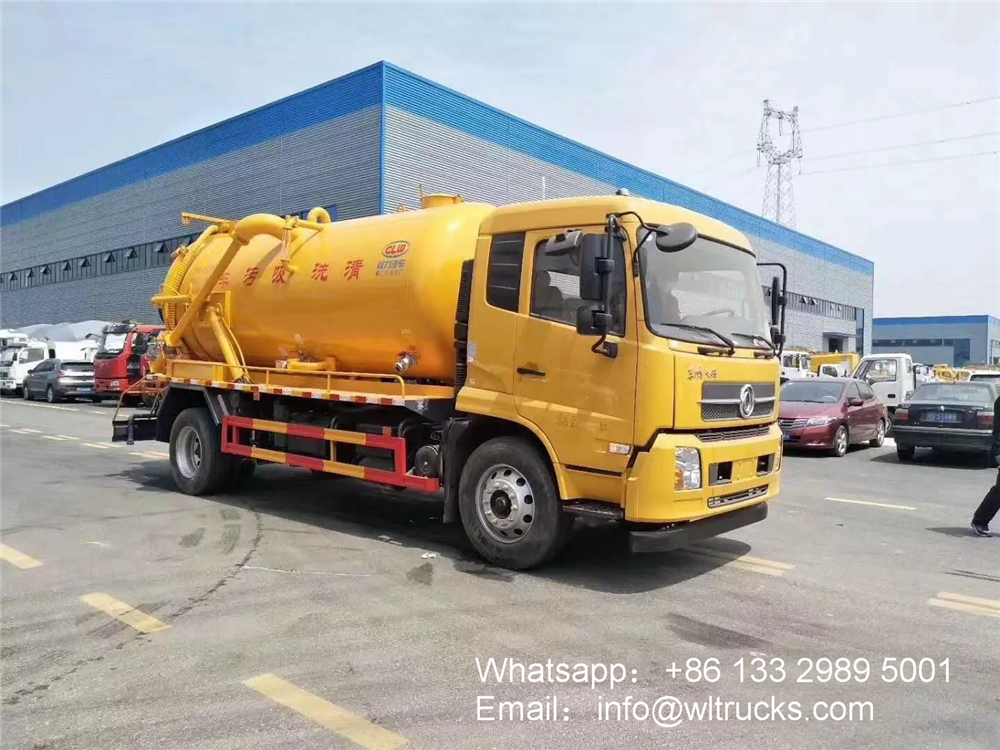

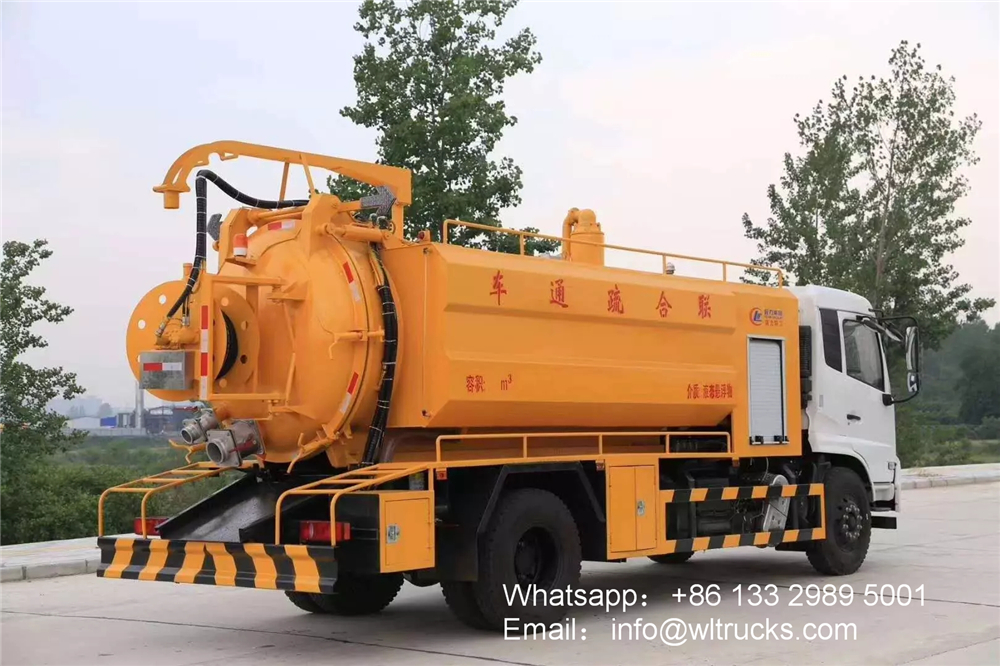

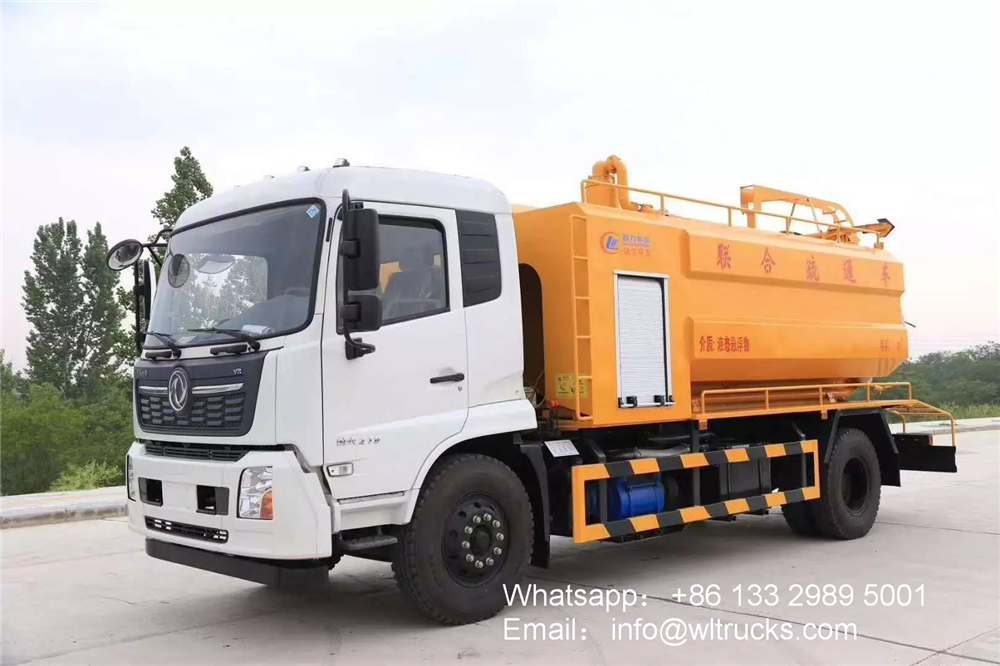

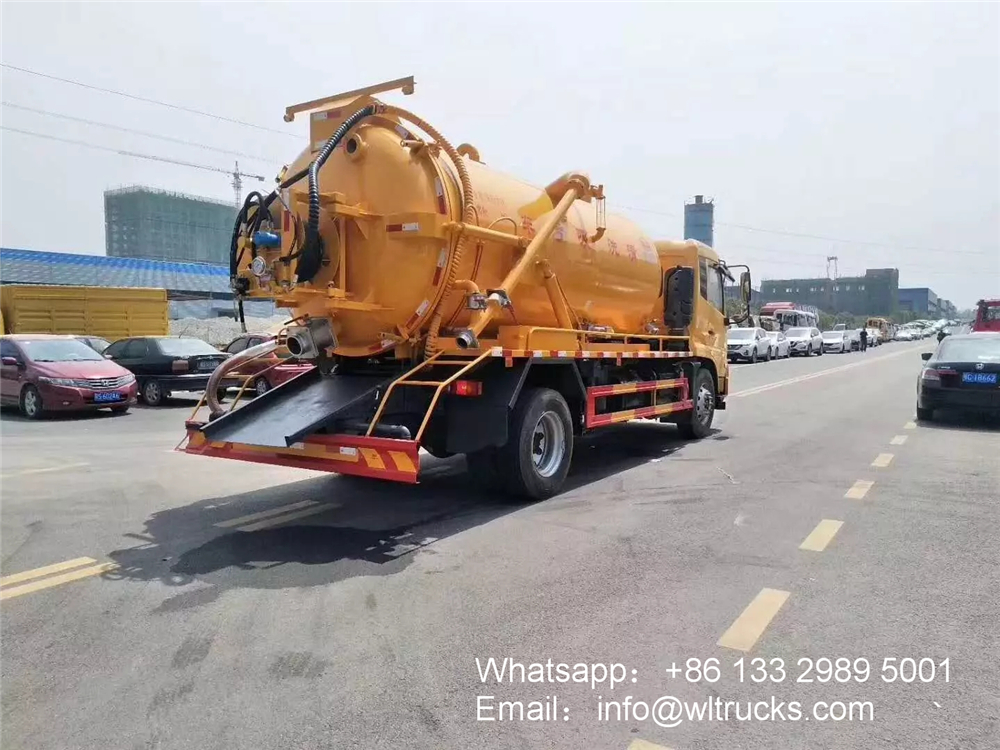

Dongfeng 10000liter to 12000liters sewer cleaning sewage suction truck Detailed image
