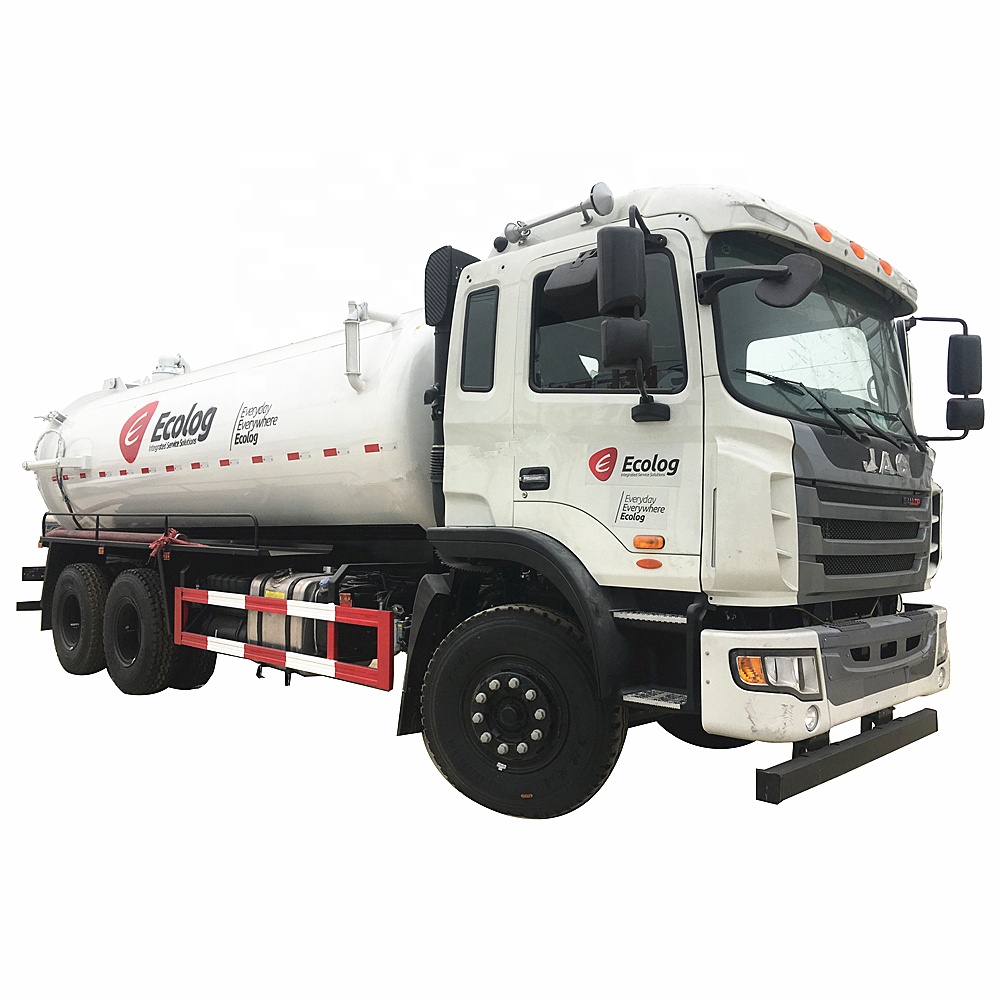

10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Specification:
10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Chassis configuration: 6×4 rear dual-axle drive, new JAC Gelfa K6 luxury full-floating cab, Yuchai 240-horsepower engine, Fast 8-speed gearbox, 1000 steel tires, airbag shock absorber seat, 10 tons double rear axle , ABS.
10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Bodywork configuration: cylindrical tank with a volume of 16-18m3, two anti-wave plates in the tank, dual hydraulic cylinders for lifting and unloading, tailgate hydraulic opening, manual locking device, standard SK-20 water ring vacuum pump, and sewage valve 3 (1 pneumatic valve), 1 suction pipe.
10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Product parameters
|
product name
|
6X4 JAC 16000 liter to 18000 liters sewage suctiont truck
|
Chassis model
|
CLW5203GSSD3
|
|
Actual volume ( cubic )
|
16-18
|
Total mass (kg)
|
19800
|
|
Engine horsepower
|
240
|
Rated load mass (Kg)
|
1133
|
|
Engine name
|
Yuchai
|
Emission Standards
|
Euro 5
|
|
Dimensions (MM)
|
10220×2400×2950
|
Fuel type
|
Diesel
|
|
Number of tires
|
10
|
Tire specifications
|
11.00-20
|
|
Wheelbase (MM)
|
3450-1430
|
Maximum speed (km/h)
|
90
|
|
Front track
|
1503,1485,1519,1595 |
Rear track
|
1494, 1516, 1540
|
|
Performance profile
|
sewage suction truck adopts the domestic technology-leading special suction pump, which has large suction force and long suction stroke. It is especially suitable for the suction, loading and unloading of sludge in the sewer, especially for sucking sewage mud, silt, gravel, Large objects such as bricks, and small water content. Pumping full (soil) tank time: ≤ 5min, suction: ≥ 10m. Self-priming and self-discharging, long life, fast working speed and convenient transportation. There are two ways of suction trucks: pressurized discharge and self-flow discharge. The suction truck can self-prime and drain, the back cover can open and self-unload the impurities in the tank, and the suction efficiency is high, self-priming, self-discharging and direct irrigation. Features, fast and easy to operate. Suitable for use in large, medium and small towns sanitation and municipal departments. | ||
|
Dedicated configuration
|
sewage Suction truck body can be: carbon steel, stainless steel. The special part of the suction truck consists of a power take-off, a drive shaft, a special vacuum suction pump, a high-pressure forming manure tank, a water-gas separator, an oil and gas separation, a multi-way reversing valve, a boom, a suction gun, and a pipe network system. It is equipped with a vacuum pressure gauge, a stained window (tube), and a hand washing device .
|
||
10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||

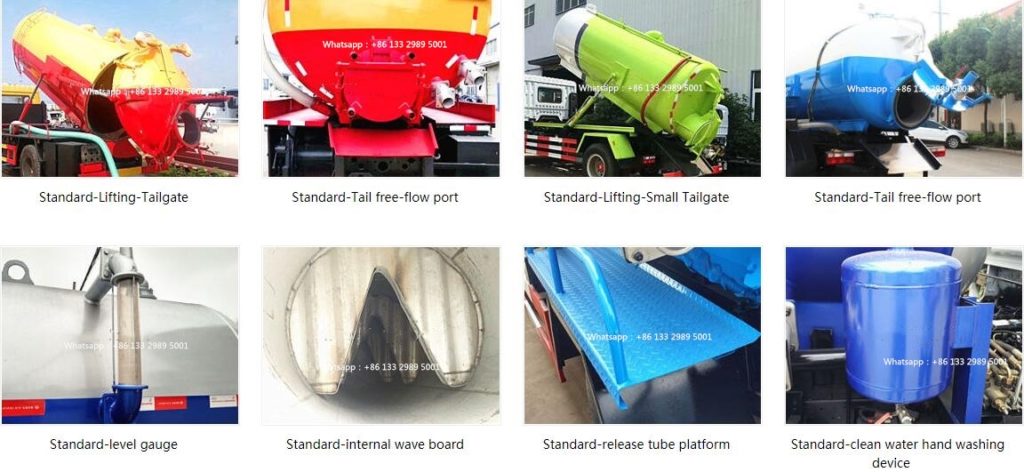

10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Working parameter New craft

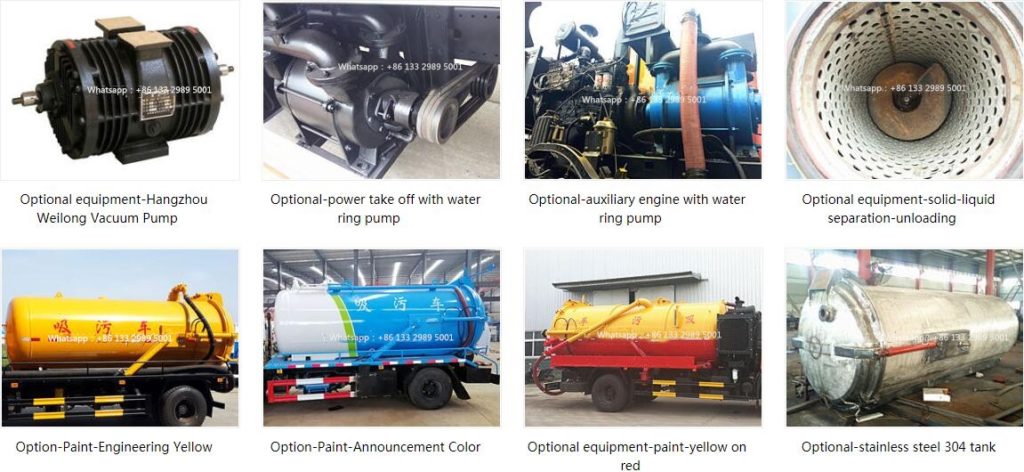

10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Optional configuration

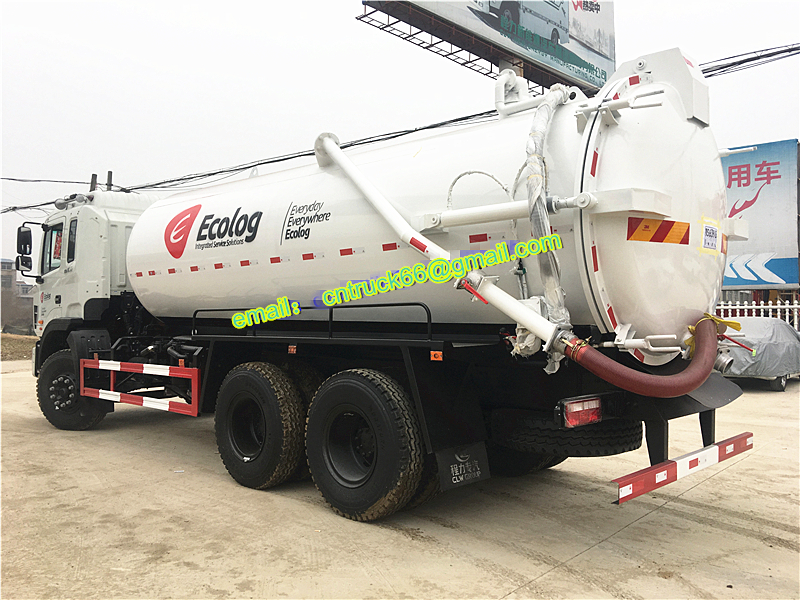

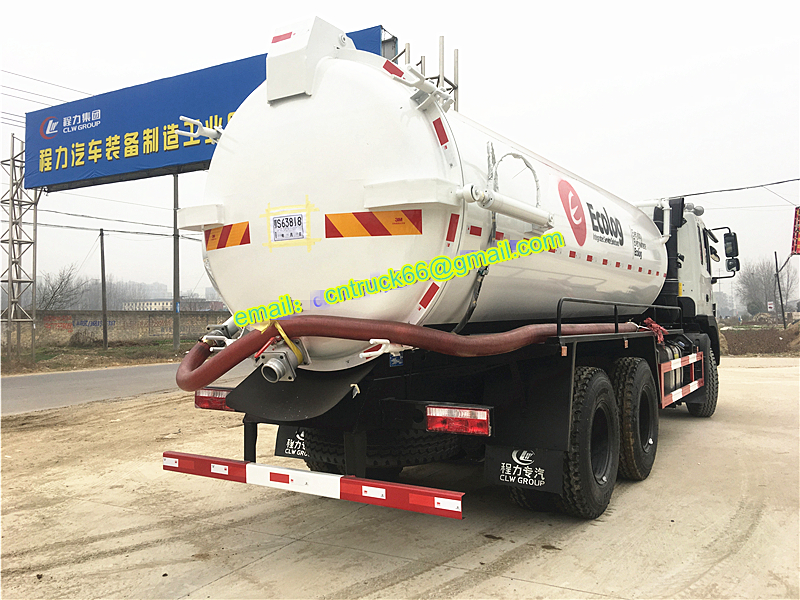

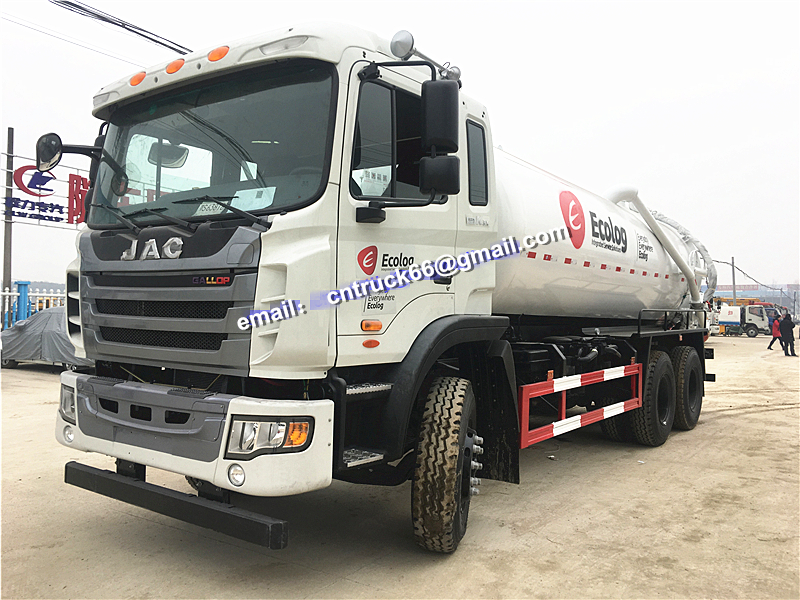

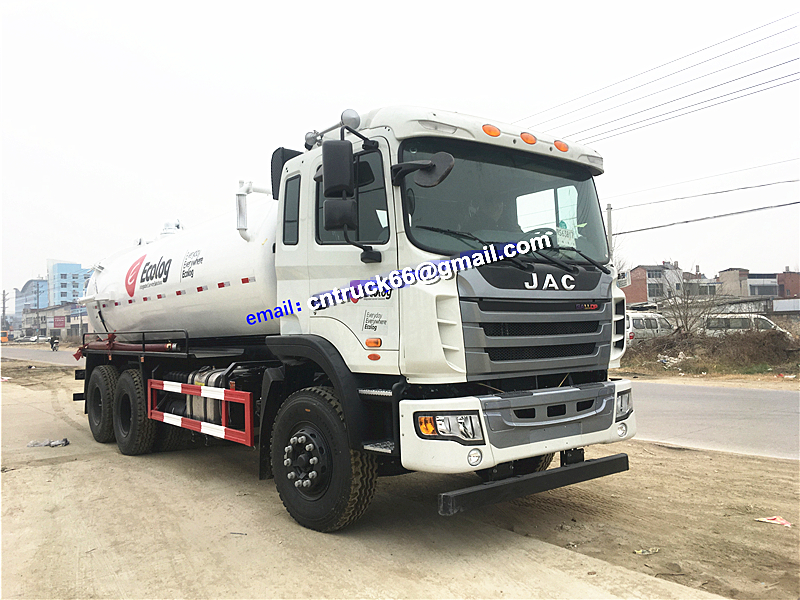

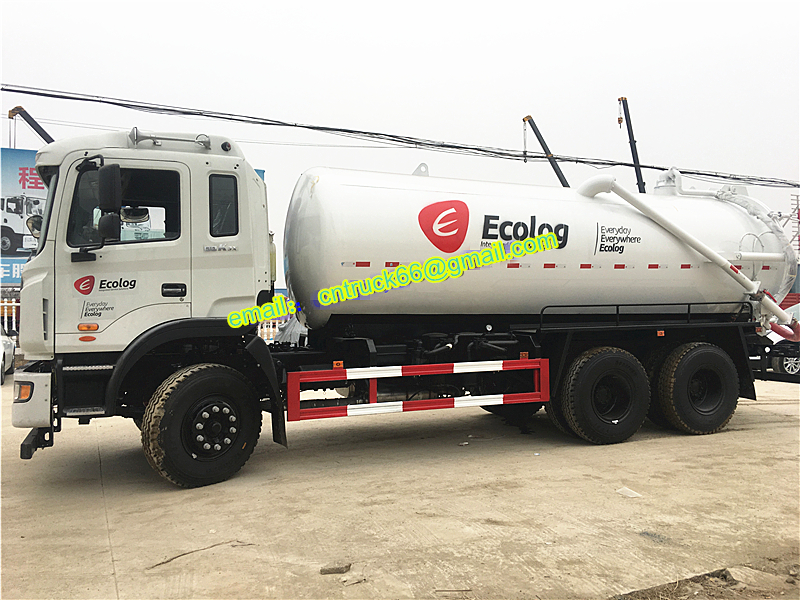

10 wheel JAC 16m3 to 18m3 vacuum sewage suction truck Detailed image
