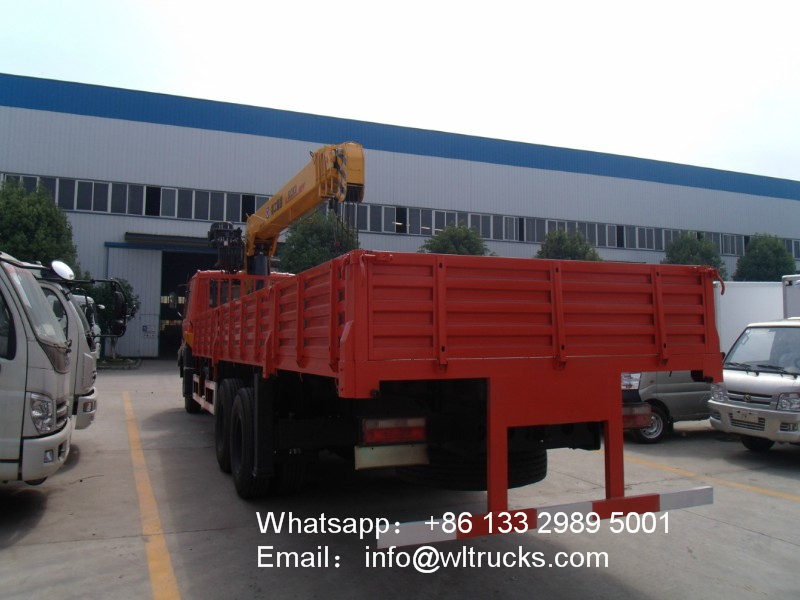

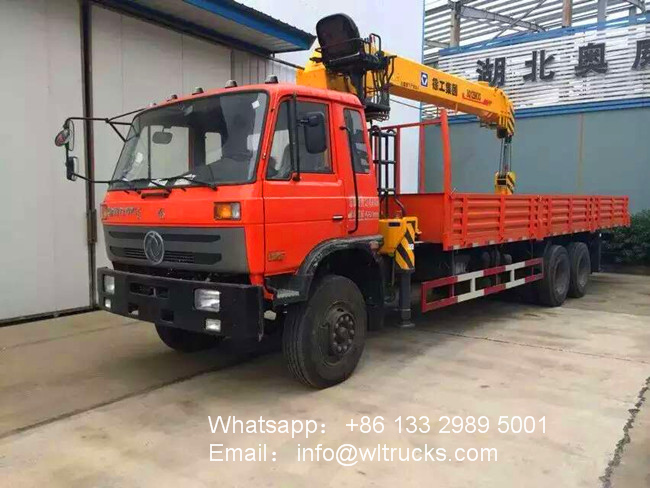

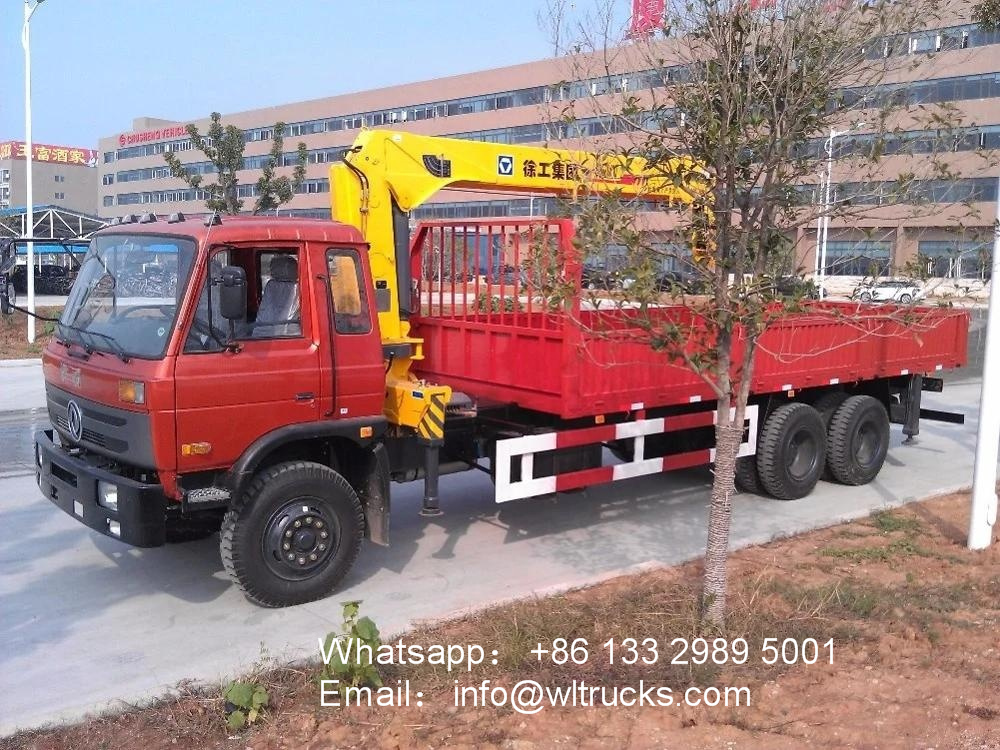

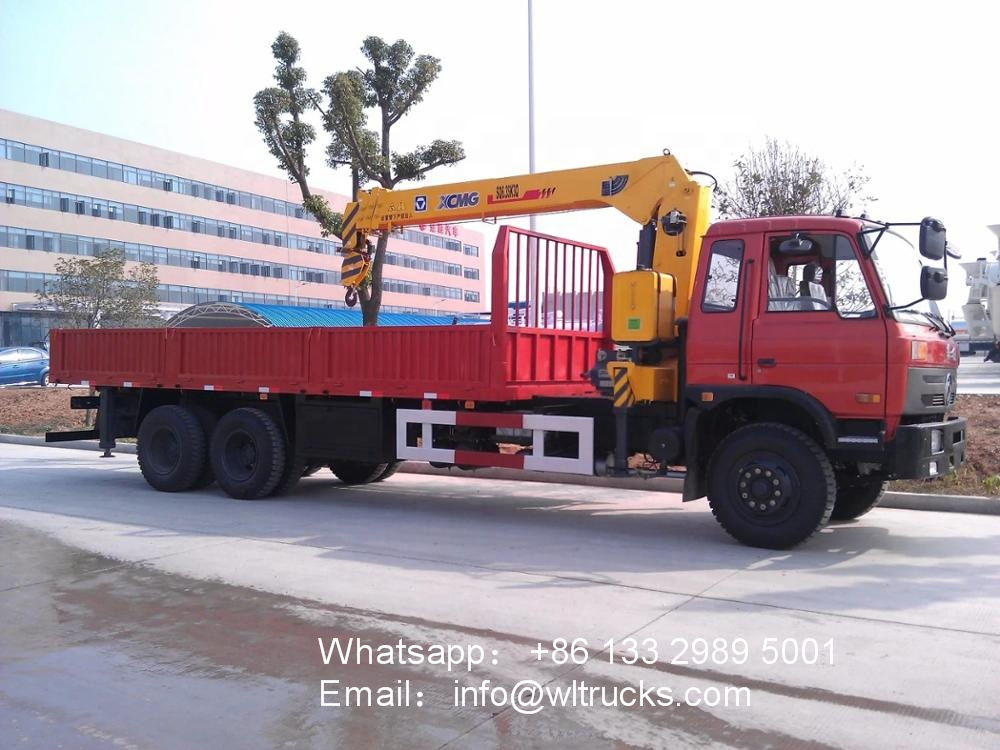

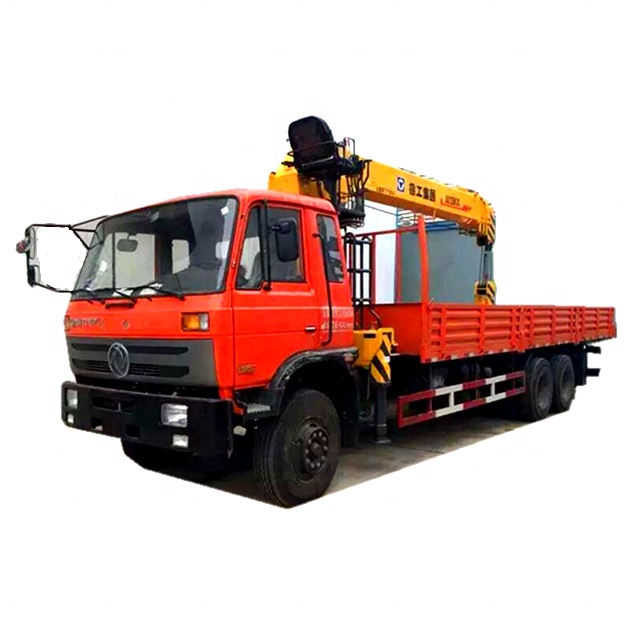

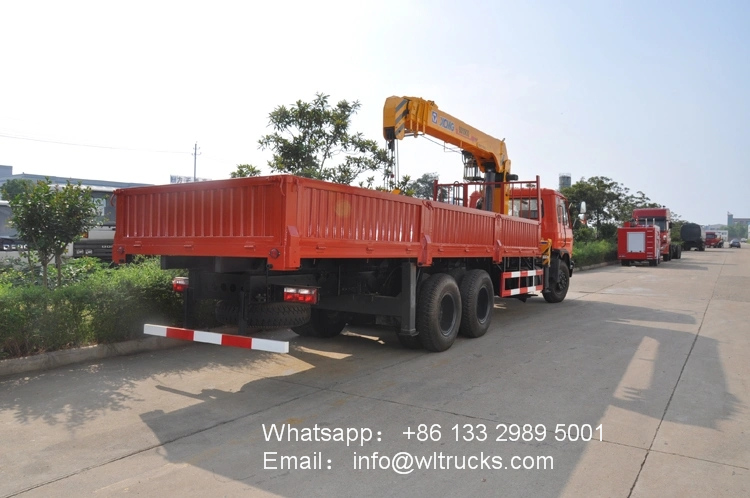

10 wheel DFAC 10ton to 12ton mobile crane truck
10 wheel DFAC 10ton to 12ton mobile crane truck Adopt the old 153 cab, Cummins 210 or 240 horsepower, Fast 8-speed gearbox, wheelbase 4500 + 1350mm, 1000 tires, standard cargo box can be made into 8.2 meters manual telescopic or hydraulic telescopic cargo box, the rear can be Equipped with ladders, automatic unloading elevators, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
10 wheel DFAC 10ton to 12ton mobile crane truck specification:
| Chassis model | DongFeng | ||
| Driving Type | 6*4 Left hand driving | ||
| Max Speed (km/h) | 80 | ||
| GVW( kg) | 25000 | ||
| Wheelbase(mm) | 5100+1350 | ||
| Tire | 10.00R20 (6+1) | ||
| Gear box | 8-speed | ||
| Bridge | Front axle | 5T | |
| Rear axle | 10T | ||
| Engine | Model | 210HP(Euro 3) | |
| Fuel Type | Diesel fuel | ||
| Max output power/rotate speed (hp ) | 210 | ||
| Electric system | 24v | ||
| Upper-Body specification | |||
| Model | SQ12SA3 | ||
| Match the truck | 12 tons loading truck | ||
| Assembling space (mm) | 900 | ||
| Mass working weight (kgs) | 2350 | ||
| Max lifting height (m) | 11.1 | ||
| Slewing mechanism | Rotating speed (r/min) | 2 | |
| Rotating range (°) | 360 | ||
| Leg | Type | H | |
| Span(m) | 2.28-5.3 | ||
| Hydraulic system | Pressure (mpa) | 20 | |
| Capacity(l) | 100 | ||
| Safety device | Overwind alarm | ||
10 wheel DFAC 10ton to 12ton mobile crane truck Working parameter:
