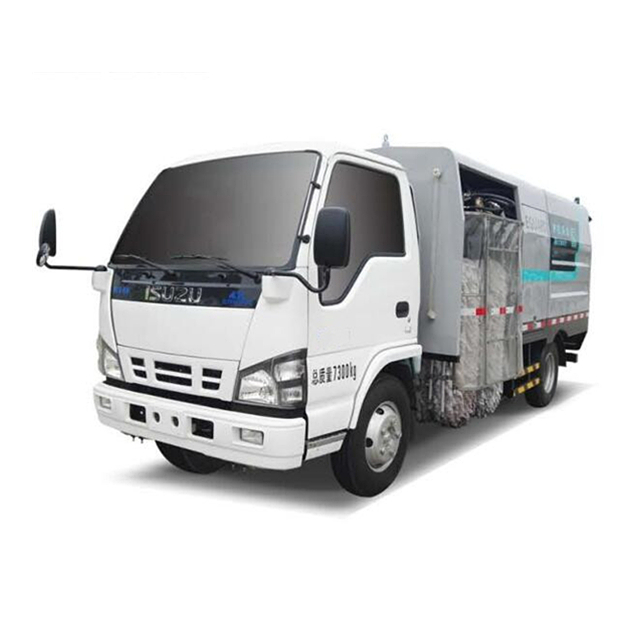

Isuzu 5 ton guardrail cleaning truck is modified with ISUZU 600P series special chassis, equipped with original heating and cooling air conditioner, matching ISUZU 120 horsepower diesel engine. The core technology is from Isuzu, Japan. The technology is mature, the quality is stable, and the fuel consumption is excellent.
The gearbox adopts Isuzu MSB series 5-speed gearbox, with clear gears, smooth shifting and low power loss. Equipped with direction assistance, clutch assistance, ABS anti-lock brake system, driving more comfortable.
Isuzu 5 ton guardrail cleaning truck Bodywork configuration:
- 4m3 to 6m3 stainless steel tank body; Jiangxi Isuzu 57KW auxiliary engine; Sanyo motor; Hypres solenoid valve group; German Pinfu high-pressure water pump; Anhui Debon roller brush (with 6-8 nozzles before and after cleaning on the nozzle) rear side of the drive room With low-pressure washing nozzle, with four rows of vertical cleaning roller brush washing fence.
- The upper body adopts a separate structure, the water tank and the engine body are separated, so that the body can achieve a perfect proportion and enhance the stability of the body work.
- Indoor Schneider integrated control box; tail LED arrow points; guardrail cleaning height is 0.1-1.7 meters; standard guide mechanism and 18-meter high-pressure reel (washable road indicators).
Isuzu 5 ton guardrail cleaning truck Performance characteristics:
- The main engine and auxiliary engine are international first-line brands, which are easy to maintain.
- The front of the car body is equipped with an automatic guardrail cleaning car automatic telescopic door, and a cleaning working device is built in the non-operating state to avoid the working device from being exposed and improve the service life of the device.
- The cleaning efficiency is good: the multi-directional cleaning work method, no cleaning dead corner. Using double-sided, two-punch, two-wash cleaning process, the cleanliness of the guardrail reaches 80-90%.
- The post-installation design of the auxiliary engine is convenient for maintenance, reducing the interference of the vibration and noise of the auxiliary engine to the passengers and passengers, and improving the driving and riding comfort of the passengers and passengers.
- Self-adjusting cleaning device: during the operation, the cleaning device automatically tracks with the position of the guardrail and automatically adjusts the position of the brush roller with the position of the guardrail. There is no distortion of the guardrail after cleaning.
- Strong adaptability and good cleaning effect: a variety of working devices can be selected to clean different shapes of isolation guardrails.
- A forced air exchange system is installed in the auxiliary engine room to improve the use efficiency of the auxiliary engine.
- The diameter of the brush roller is ≥520 mm.
- Mobile intelligent hydraulic operation platform: convenient operation and control.
- A variety of brush wires can be selected, suitable for multi-material guardrails such as plastic-impregnated, steel and stainless steel, and applied to pillar-shaped, square-shaped and strip-shaped guardrails.
The brush wire (the service life can reach 3000 hours) uses a special high-quality nylon and polyester sticky cloth combination cleaning brush, which has a flexible texture, which makes the cleaning more thorough without leaving dead corners and without scratches on the surface of the guardrail.
- Special controllable nozzle valve: It can be adjusted according to the height of the guardrail. The height and amount of water spray can be adjusted as needed to fully pre-wet and flush the guardrail.
- Good water saving effect: the use of adjustable angle stainless steel nozzles, the product 6 tons of water workload can reach 8 tons of water cleaning operations of similar products.
- Optional telescopic operation monitoring system to improve operation safety.
- Warning lights are installed on the front and rear of the vehicle and on the washing device to ensure the safety of pedestrians and vehicles.
- Adjustable work lighting, suitable for night work, to ensure the visibility and safety of night cleaning.
- Equipped with high-pressure water pump and water gun (optional) to complete high-pressure flushing operation.
- Optional reversing image system to improve the operating comfort and safety of passengers and passengers.
- The cleaning action can be operated in the cab, and each action operation has an interlock device to avoid misoperation and ensure work reliability. The integrated controller instrument has luminous light, constantly monitors the working conditions of various operating systems, and finds problems in time.
- The rotating speed of the brush roller is continuously adjustable in multiple stages to adapt to the cleaning operation of guardrails of different types and different pollution degrees.
- All vehicle water tanks are made of high-quality stainless steel, with high-strength anti-corrosion and anti-rust. The optimized capacity of the water tank is 4 tons to 6 tons without overloading, which improves the safety factor of urban operations.
- The vehicle adopts hydraulic telescopic arm cleaning operation, the main arm can be raised and lowered, and the cleaning brush arm can be retracted forward and backward, which has three advantages compared with the conventional non-rising retractable arm guardrail cleaning vehicle:
- In case of deformation or corner guardrails, the front and back rolling brushes can be opened for easy operation (the cleaning vehicle without telescopic arm guardrails cannot clean the deformed guardrails or corner guardrails).
- The distance between the roller brushes can be adjusted according to the width of the guardrail to achieve a better cleaning effect.
- After the roller brush is worn, the distance between the roller brushes can be shortened to extend the service life of the roller brush.
- In order to achieve better cleaning effect and adapt to multiple style guardrails. Our company chooses independent roller brush connecting shaft and nylon adhesive cloth brush roller.
The advantages of nylon adhesive cloth brush roll compared to conventional nylon guardrail brush roll:
- Different types of bristle film combinations (nylon brushes, adhesive cloth brushes) can be selected according to the different guardrails.
- The cleaning effect is good (the cleanliness of the nylon fence is brushed once to clean the guardrail is 40%, and the cleanness of the nylon adhesive cloth brushes is once cleaned to 80%).
- Economical and practical (when the nylon guardrail brush is damaged or excessively worn, it needs to be replaced entirely. The nylon adhesive cloth brush roller uses an independent roller brush to connect the shaft and the blade brush. After the roller brush is damaged, only the severely damaged brush needs to be replaced. ).
Isuzu 5 ton guardrail cleaning truck Parameter configuration:
Item |
Main performance parameters |
||
Car type |
Qingling |
||
Chassis model, category, manufacturer |
QL1070A5HAY second class Qingling Motors Co., Ltd. |
||
Emission Standards |
Country Five |
||
hair move machine |
Host |
Chassis engine model and manufacturer |
4KH1CN5HS Qingling Isuzu (Chongqing) Engine Co., Ltd. 96 4KH1-TCG51 Qingling Isuzu (Chongqing) Engine Co., Ltd. 88 |
Power kw |
96/88 |
||
Displacement ml |
2999/2999 |
||
Auxiliary engine |
Cleaning engine model and manufacturer |
JX493G3 Jiangling Motors Co., Ltd. |
|
Power kw |
57 |
||
Displacement ml |
2771 |
||
Fuel type |
No. 0 light diesel (shared diesel tank with chassis) |
||
size parameter quality |
Overall dimensions (length X width X height) mm |
5980×2050, 2200×2600 |
|
Track |
Front wheel mm |
1504 |
|
Rear wheel mm |
1425 |
||
Wheelbase mm |
3360 |
||
Rated crew |
2 people |
||
Front overhang/rear overhang mm |
1015/1605 |
||
Approach angle |
2 4 ° |
||
Departure angle |
1 2 ° |
||
Minimum ground clearance mm |
180 |
||
Curb weight kg |
4980 |
||
Maximum total mass kg |
7300 |
Special performance parameters |
Clean water tank volume (m 3 ) |
4 |
|||
Number of roller brushes |
4 |
||||
Cleaning width (mm) |
0-260 |
||||
Rolling brush speed (r/min) |
150-300 |
||||
Cleaning operation area (m/h) |
2400-12000 |
||||
Cleaning operation speed (km/h) |
2-10 |
||||
Maximum cleaning guardrail height (mm) |
1500 |
||||
Operation noise (db) |
<88 accords with GB7258 |
||||
Hydraulic system |
Type |
Open type, centralized control by electric control |
|||
Main components |
Gear pumps, gerotor motors, hydraulic cylinders, solenoid valves, manifolds, hydraulic radiators, etc. |
||||
System pressure (mpa) |
10-12 |
||||
Fuel tank capacity |
≥70 |
||||
Hydraulic radiator |
Wuxi Kaihua Technology |
||||
Cleaning system |
Adopt the hydraulic telescopic arm cleaning operation, the main arm can be raised and lowered, and the cleaning brush arm can be extended and retracted to ensure the cleaning efficiency. |
||||
System composition |
It is composed of chassis car circuit, auxiliary engine electrical part and special working device operation control circuit. |
||||
Chassis system voltage (V) |
12 |
||||
Working device system voltage (V) |
12 |
||||
Composition of electric control panel |
Auxiliary machine tachometer, auxiliary machine water temperature meter, oil temperature alarm device, various operation control switches |
||||
Battery model |
12V-70A.H (2 in parallel) |
||||
Driving performance parameters |
Drive type |
4×2 rear axle drive |
|||
Suspension type |
Leaf spring with hydraulic two-way telescopic cylinder shock absorber |
||||
Number of leaf springs (front/rear) |
7/5+5 |
||||
Braking type |
Double circuit hydraulic brake, drum type |
||||
Braking distance (30km/h at full load) |
≤ 10m |
||||
Maximum speed (km/h) |
100 |
||||
Minimum turning radius (m) |
6.8 |
||||
Maximum grade |
≥30% |
||||
Clutch system |
Single-plate dry diaphragm spring clutch, hydraulically operated |
||||
Transmission system |
Mechanical 5-speed transmission with synchronizer, manual |
||||
Engine fuel consumption |
Driving (L/100km) |
Operation (L/h) |
Operation (L/10000m 2 ) |
||
≤ 9 |
≤ 5 |
≤ 2 |
|||
Water spray system |
Water spray form |
High pressure water spray |
|||
Main components |
High-pressure water pump, water filter, pipeline, stainless steel nozzle, etc. |
||||
High-pressure water pump and displacement (l/min) |
PINFL13HP/15 |
||||
Nozzle model |
5003 |
||||
Installation location |
Roller brush holder outside |
||||
flow |
30L/min |
