Rhd Dongfeng 4X4 off-Road 6 ton Telescopic Boom Truck Mounted Crane
Rhd Dongfeng 4X4 off-Road 6 ton Telescopic Boom Truck Mounted Crane photos crane Model SQ6.3SK3Q Oil tank capacity 90L Max lifting height 13m Max lifting moment 15.7T.m Max working radius 11m Recommended power 20KW Max loading 6300kg Weight of crane 2270kg Type Straight arm Recommended hydraulic flow 40L/min Arms number 4 Installation space 900mm Turning angle […]
Tags:
Rhd Dongfeng 4X4 off-Road 6 ton Telescopic Boom Truck Mounted Crane

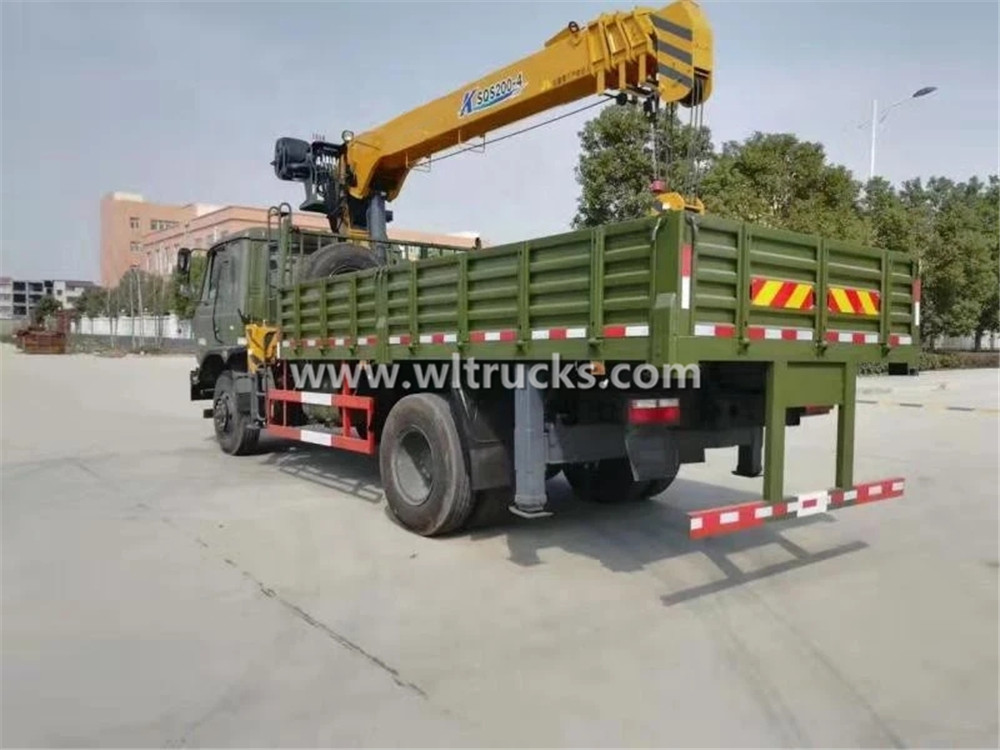

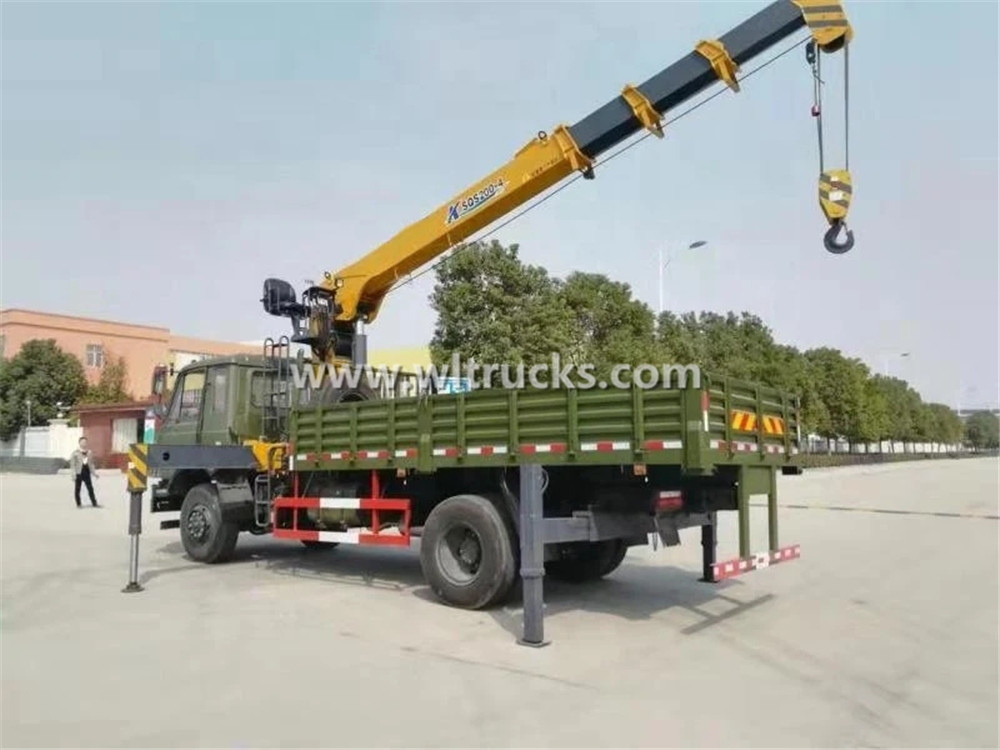

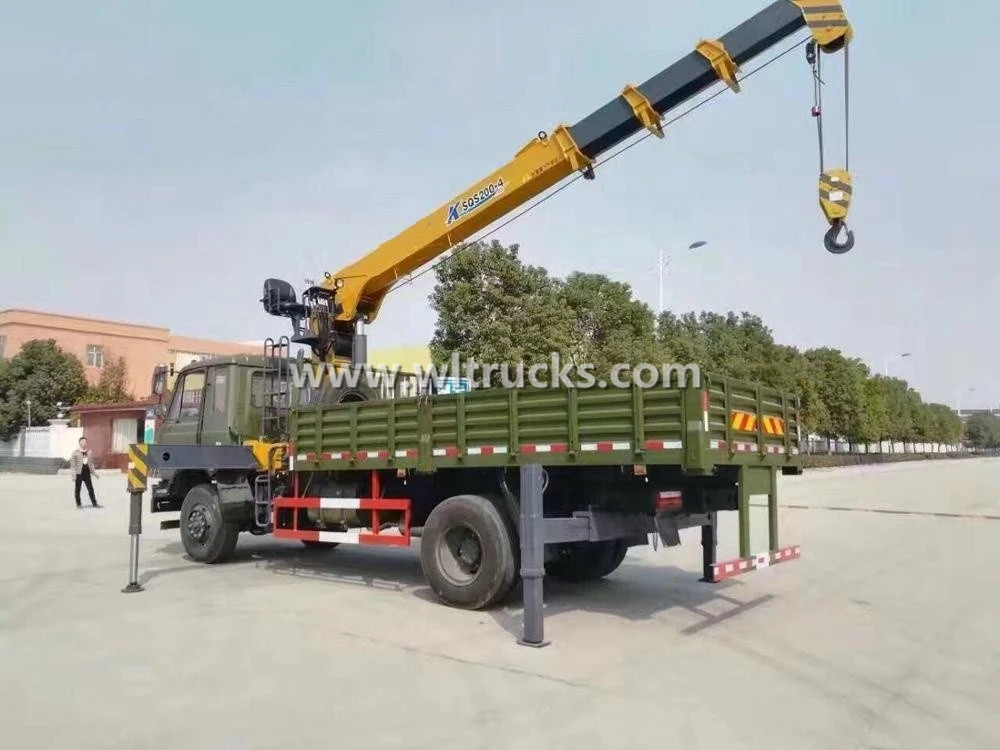

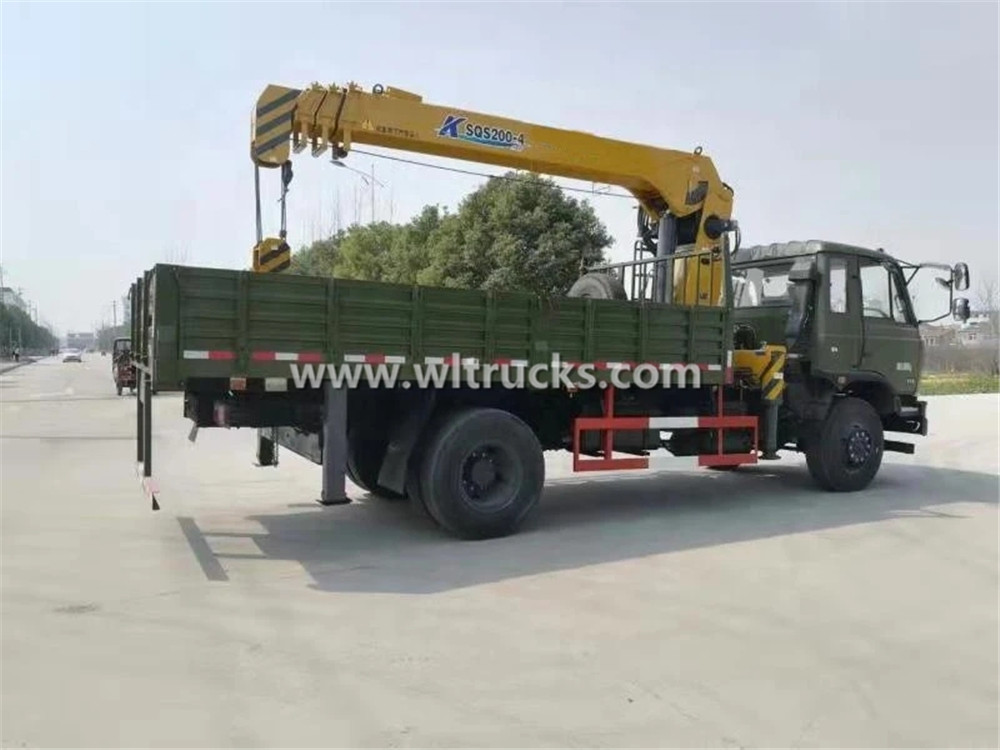

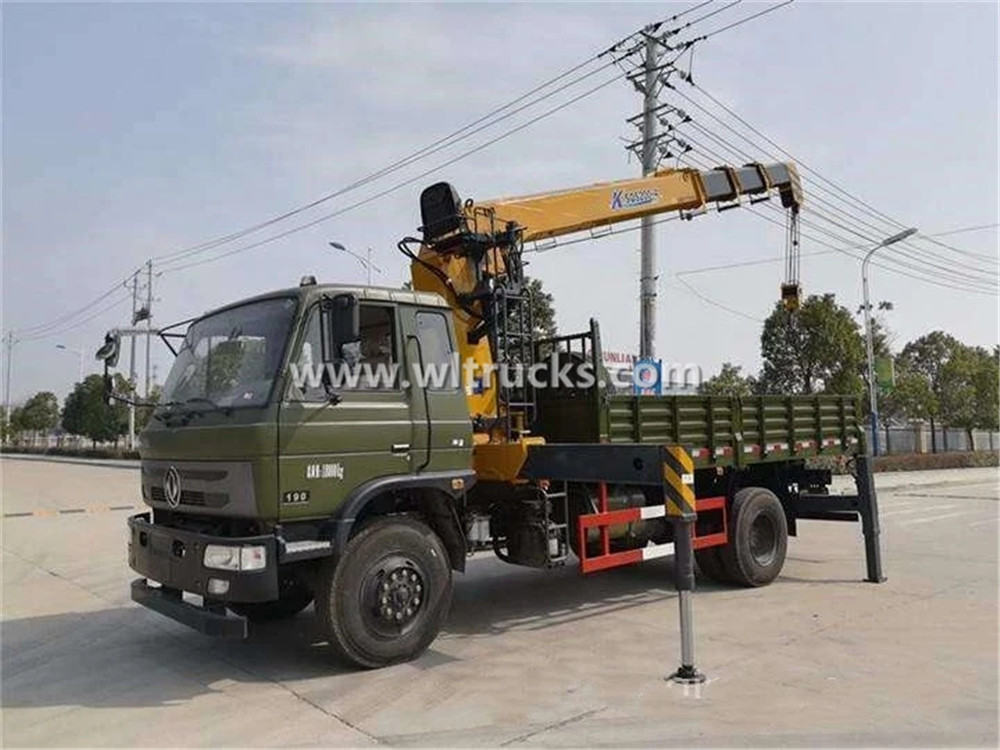

Rhd Dongfeng 4X4 off-Road 6 ton Telescopic Boom Truck Mounted Crane photos
crane | Model | SQ6.3SK3Q | Oil tank capacity | 90L | |
Max lifting height | 13m | Max lifting moment | 15.7T.m | ||
Max working radius | 11m | Recommended power | 20KW | ||
Max loading | 6300kg | Weight of crane | 2270kg | ||
Type | Straight arm | Recommended hydraulic flow | 40L/min | ||
Arms number | 4 | Installation space | 900mm | ||
Turning angle | 360 | Rated hydraulic pressure | 20MPa | ||
Standard configuration | truck crane equipped between the cabin and van body, mechanical leg | ||||
Optional configuration | Any other famous brand crane, it can also be equipped in the rear of the truck, hydraulic legs, aerial working seat is optional. | ||||
Delivery date | Within 20 days after receipt advance | ||||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
