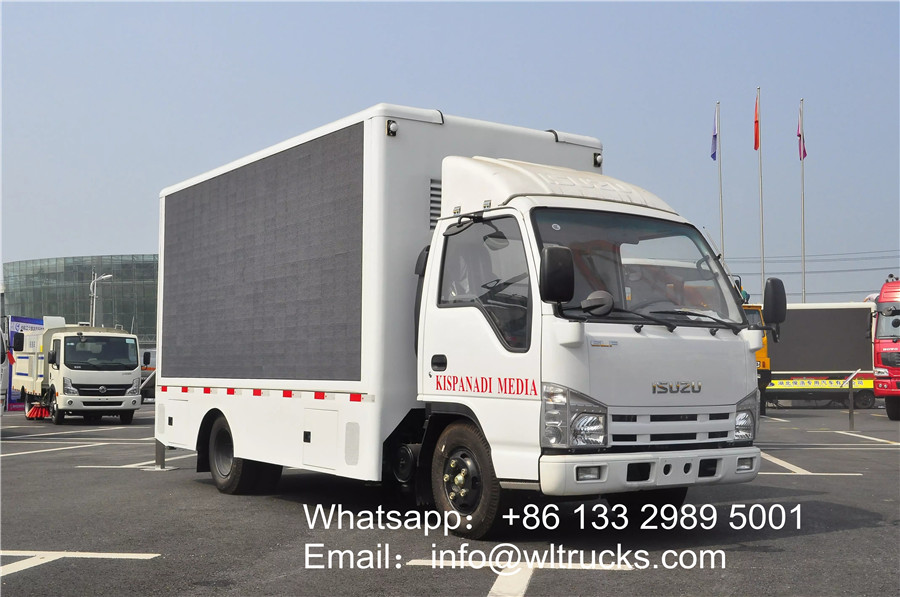

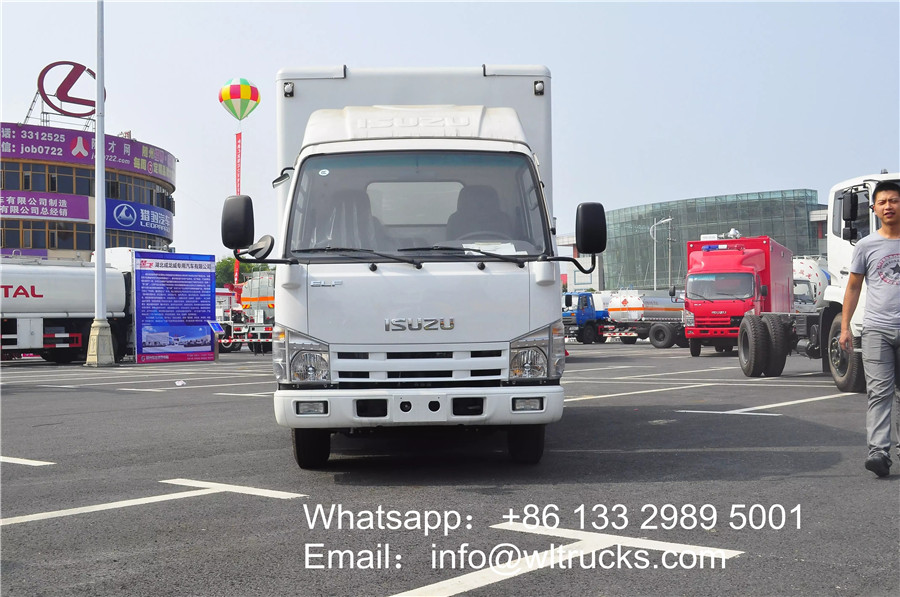

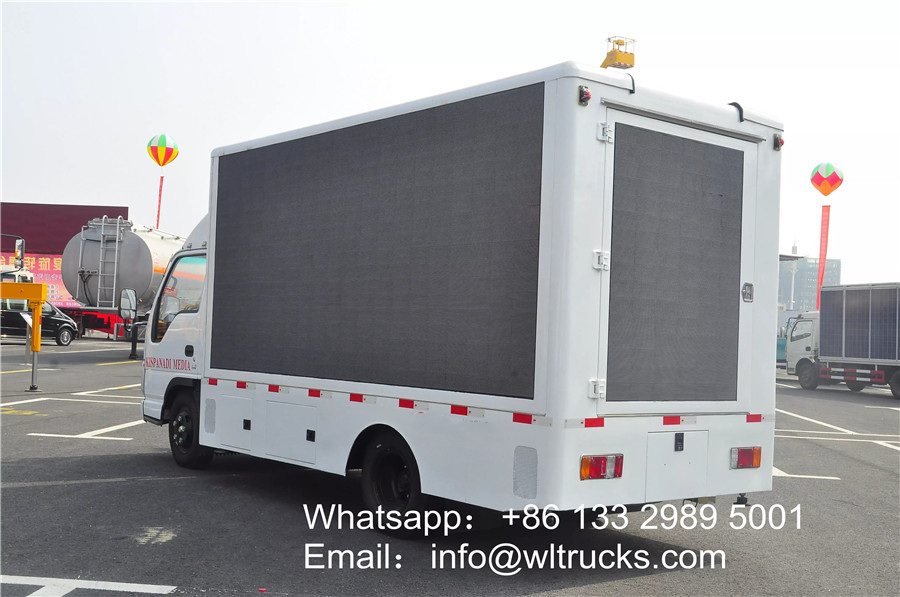

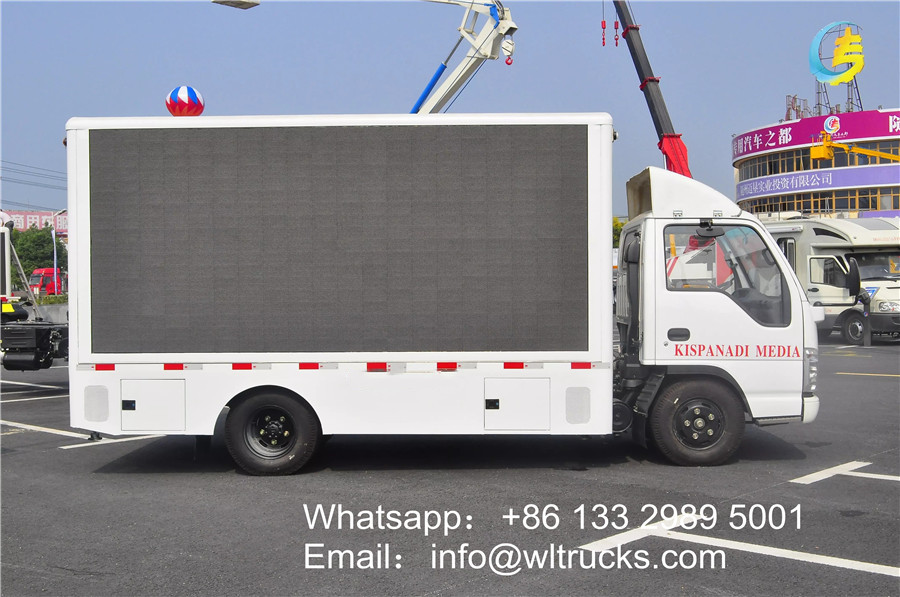

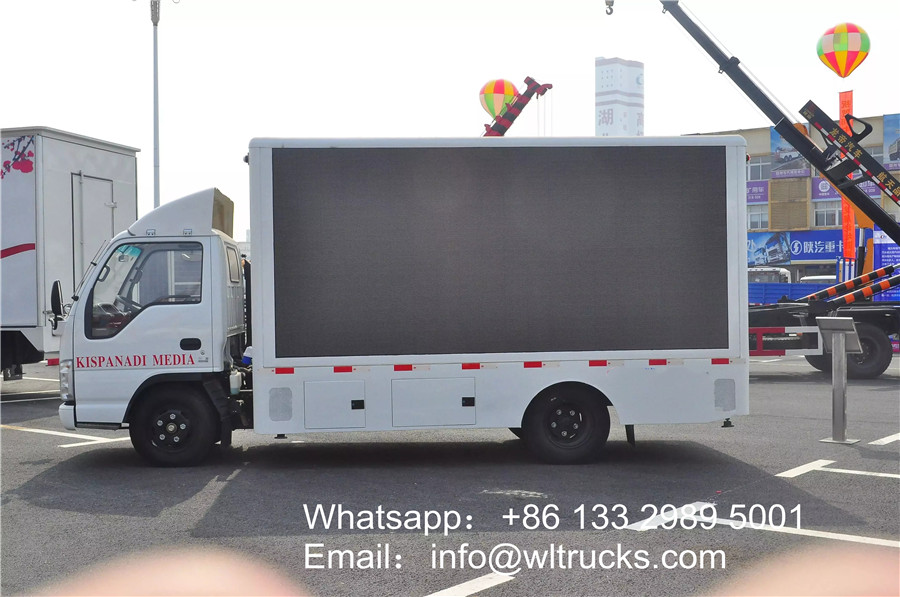

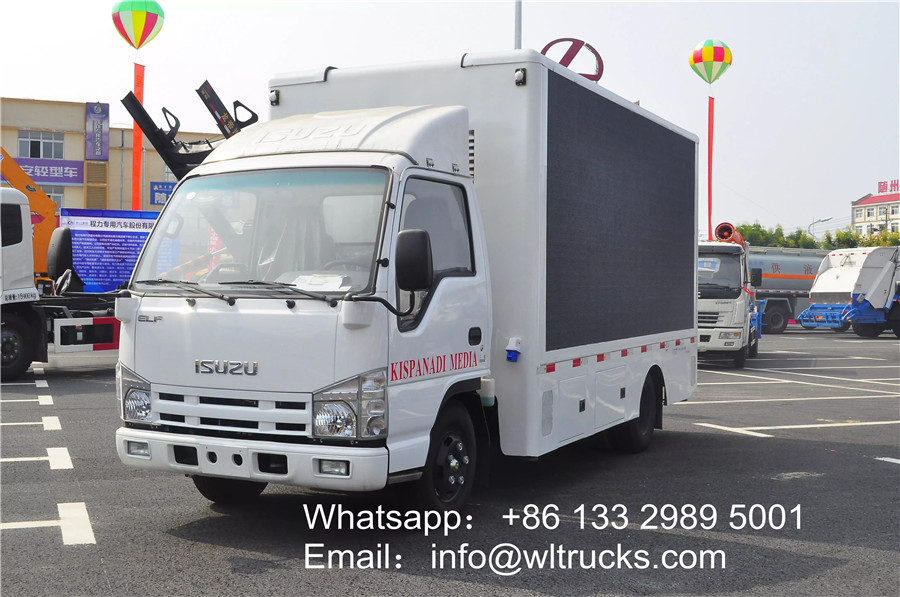

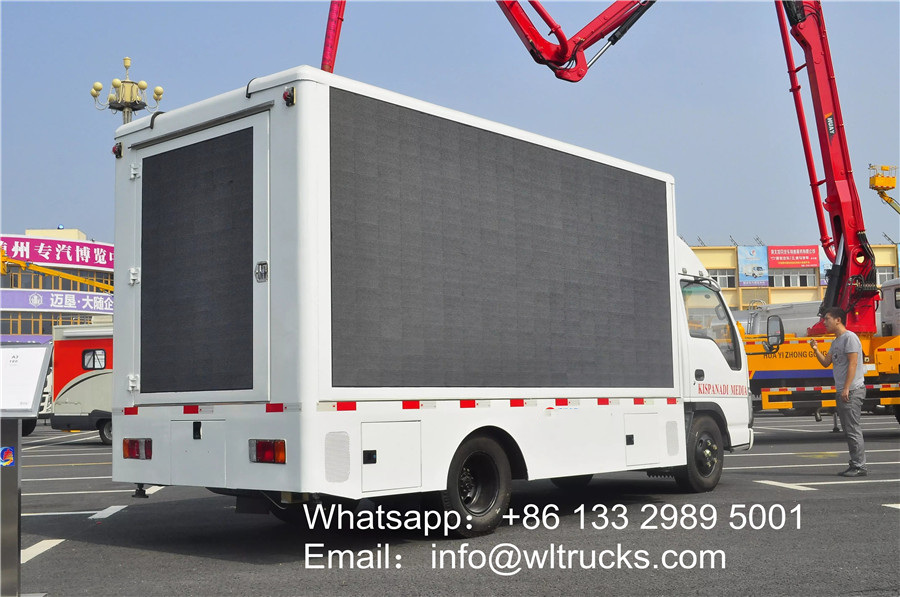

Japan ISUZU 4.2m mobile Led screen truck Parameter configuration：
| Modification configuration | Single screen configuration | Dual -screen configuration | |
| Vehicle size | 5995×2040×2990mm | ||
| Screen specifications | P10/P8/P6 | ||
| Left screen (driver side) | 3.84×1.76=6.8㎡ | ||
| Right screen | Advertising light box plus monochrome screen 1.28 × 0.32 = 0.4 ㎡ | 3.84×1.76=6.8㎡ | |

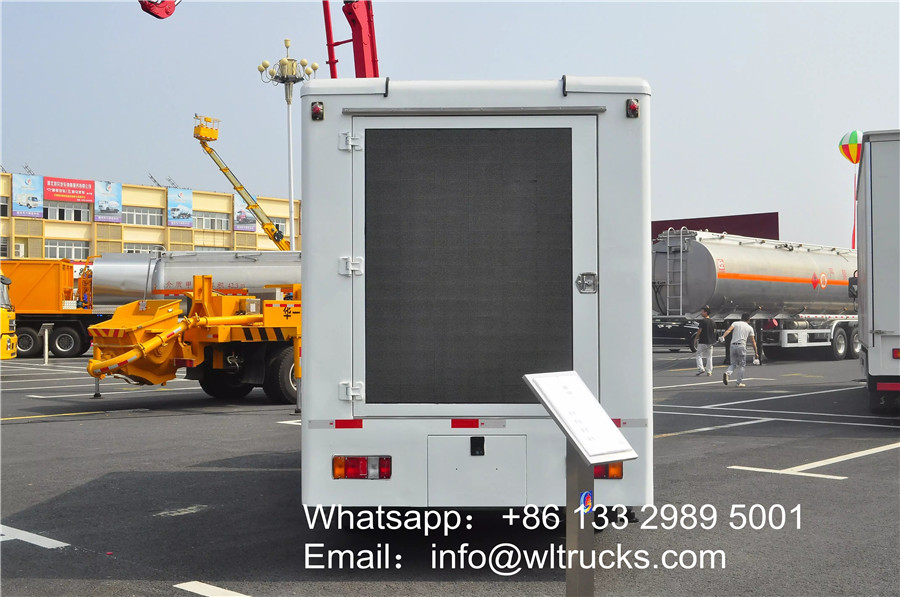

| Rear screen size | Monochrome screen 1.28 ×1.44=1.84 ㎡ | ||
| Generator brand | Ouma Silent Generator | ||
| Generator power | 8KW | 16KW | |
| Engine fuel type | Diesel | ||
| Generator fuel consumption | 2.2 liters/hour | 4.4 liters/hour | |
| Standby utility | 220V | ||
| Computer Configuration | Special shockproof computer for LED | ||
| Number of amplifiers/speakers | Wanshengda/high quality waterproof audio (40WX4) | ||
| Base plate material | Aluminum pattern plate/high-grade wooden floor | ||
| Optional equipment | |||
| Battery pack | 8 battery packs | 16 battery groups | |
| Power consumption | 1kw (degree)/hour | 1.5kw (degrees)/hour | |
| Hydraulic lifting height | 1.5 meters above the ground | ||
| Hydraulic stage area | Standard 9.7 ㎡ (manual stage can be added) | ||
| Number of outriggers | 4 (Enhance wind resistance and stability of the vehicle ) | ||
| Chassis configuration | |||
| engine | Isuzu 98 hp | Gearbox | 5 files |
| Cab | Single row cab | Wheelbase | 3360mm |
| brake | Oil brake/air brake | Fuel type | Diesel |
| Front/rear axle | 1.5 tons/3 tons | air conditioning | Original factory |
| Direction assist | Original factory | Vehicle tire | 7.00 nylon tire |
| Chassis fuel consumption | 8.8 liters/km | Emission Standards | Country four |
| Card type | Blue card | Production cycle | 15 days |
| Japan ISUZU 4.2m mobile Led screen truck adopt new 4JB1CN National IV engine, under the premise of inheriting the high reliability and excellent quality of the Isuzu 4JB1 engine, matches the world-class Bosch diesel electronically controlled high-pressure common rail injection system.
This system has high injection pressure and can improve the visible pollutant emissions of the engine. Multiple injections of electronic fuel injectors provide precise diesel fuel injection at regular and regular intervals to improve engine noise and vibration. Supercharged intercooling technology, electronically controlled EGR+DOC+POC emission control technology. The engine has the characteristics of strong power, low fuel consumption, reliability and durability, and is suitable for the use environment in China. |
|||
