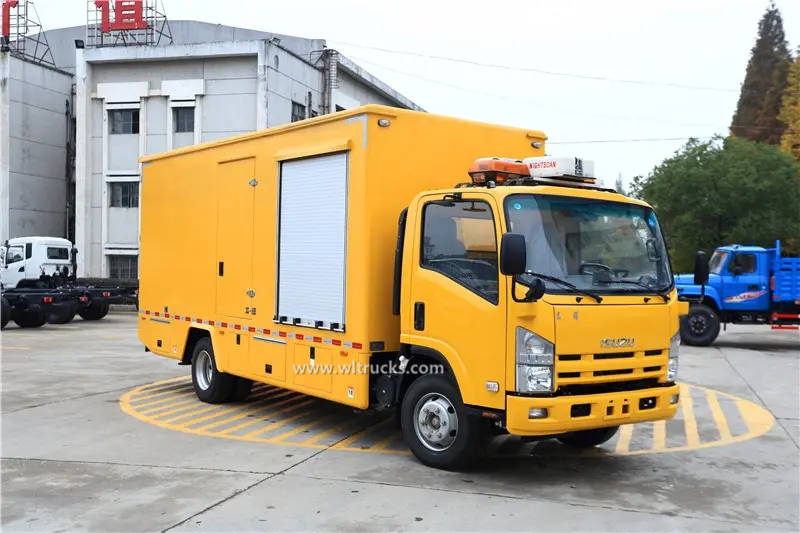

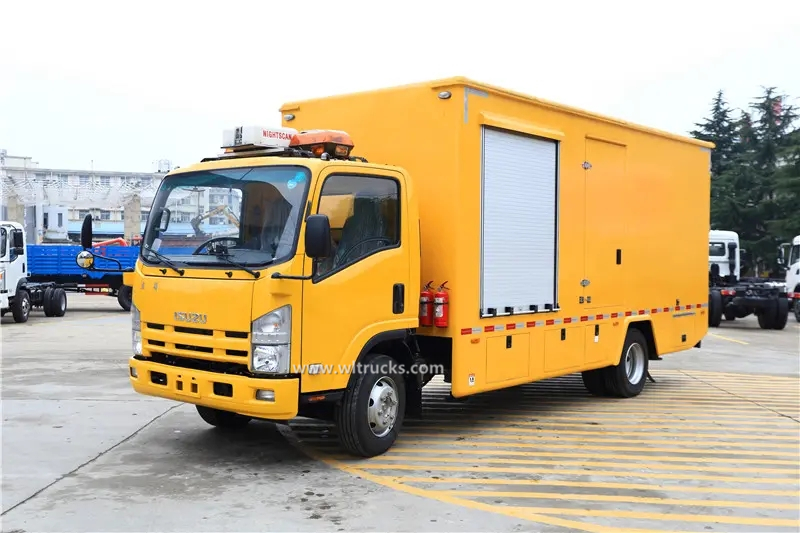

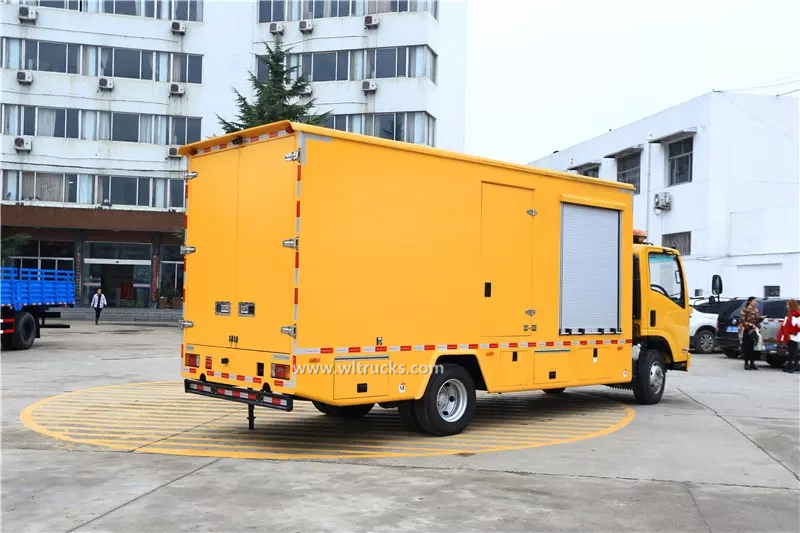

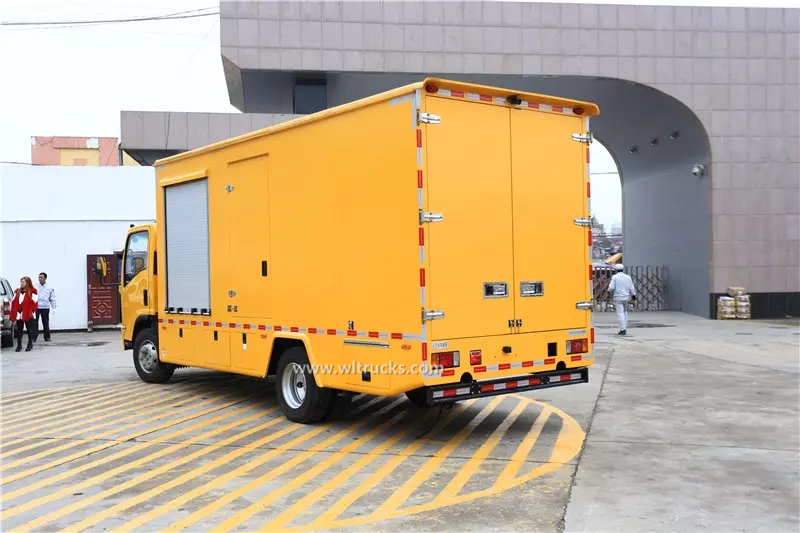

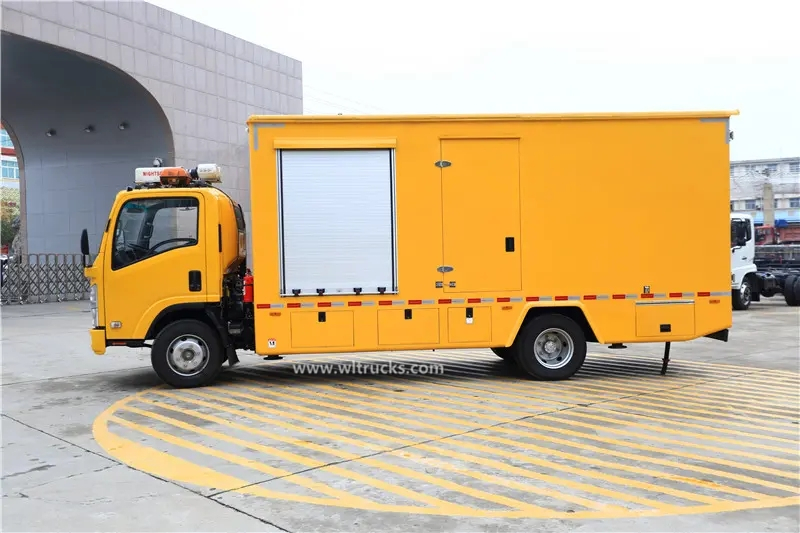

Isuzu NPR mobile emergency power vehicle photos
Isuzu NPR mobile emergency power vehicle uses Isuzu 190HP engine, 4 tons front axle, 7 tons rear axle; the cab can be turned forward for easy repair and maintenance.
Upload configuration:
1. Emergency stop switch: The emergency power supply vehicles produced by Chengli Automobile Company are equipped with an emergency stop switch on the side door of the vehicle, which is convenient for emergency shutdown when the unit has abnormal conditions. The emergency stop switch is equipped with a protective cover to prevent misoperation.
2. Junction box: a junction box is arranged on the side of the rear of the carriage, and the copper bar of the cable connection is arranged (quick connector is optional).
3. Outrigger: The vehicle is equipped with hydraulic outriggers, which are used to support the vehicle power station when the vehicle power station is not used for a long time to avoid damage to the car tires and leaf springs.
4. Sound insulation measures: Sound insulation treatment is carried out at the bottom of the cabin to prevent noise from leaking from the bottom. The inner wall of the carriage is installed with perforated metal plates and sound-absorbing cotton, which are beautiful and sound-absorbing. The surface of the carriage floor is made of patterned non-slip steel plate or patterned non-slip aluminum plate.
5. Auxiliary electrical equipment operation: AC and DC dual-purpose fluorescent lamps are installed inside the chassis. The DC lamp power is provided by the battery of the unit, which can be used as a short-term lighting before starting up. Also pay attention to not turning on the DC lamp for a long time to avoid a large number Consume battery power. The alternating current of the fluorescent lamp is taken from the electric energy provided after the unit is running.
6. The switches for AC and DC lights are located inside the side door, and users can operate them as needed. A movable emergency light is installed on the inner and upper side of the side door. The unit is in a charging state when it is running, and it can be used for movable lighting.
