Isuzu 8cbm Rear Loader Compactor rubbish Truck

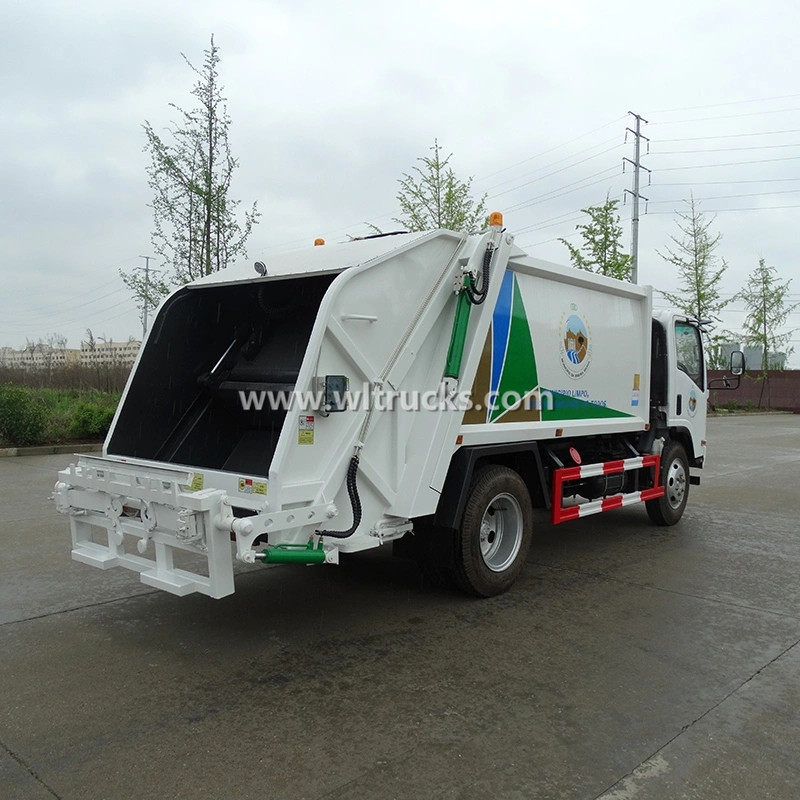

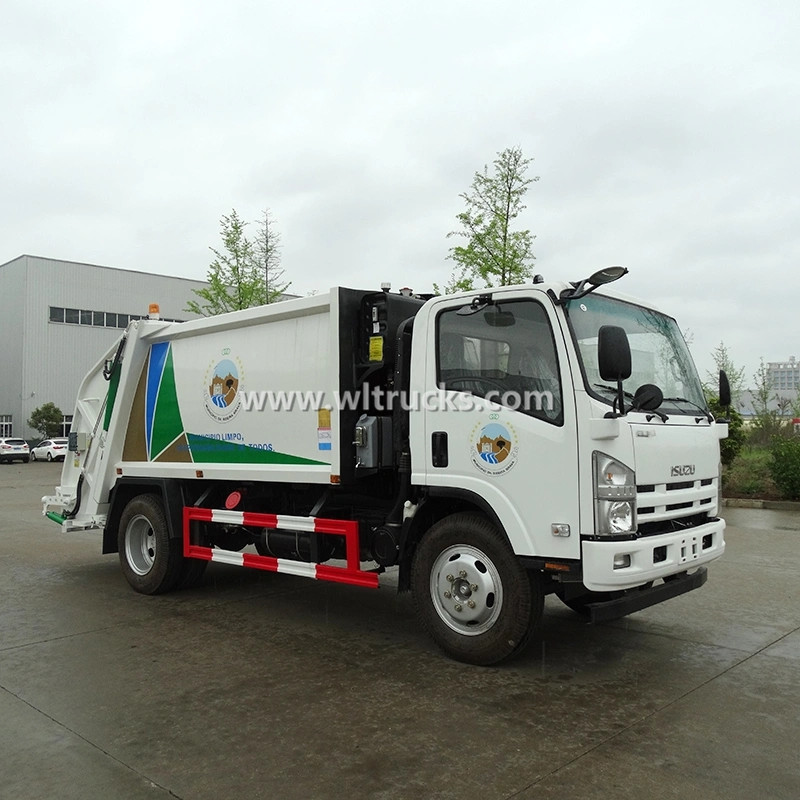

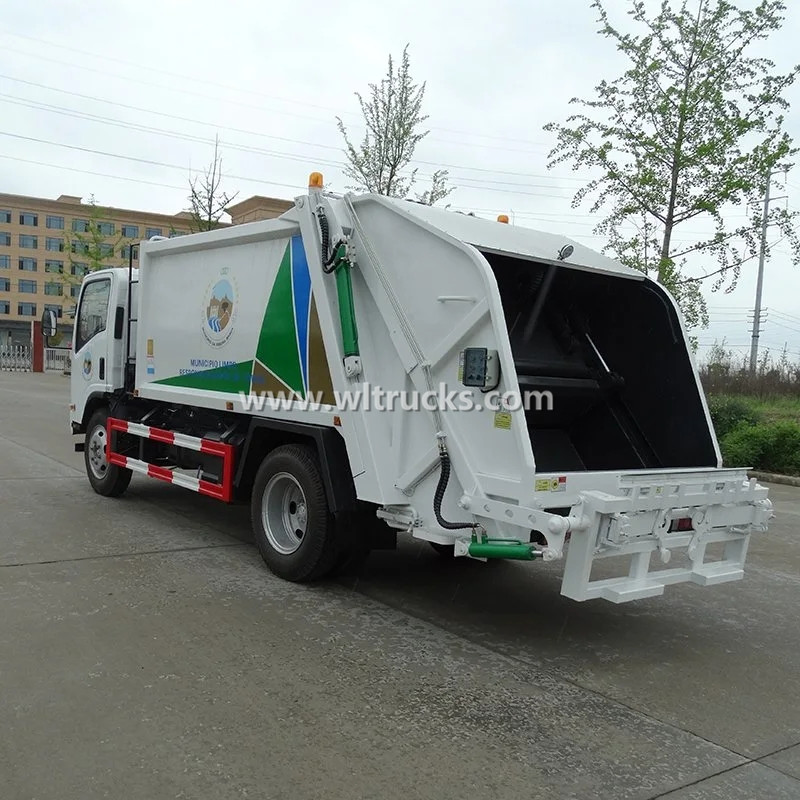

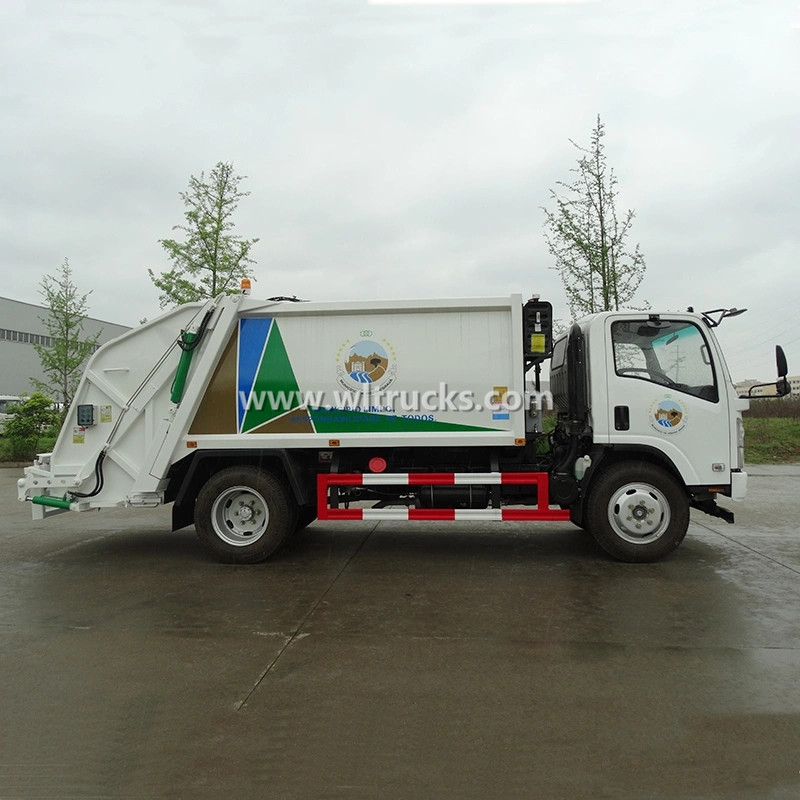

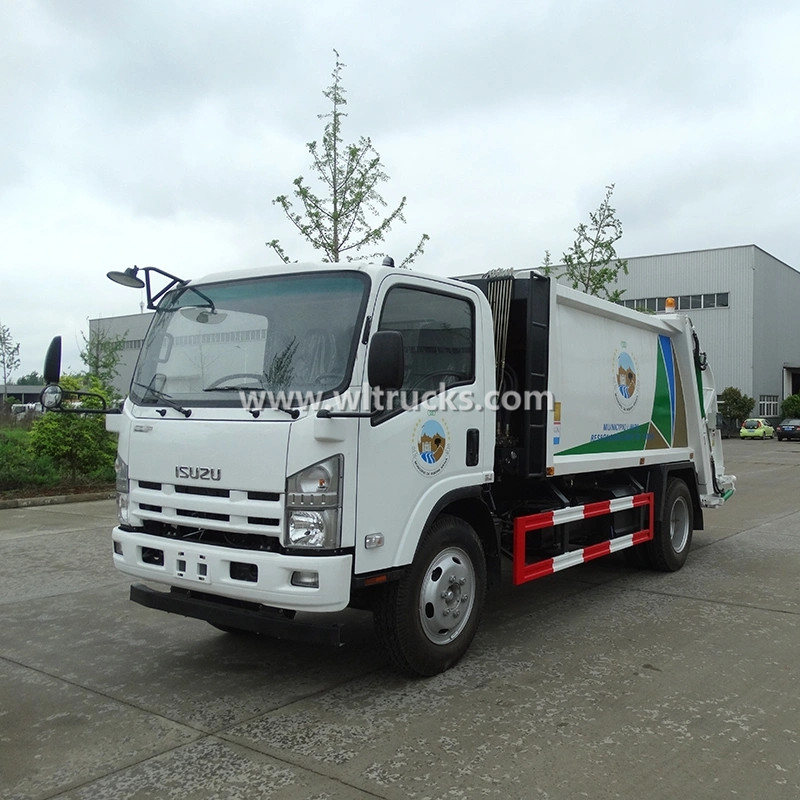

Isuzu 8cbm Rear Loader Compactor rubbish Truck photos
Superstructure Parameter: | |
Tank Volume | 8CBM |
Tank Shape | Arc-shape/Square Optional |
Tank Material thickness | Bottom:4mm Side:4mm |
Tank Material | T420(Special Steel) |
Compression Ratio | ≥2.5 |
The effective volume of the bucket | ≥0.8m³ |
Loading cycle time | ≤40 s |
unload garbage time | ≤45s |
control method | Automatic,Manual |
Maximum pressure of hydraulic system | 20MPa |
Control System | Siemens PLC |
Engine power control | Fully automatic control |
Tumbler mechanism | 240L Garbage bin(Others Optional) |
