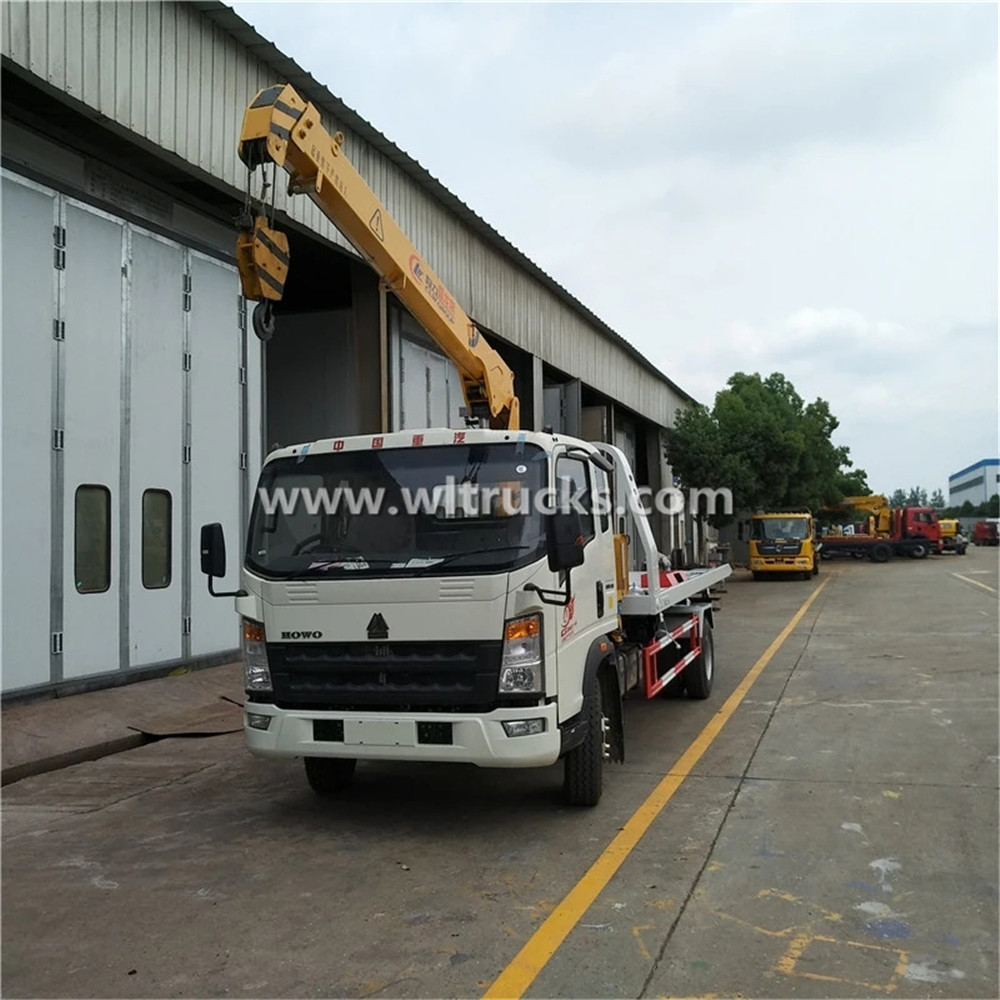

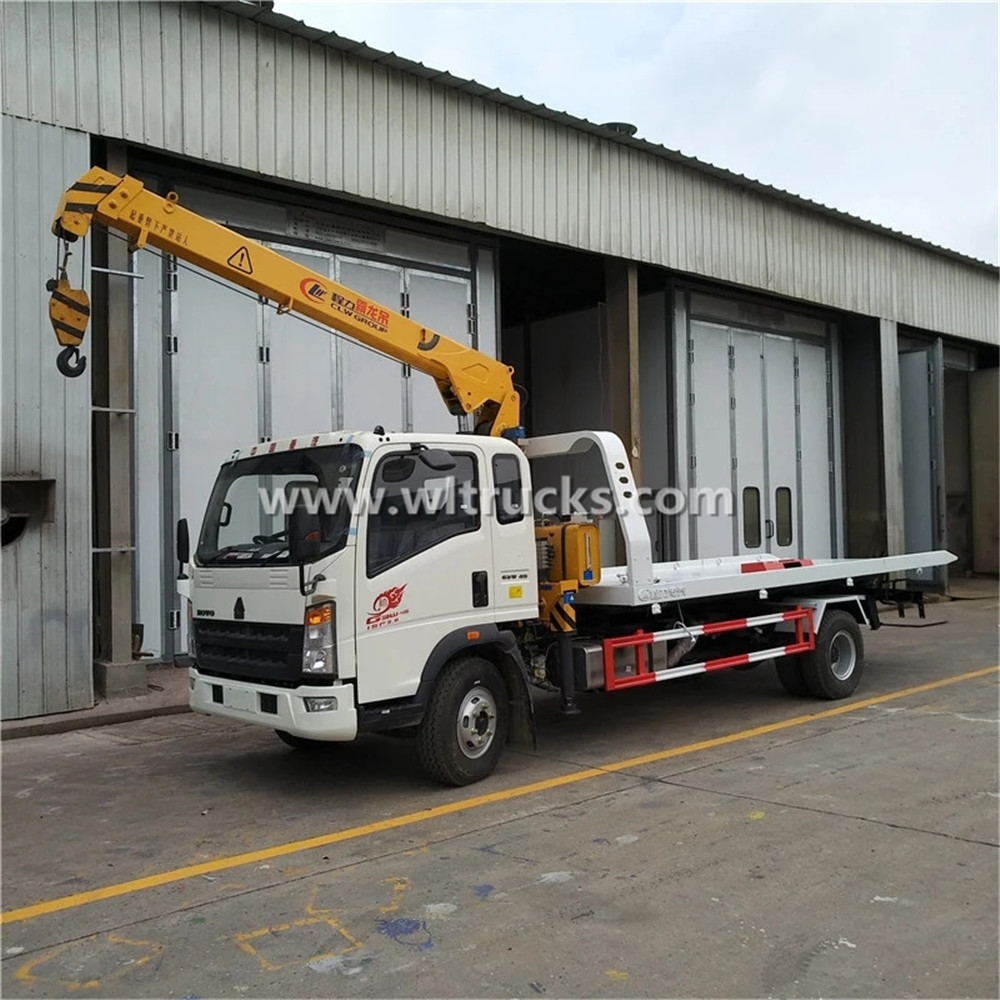

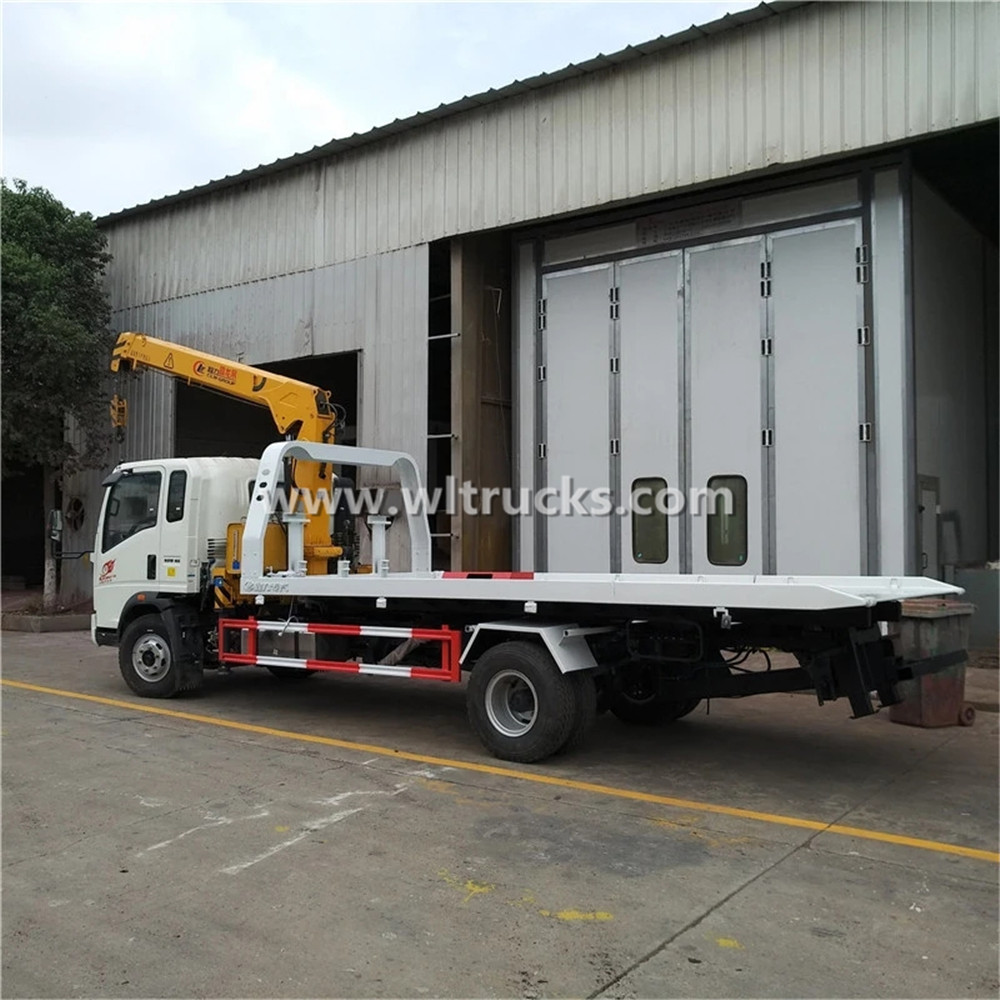

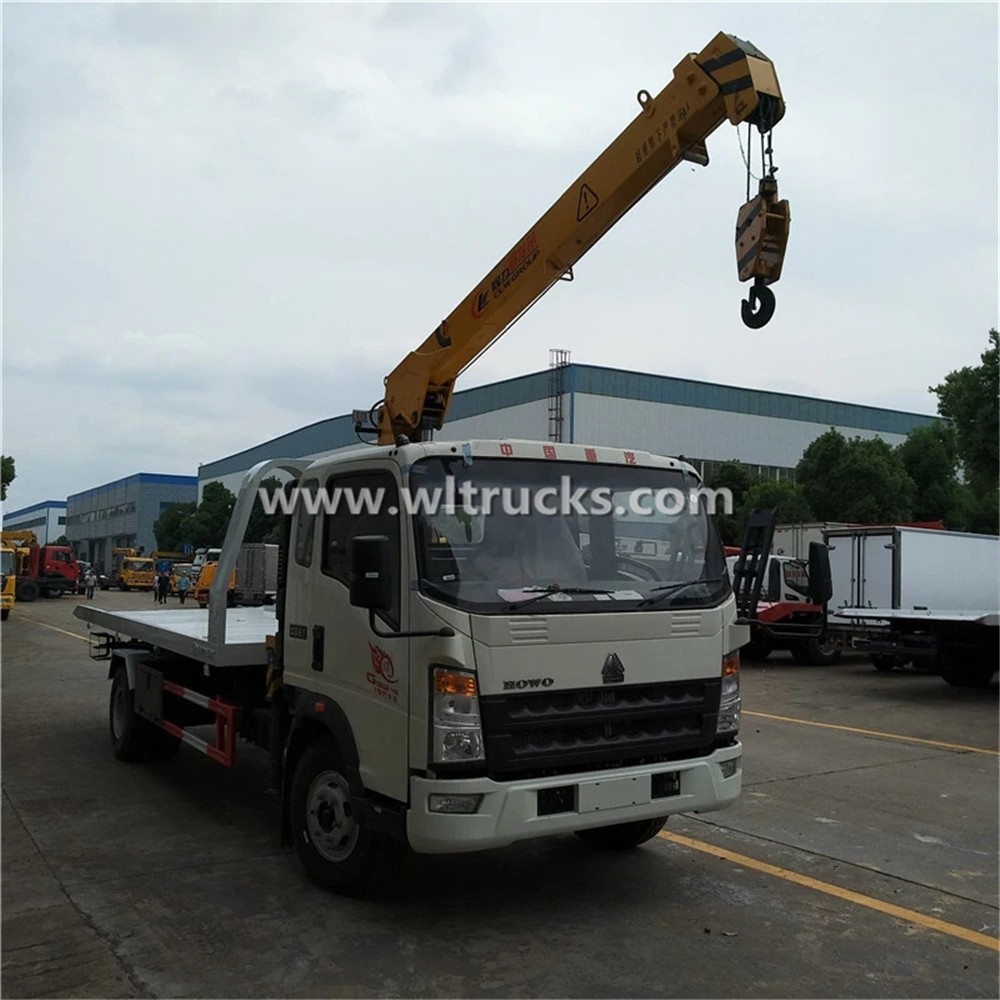

HOWO 5 ton Recovery wrecker Truck with crane photos
| Model | SQ3.2SA2 (3.2 tons, 3 arm) | |||||
| Max loading weight | 3200 kg | |||||
| Max torque | 8.8 T.m | |||||
| Cross section form | hexagon | switch back | Switch speed r/min | 2.5 | ||
| Section number | 3 (extend 2 section) | Slewing angle | 360 | |||
| Length m | 3.5-7.82 | landing leg | model | H type support legs | ||
| Max working radius m | 7.6 | Span m | 1.85-3.1 | |||
| Extend speed m/s | 0.1 | Hydraulic system | System pressure mpa | 17 | ||
| Amplitude range | 1-73 | Tank capacity L | 45 | |||
| Arm speed°/s | 5.2 | Safety device | Over turn alarm | |||
| maximum lifting height m | 9.5 | Self loading kg | 1550 | |||
| Hook lifting speed m/min | 8 | Install space | 950mm | |||
| Diamete of steel wire mm | 8 | Length of steel wire m | 45 | |||
| Lifting capacity | ||||||
| working radius m | 2.5 | 3.5 | 4.5 | 5.5 | 7.6 | |
| Rate loading kg | 3200 | 1380 | 930 | 680 | 430 | |
