Dongfeng Kinrun 8 Ton Telescoping Boom Truck Mounted Crane

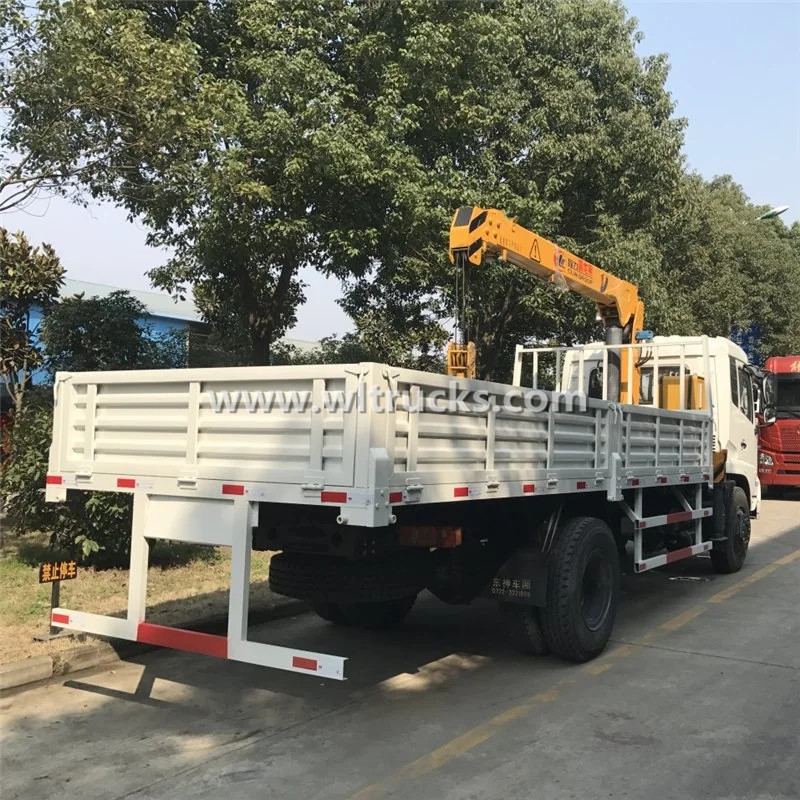

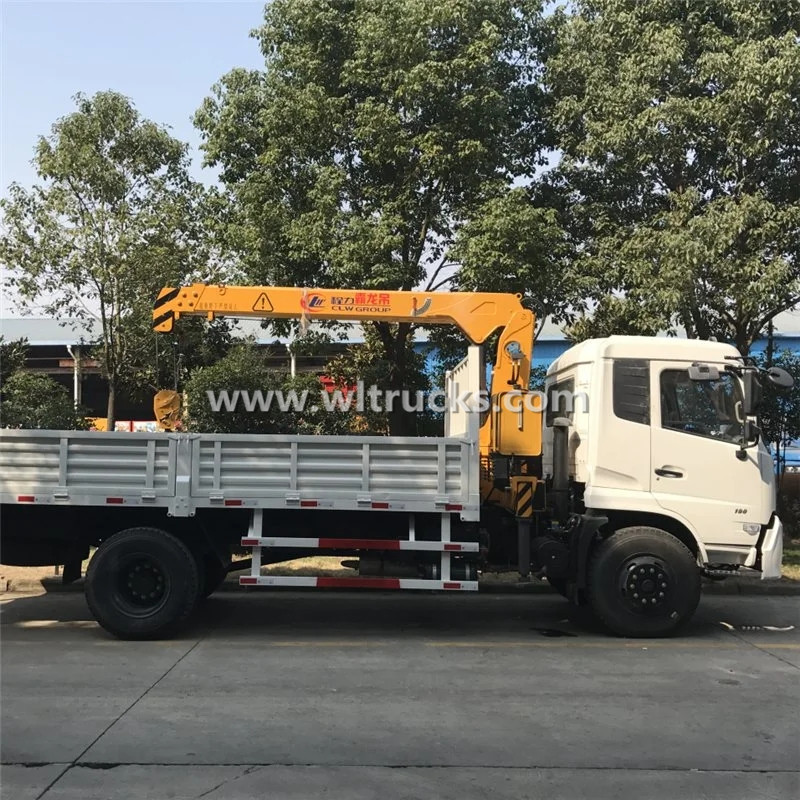

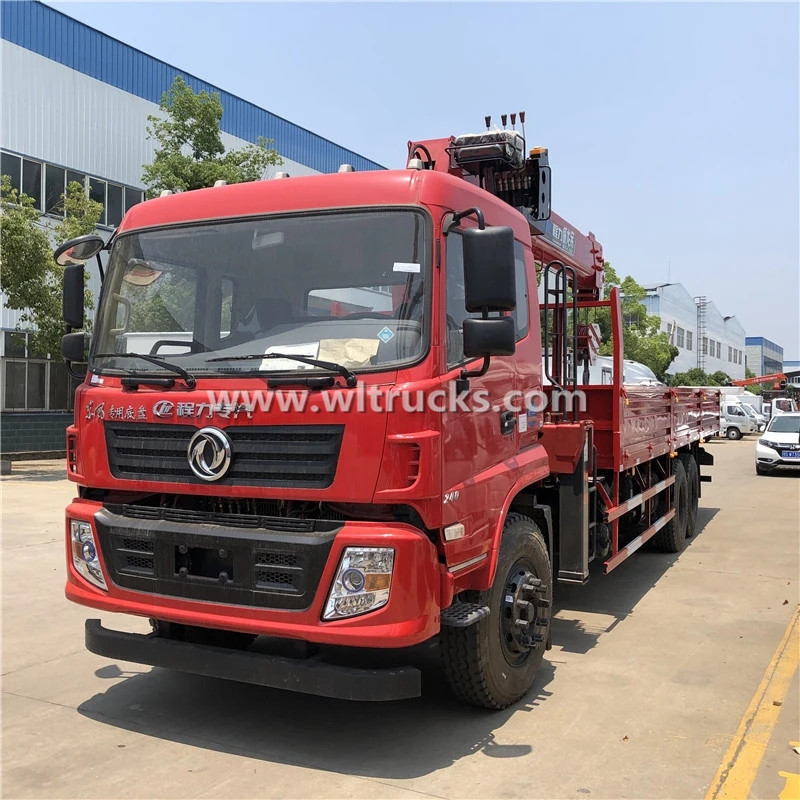

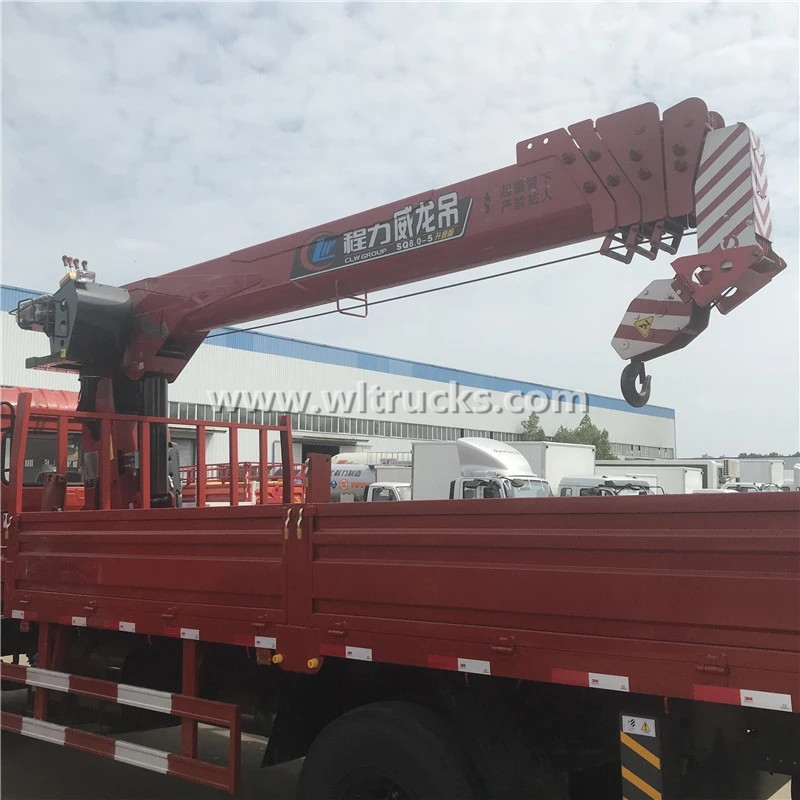

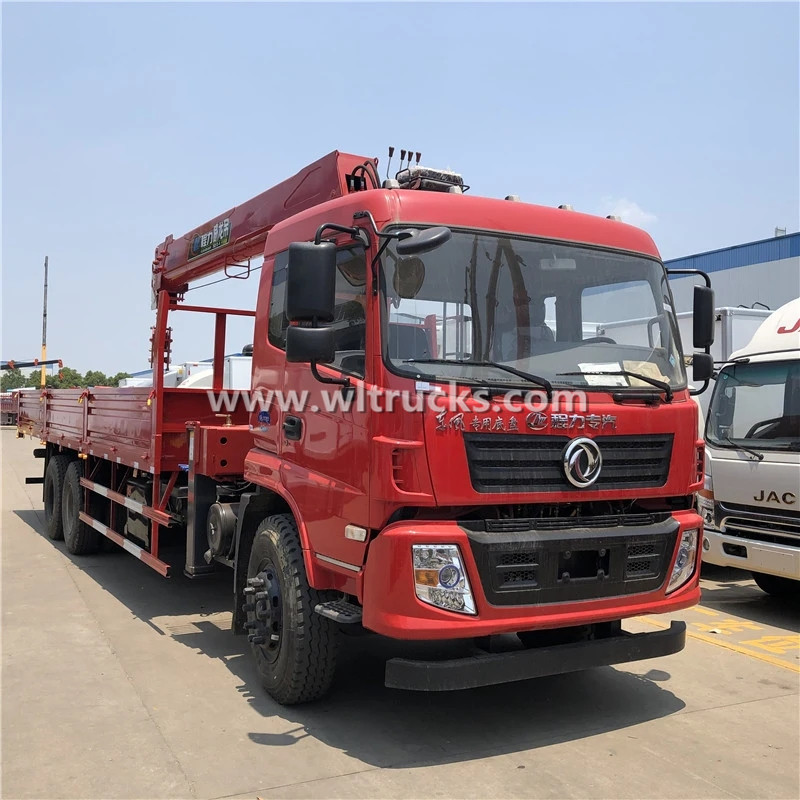

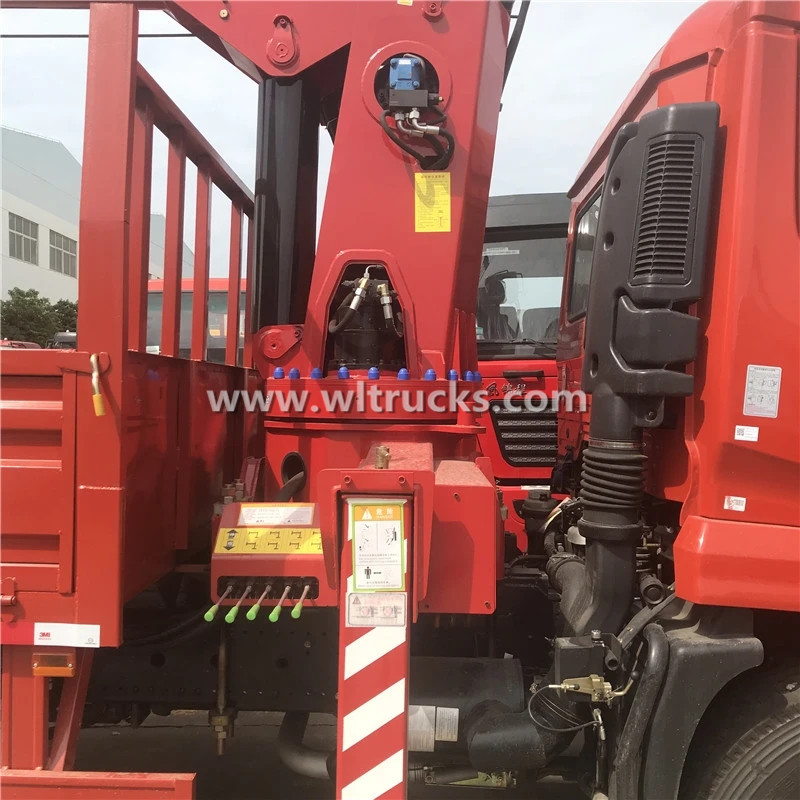

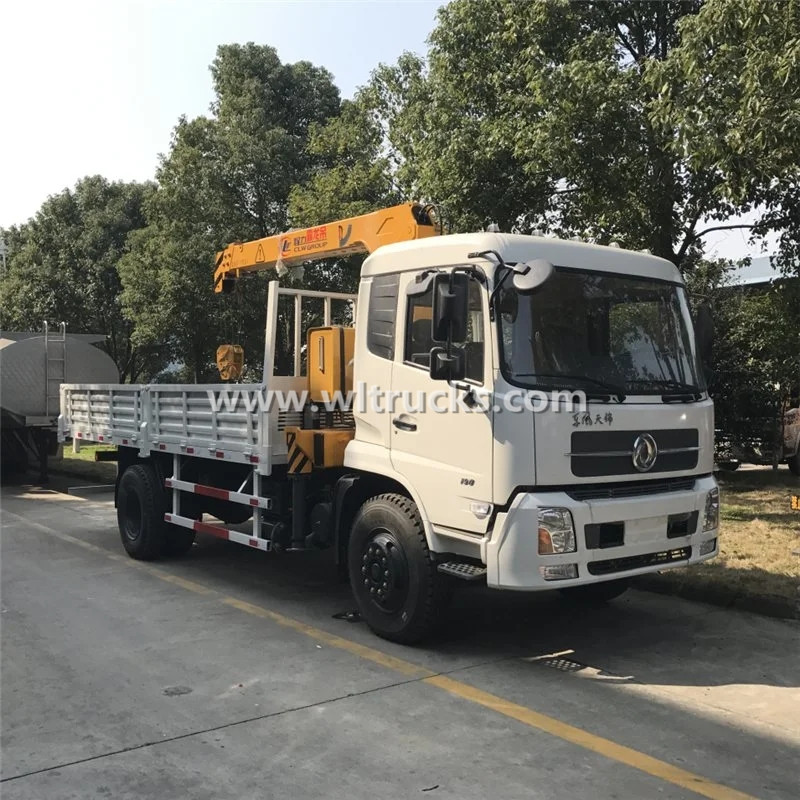

Dongfeng Kinrun 8 Ton Telescoping Boom Truck Mounted Crane photos
8 tons straight arm crane specifications:
Model | SQ8SA3 (8 tons, 4arm) | ||||||||||
Max loading weight | 8000 kg | ||||||||||
Max torque | 11.25T.m | ||||||||||
Cross section form | hexagon | switch back | Switch speed r/min | 2 | |||||||
Section number | 4 (extend 3 section) | Slewing angle | 360 | ||||||||
Length m | 4.2-12.6 | landing leg | model | H type support legs | |||||||
Max working radius m | 12.5 | Span m | 2.3-5.4 | ||||||||
Extend speed m/s | 0.25 | Hydraulic system | System pressure mpa | 21 | |||||||
Amplitude range | 1-70 | Tank capacity L | 120 | ||||||||
Arm speed°/s | 5.3 | Safety device | Over turn alarm | ||||||||
maximum lifting height m | 14.5 | Self loading kg | 3000 | ||||||||
Hook lifting speed m/min | 8.33 | Install space | 1200mm | ||||||||
Diamete of steel wire mm | 9.3 | Length of steel wire m | 100 | ||||||||
Lifting capacity | |||||||||||
working radius m | 2.5 | 4.0 | 5.0 | 6.0 | 7.0 | 9.0 | 11.0 | 12.5 | |||
Rate loading kg | 8000 | 4500 | 3500 | 2550 | 1910 | 1260 | 910 | 850 |
