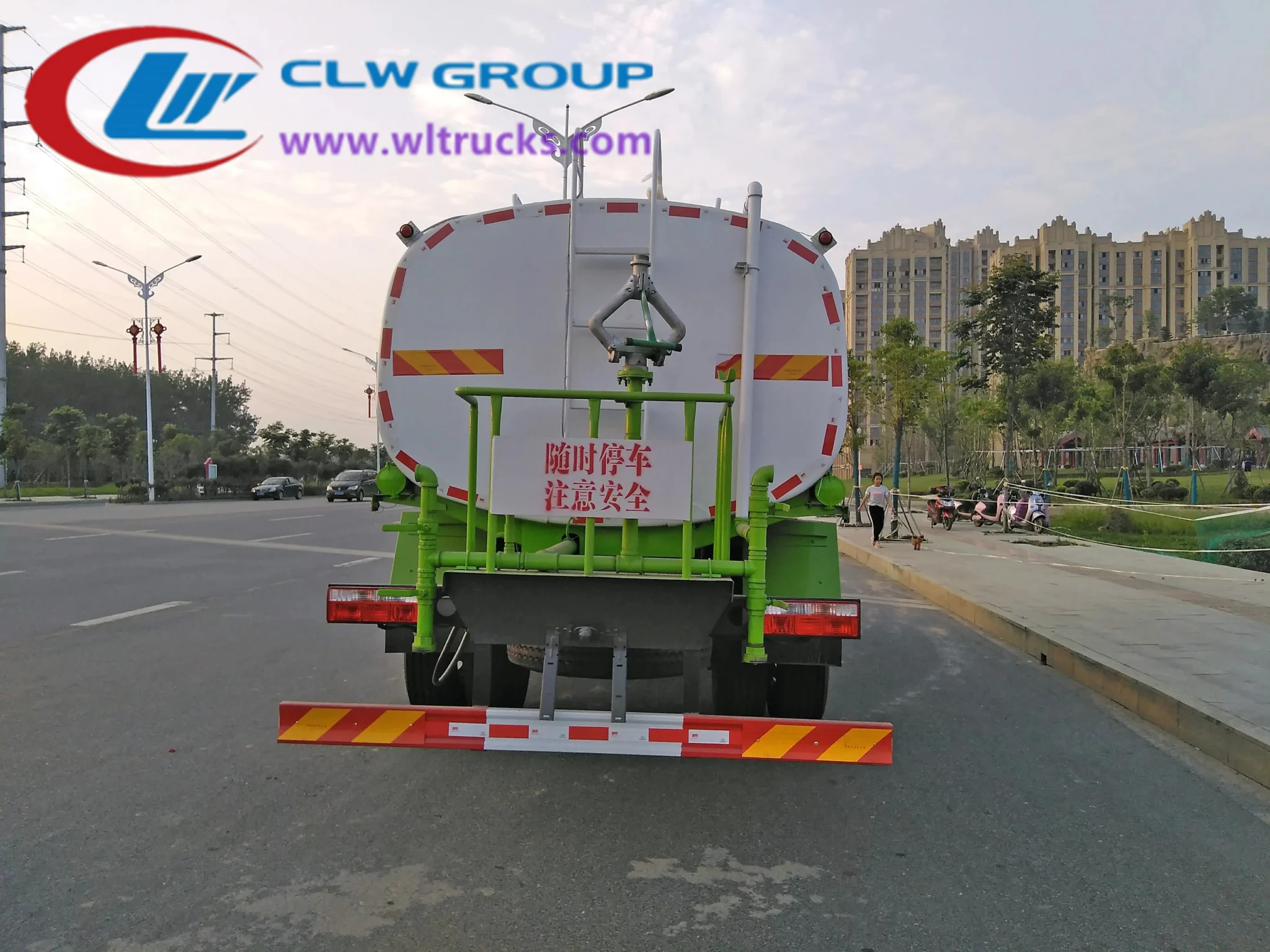

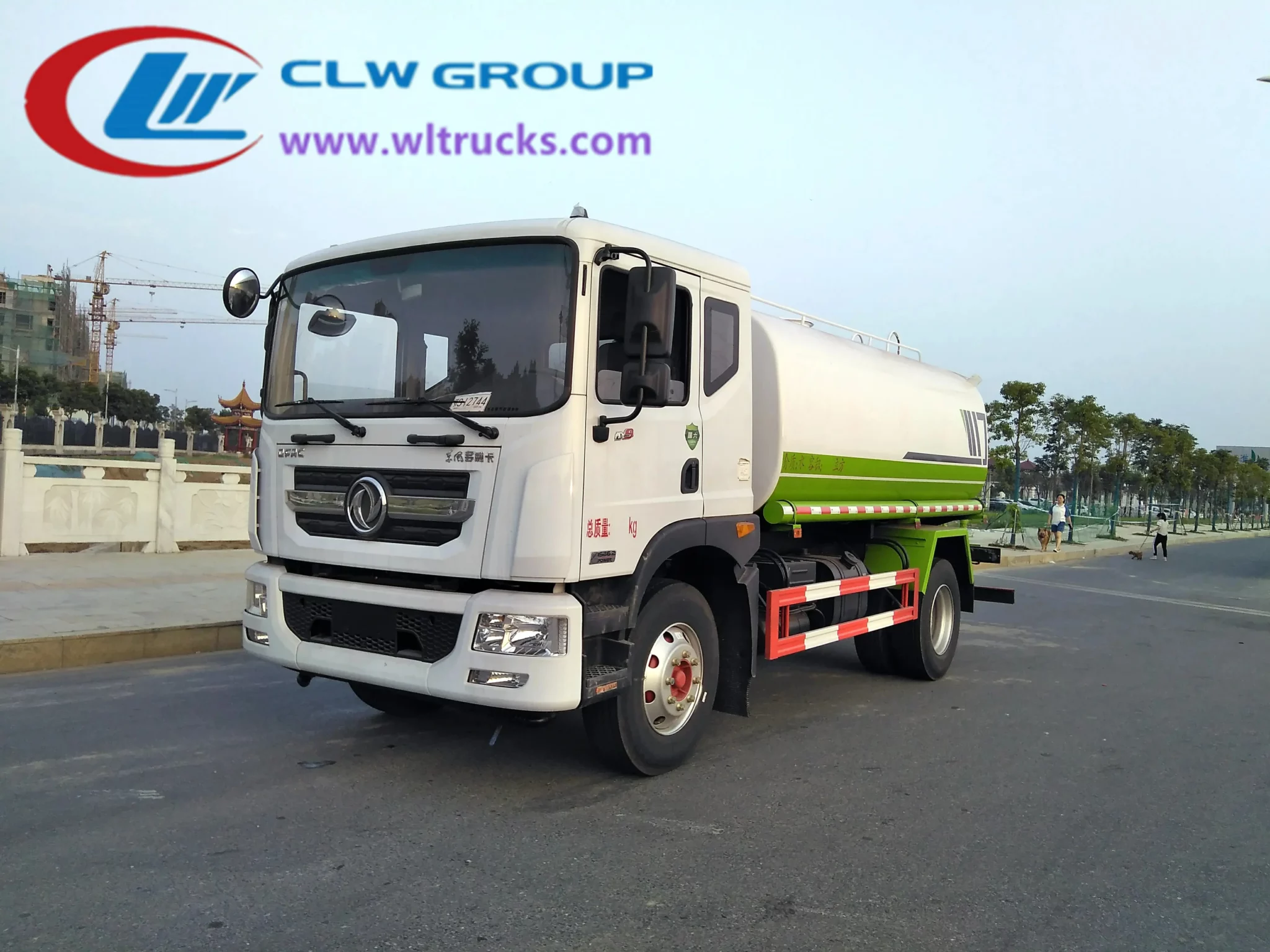

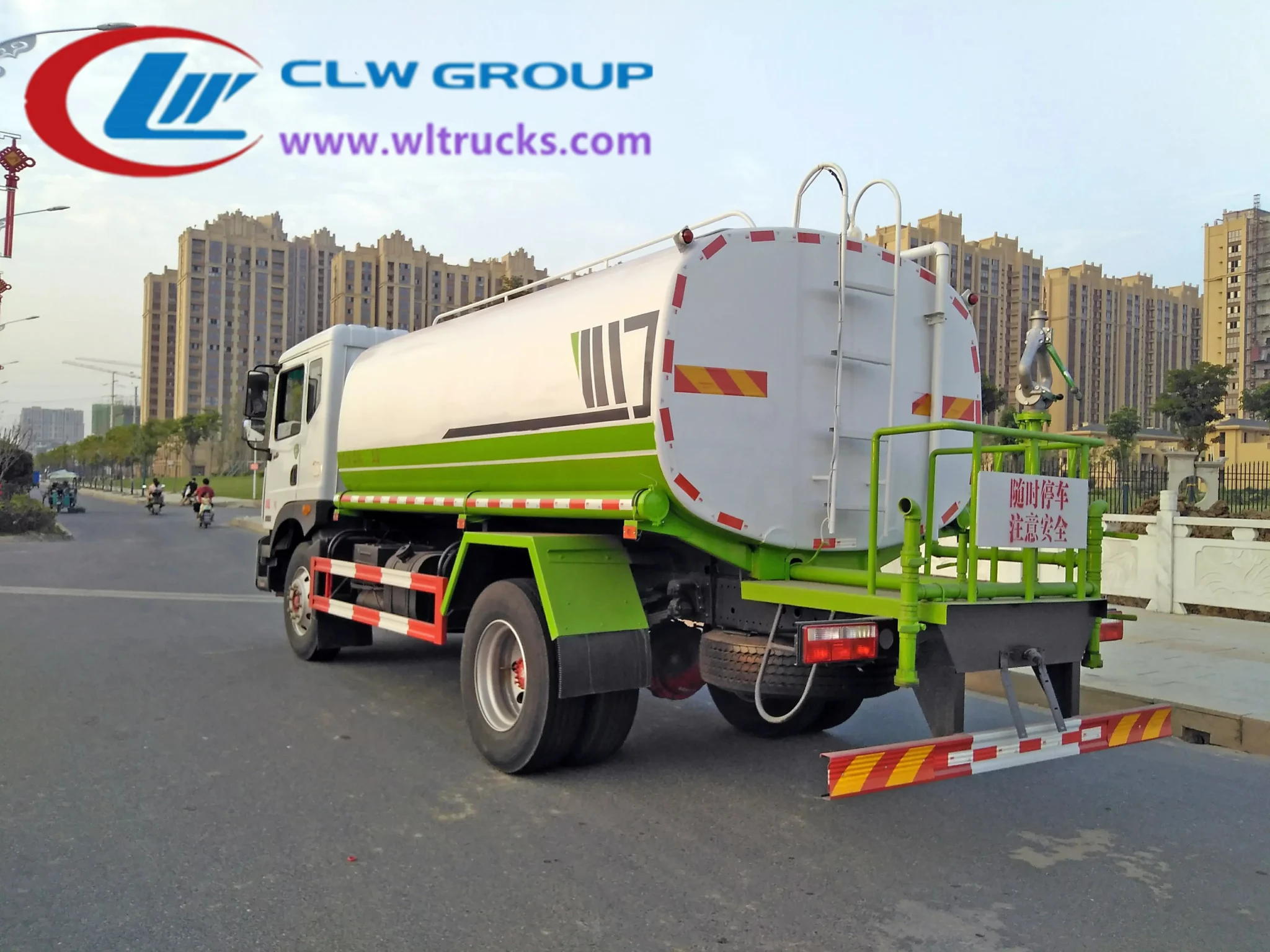

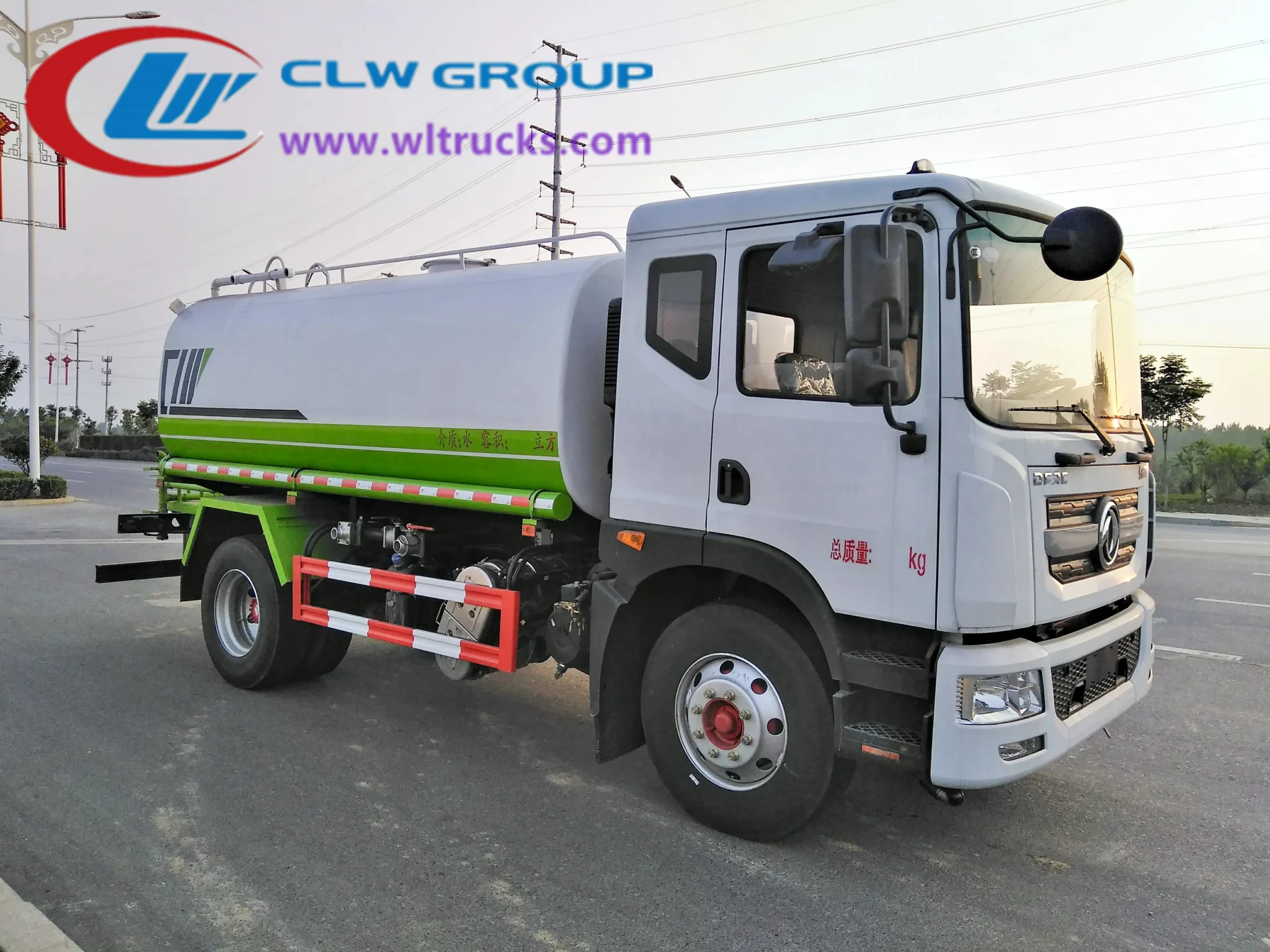

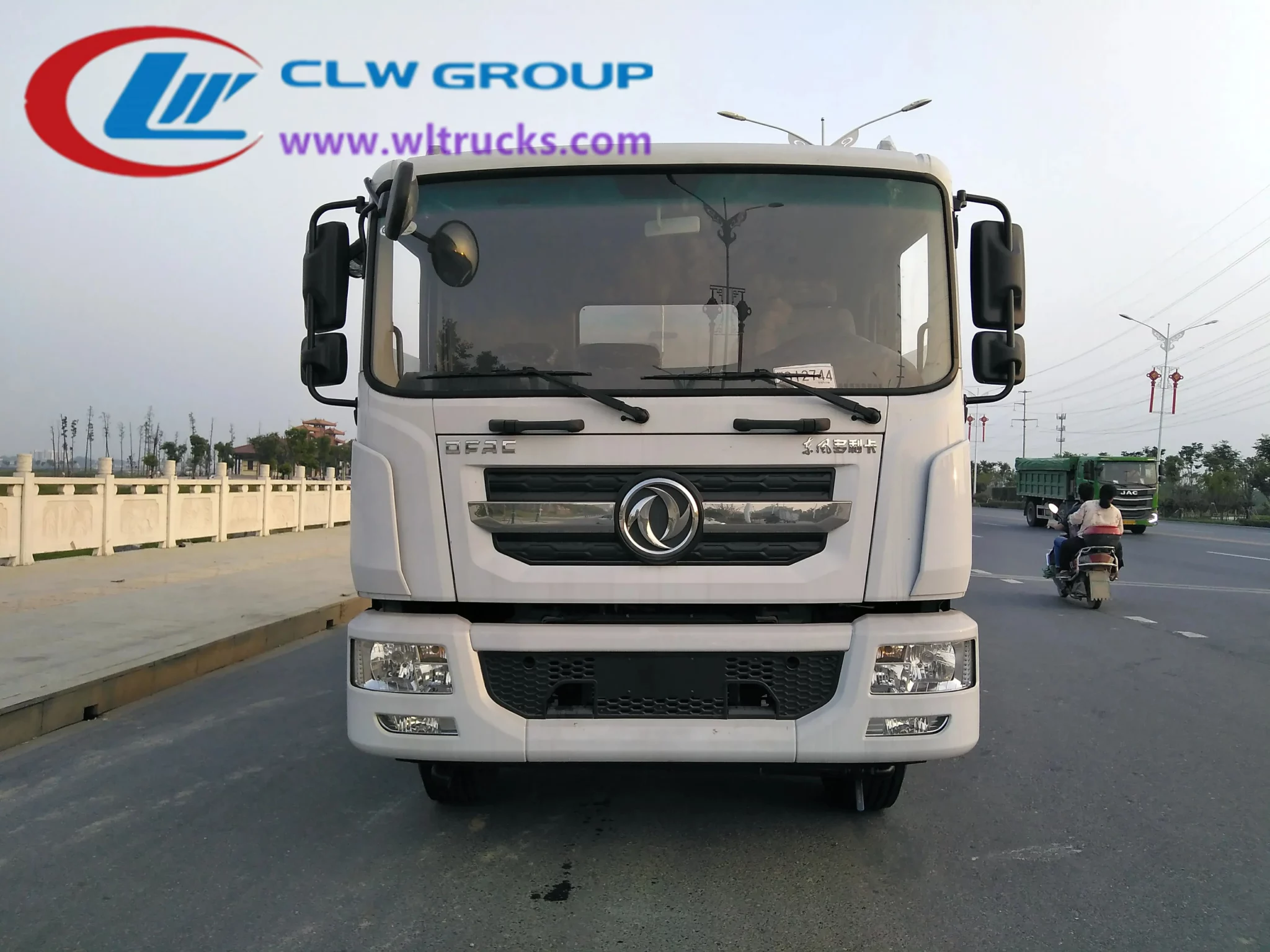

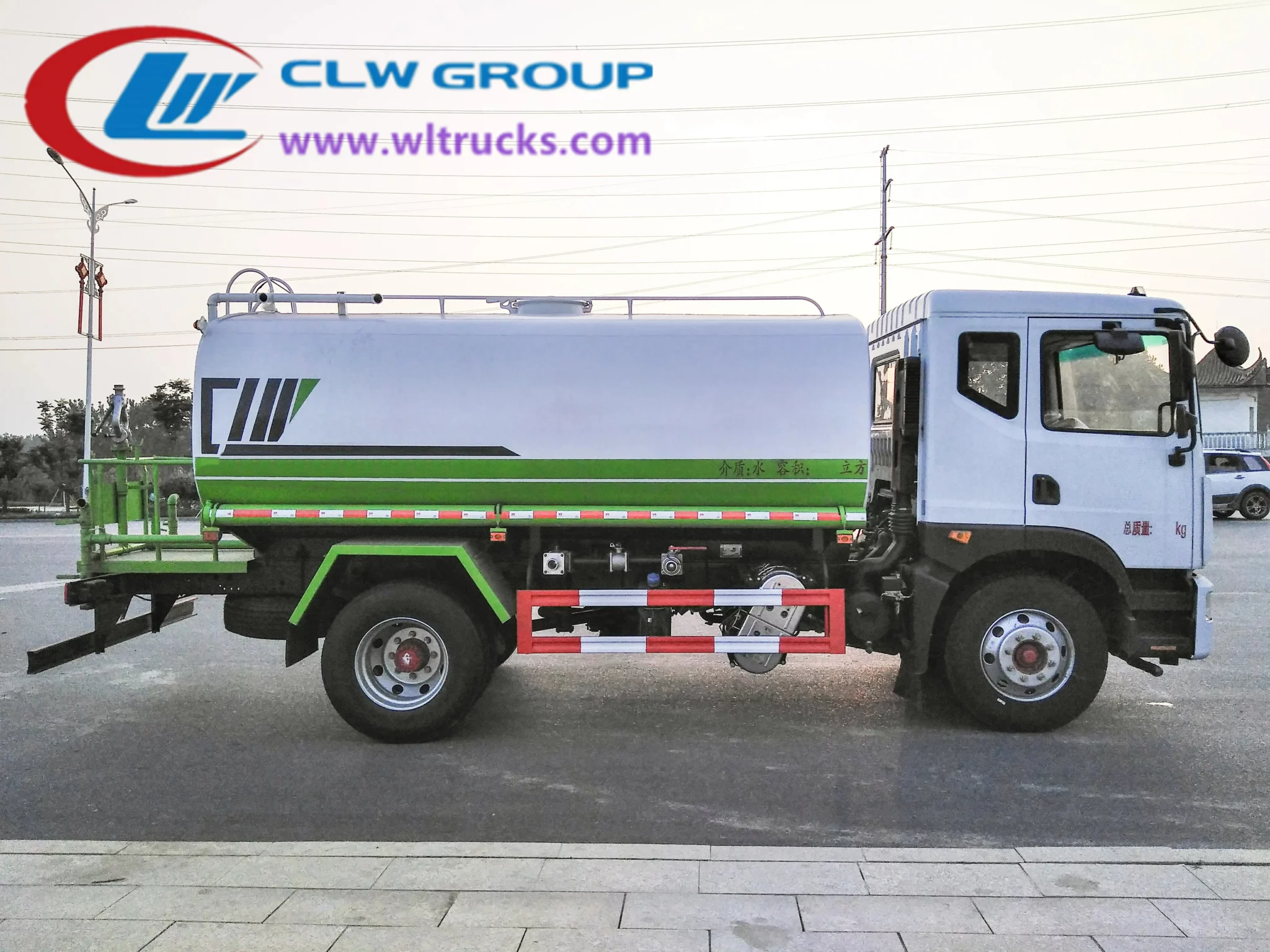

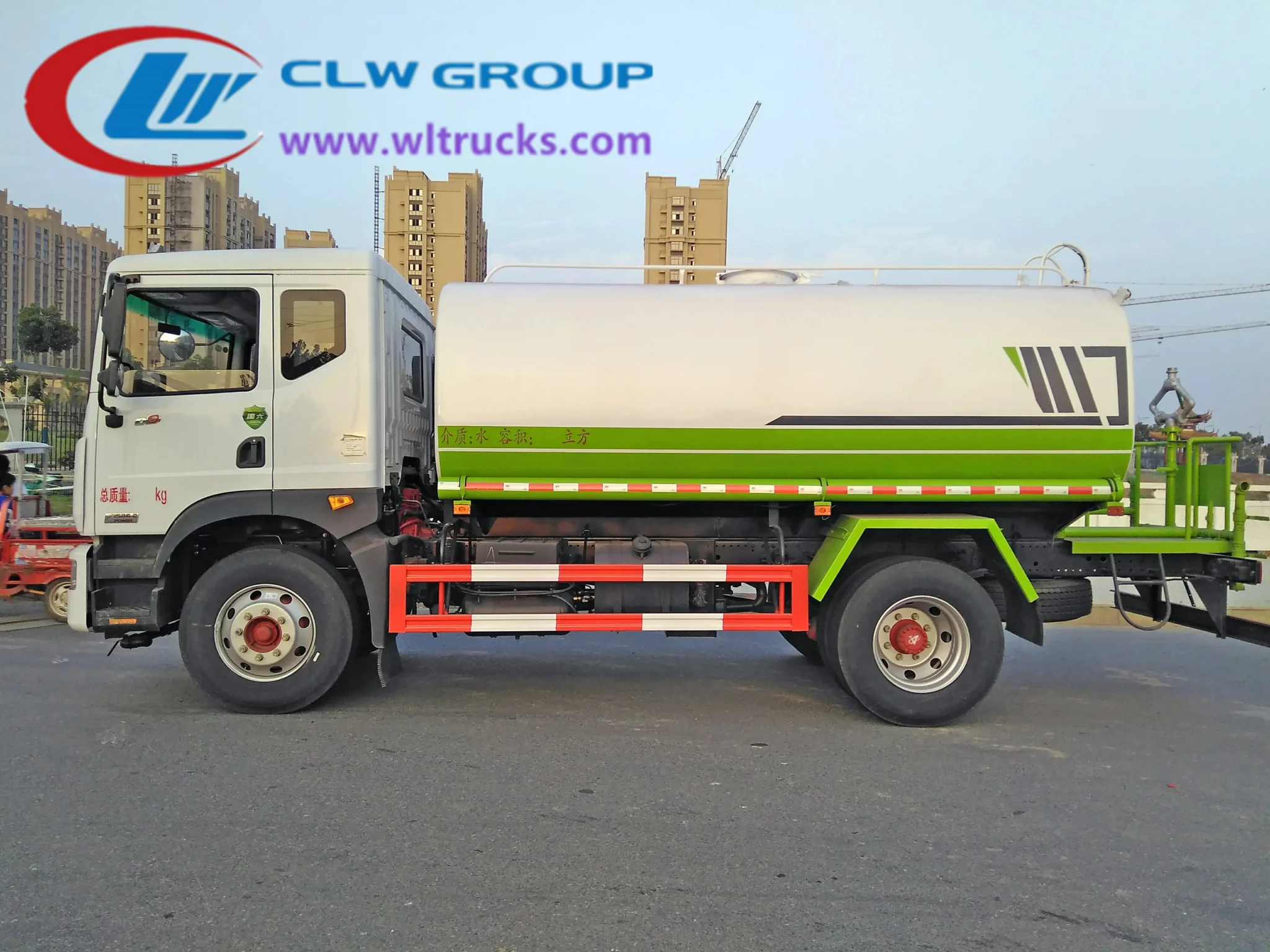

Dongfeng D9 14m3 water tanker photo
Chassis configuration: Yuchai 200 horsepower, wheelbase 4500, 2315 rows of semi-cab, Fast 8 gearbox, 1000R20 steel tires, 4.5/10 Dana front and rear axles, 250 frame, air conditioning, power windows, central locking, ABS, cut-off brake, exhaust brake.
Top loading configuration: the tank body is made of Q235, the thickness of the partition plate is 3mm, the thickness of the tank body carbon steel is 4mm, and the thickness of the head is 5mm. Large diameter straight-through ball valve, aluminum alloy tee, and thick main pipeline.
Special functions: the whole vehicle is equipped with a front flush (spray), rear sprinkler, side spray (shower), with a rear working platform, and a green sprinkler anti-aircraft gun is installed on the platform (the spray shape of the gun can be adjusted: straight punch, heavy rain, moderate rain, Drizzle, shape, continuous adjustment, 360-degree rotation).
Equipped with a fire interface, artesian valve, filter screen, equipped with high-power special sprinkler pump, the pump can be self-priming and self-discharging, the vertical suction range is ≥ 7 meters, and the sprinkler width is 214 meters, and the anti-aircraft gun range is ≥ 28 meters.
