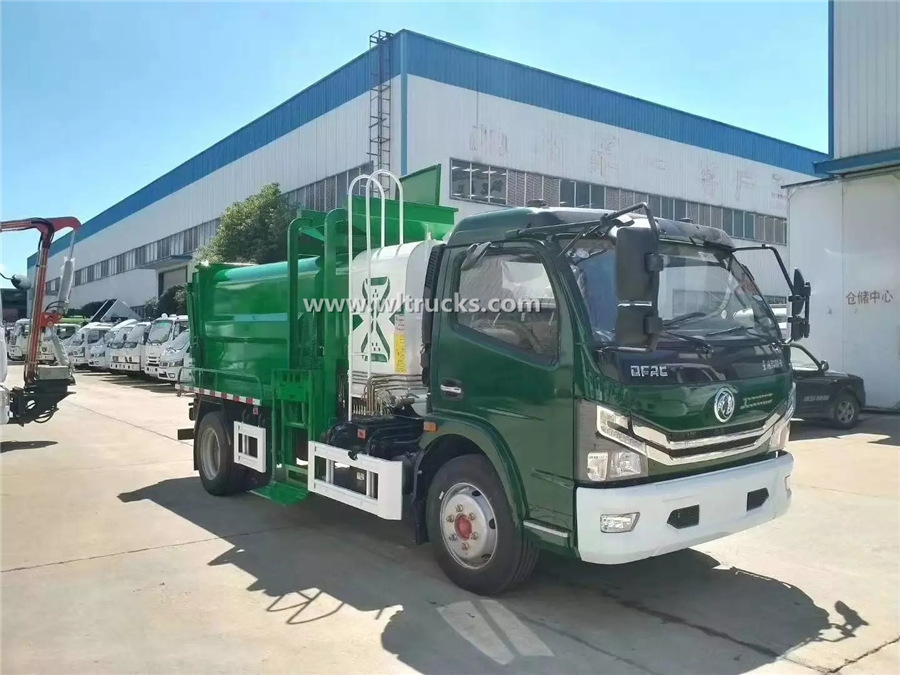

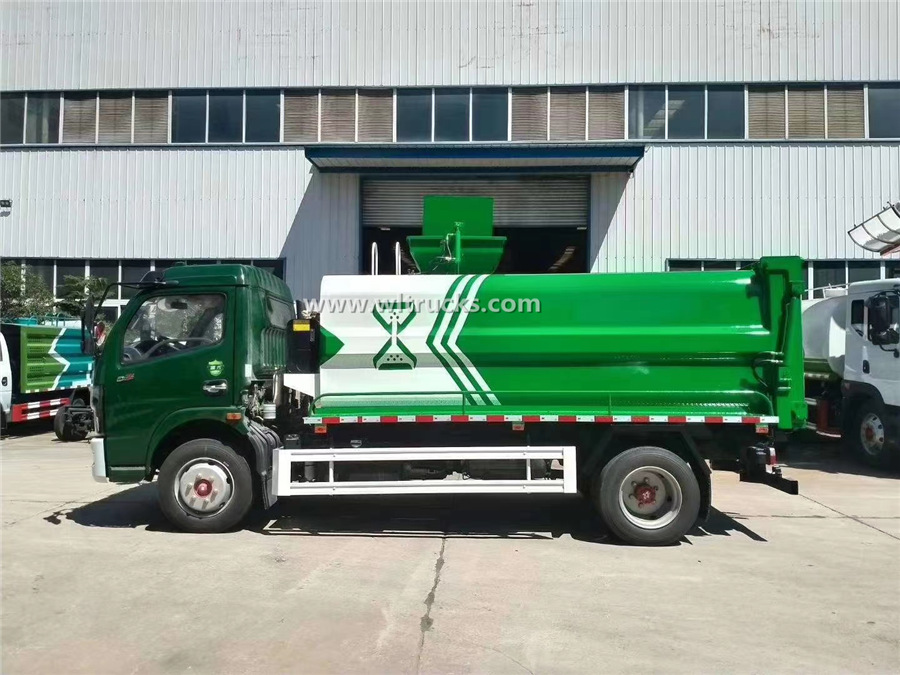

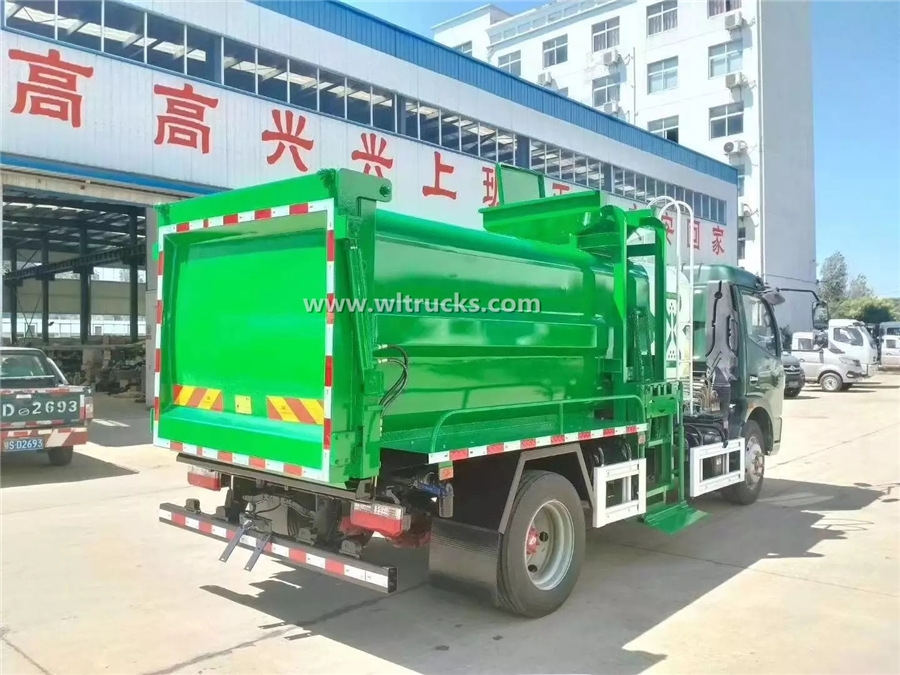

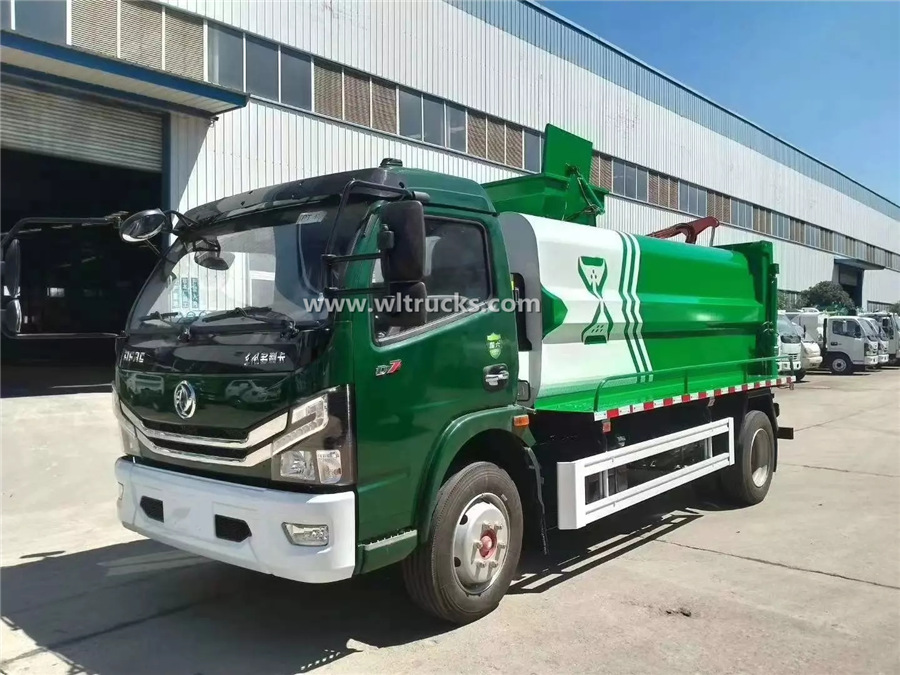

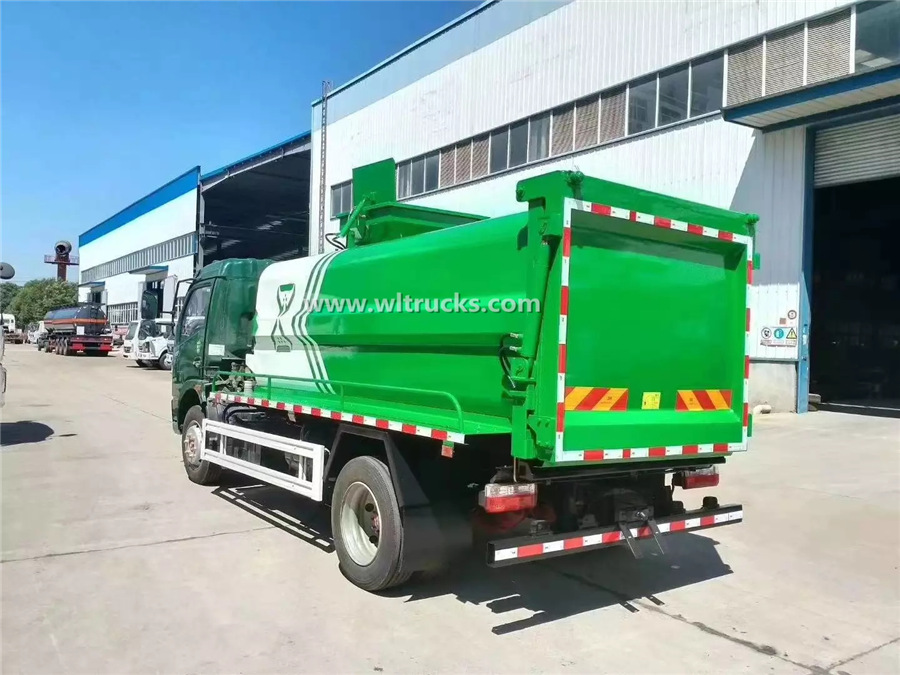

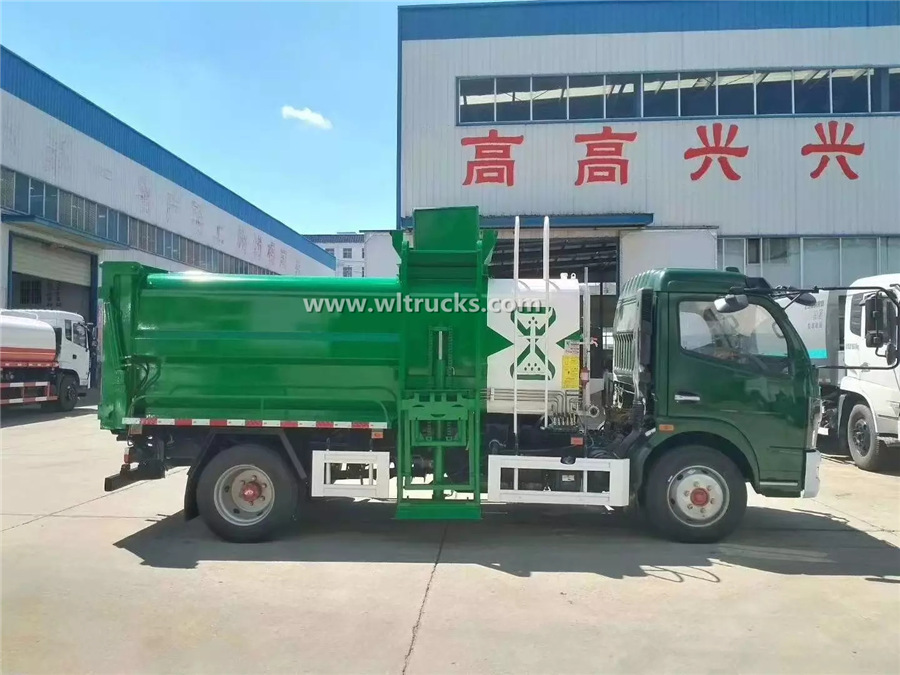

DFAC 7 tons kitchen garbage truck photos
DFAC 7 tons kitchen garbage truck Chassis configuration: Dongfeng Capote chassis, Euro VI emission standards, green cab paint, Yuchai 165 horsepower engine, 3800mm wheelbase, with Beihuan environmental protection system.

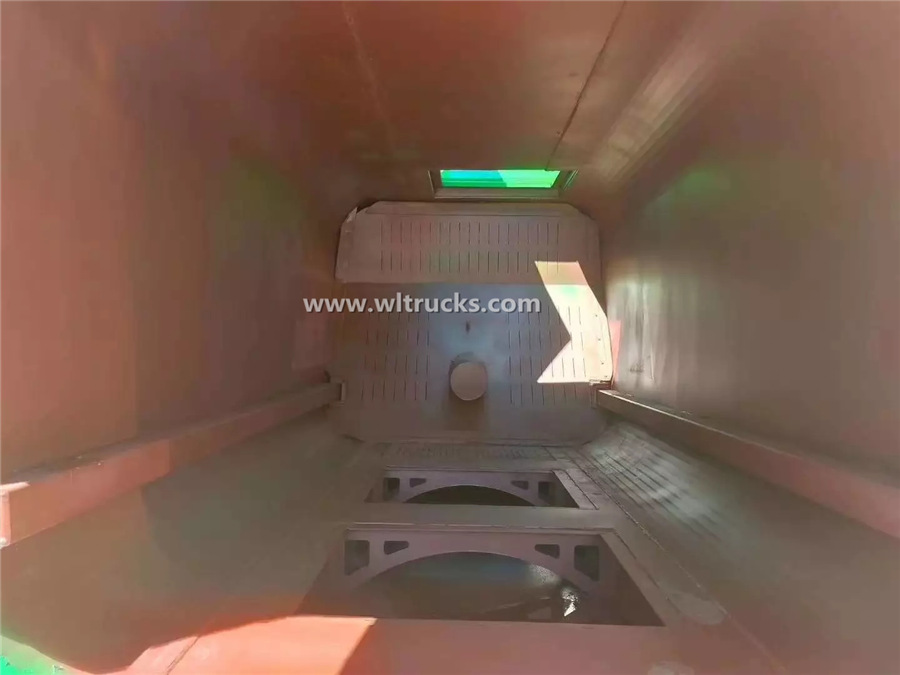

Top configuration: the tank volume is 7.5 cubic meters, the tank body is made of ordinary carbon steel material, the clean water tank has a volume of 300L, and it is equipped with a cleaning water pump. Push plate structure, the lifting device is an adjustable hydraulic link structure, which can lift a 120L or 240L plastic trash can.

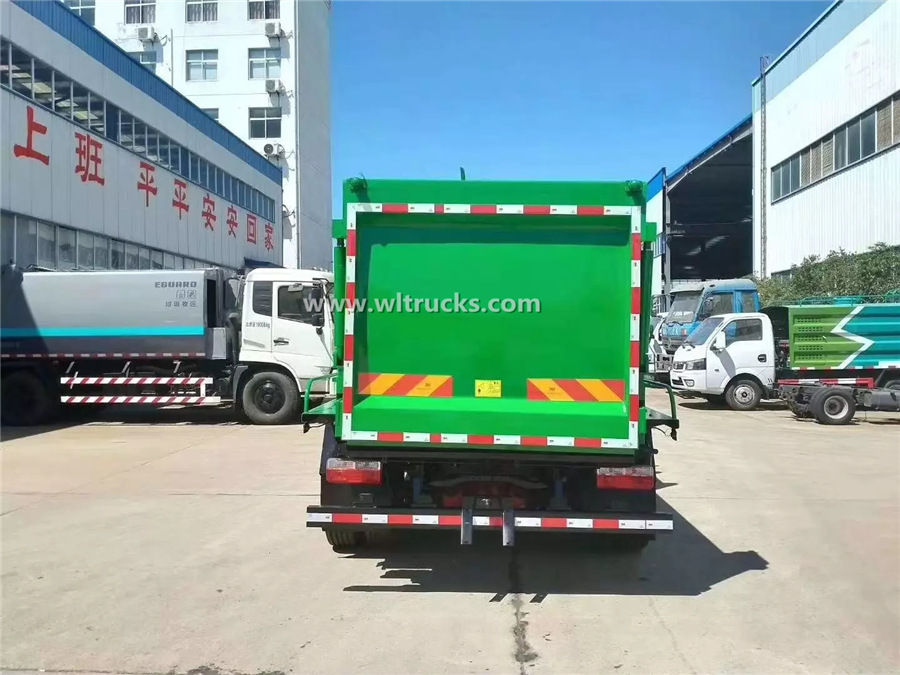

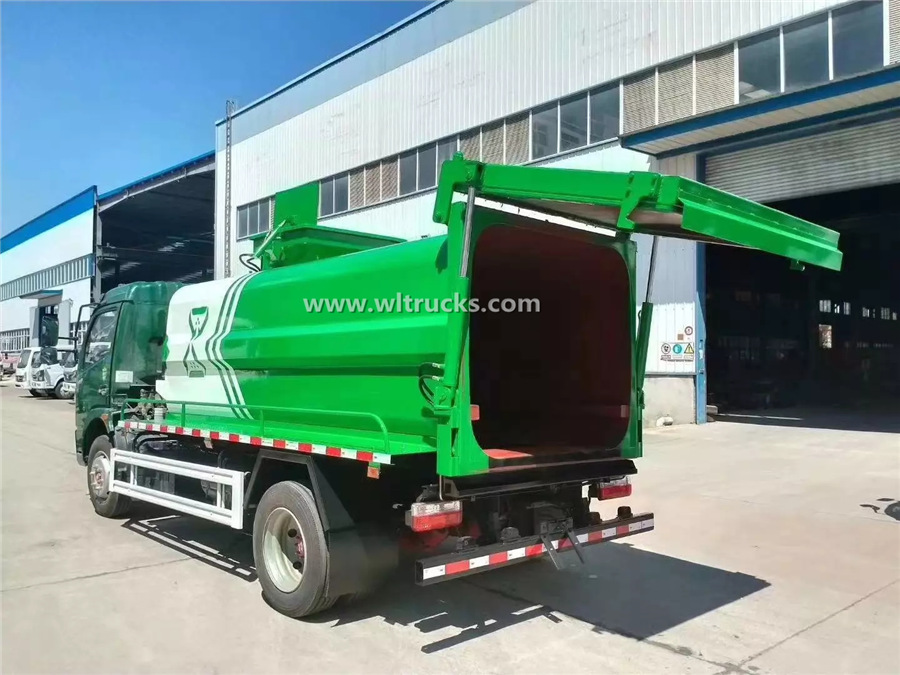

The hoist and the upper feeding cover are mechanically linked. The hoisting mechanism and the push plate should have an interlocking device. The rear door is equipped with a safety strut. The hydraulic system is equipped with a safety protection valve. There is a safety valve on the rear door lifting oil circuit. The rear door and the box body The seal should be sealed with a full circle of rubber strips.
The main hydraulic valve is controlled by an integrated multi-way valve, with control buttons in the cab and beside the hoist.
