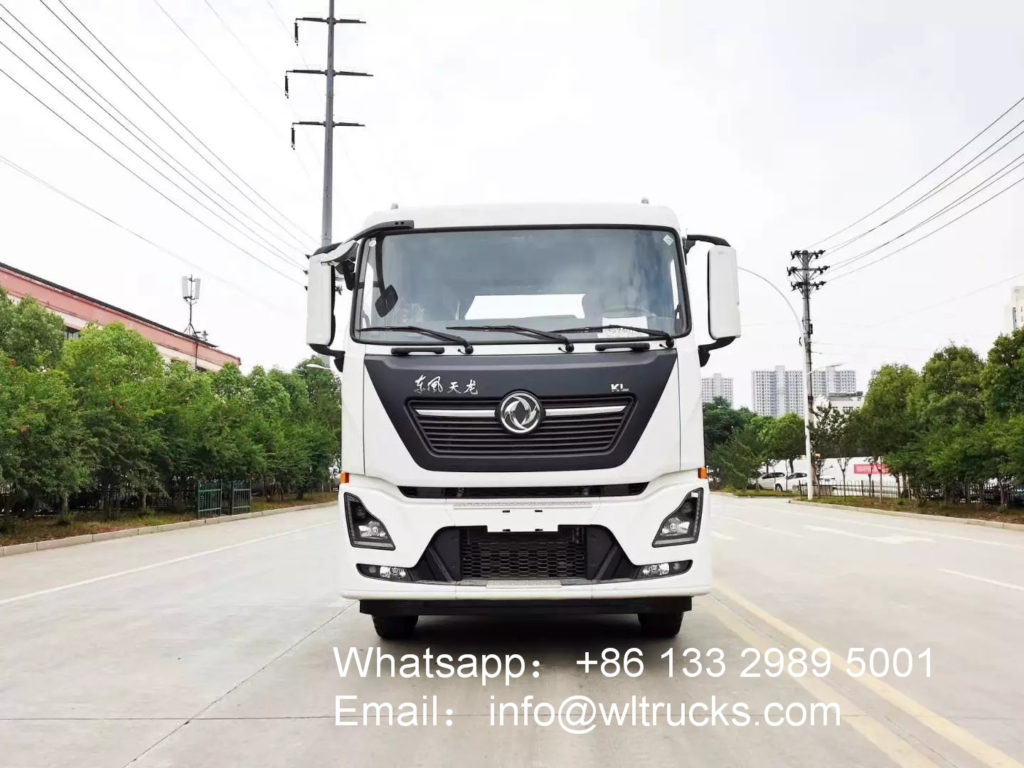

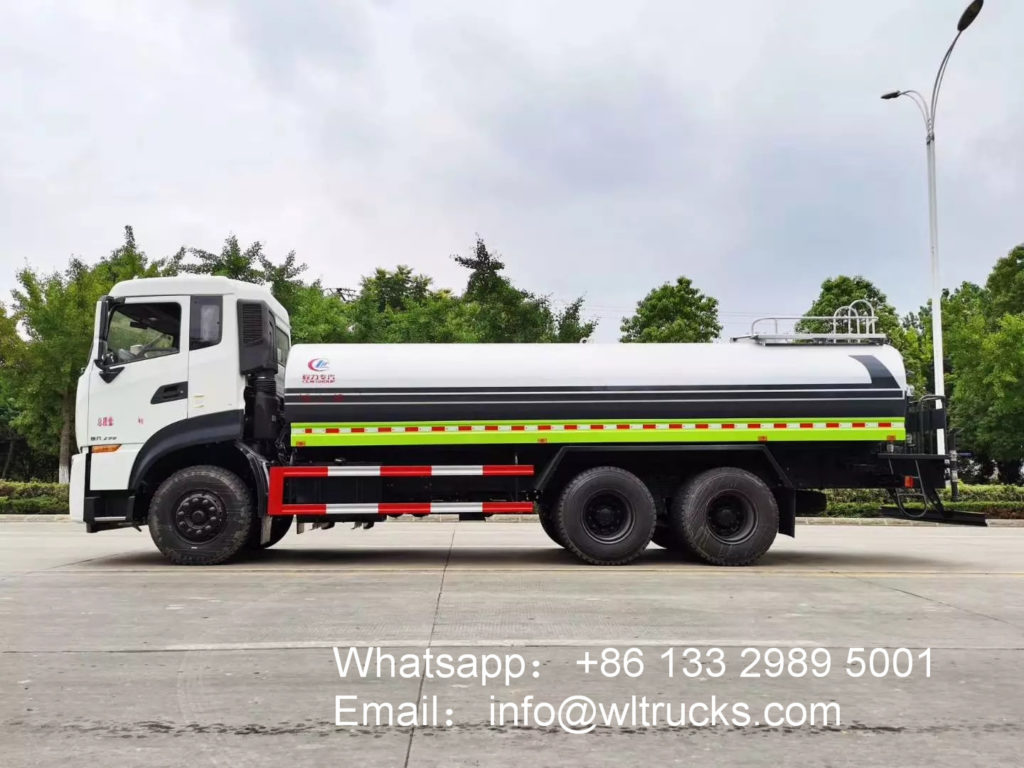

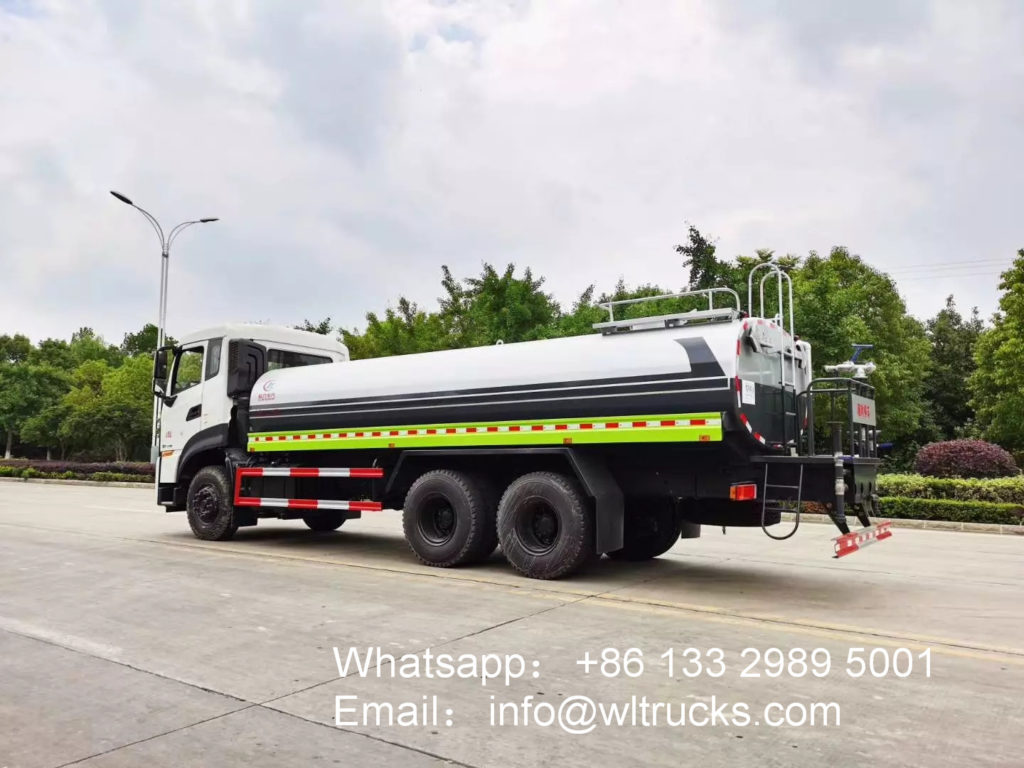

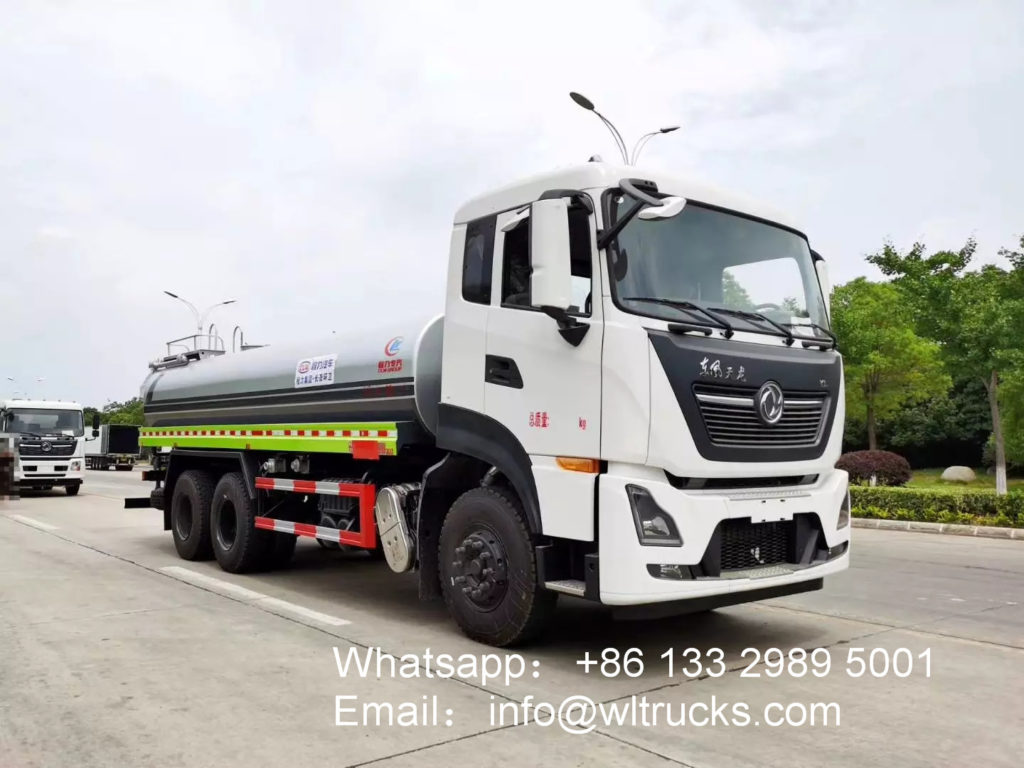

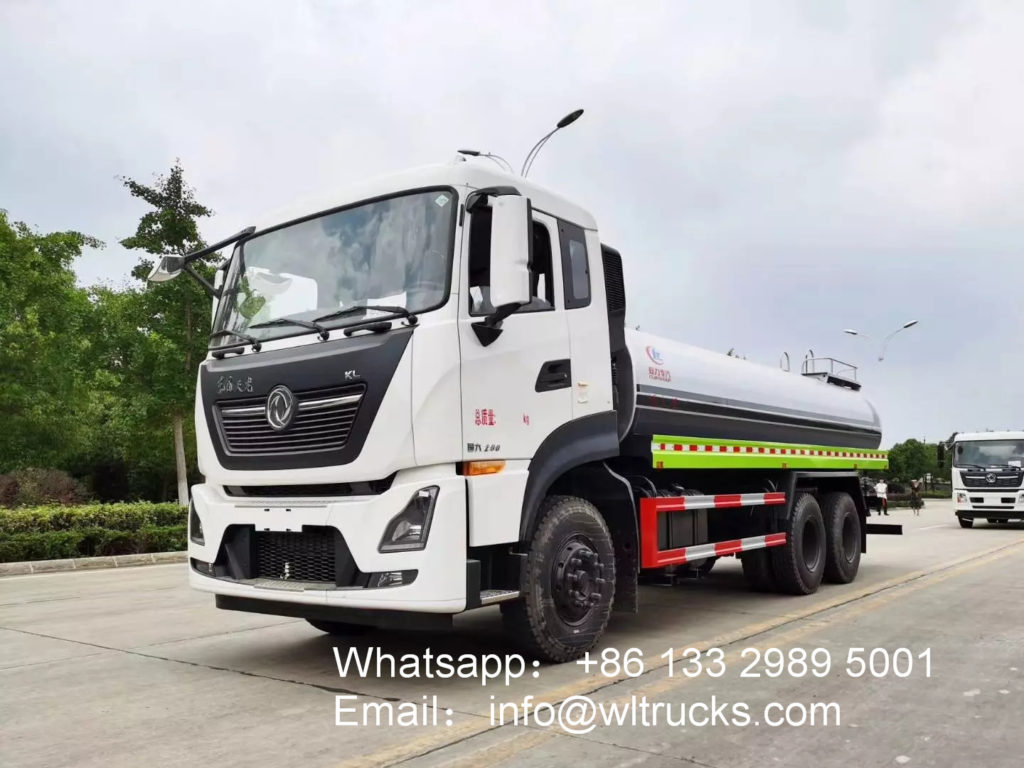

Dongfeng Tianlong CLW5252GPSD6 model 18m3 water tank truck, vehicle size: 10060 * 2550 * 3200mm, Cummins 290 horsepower six engine, 9 speed gearbox, 4350 + 1350 wheelbase, 295 vacuum tires, electric glass, original air conditioner.
Car body configuration: equipped with 50-100 water pump, Jiashan power take-off, the tank body is a conventional square tank made of high-quality steel plate of Wuhan Iron and Steel, the thickness is 5mm, and the internal anti-corrosion treatment is carried out to maximize the service life of this sanitary vehicle .
Tank size: 6900*2300*1320mm, volume about 18m3, full-vehicle large-diameter ball valve, standard forward flush, rear spray, side spray, the side of the valve body is equipped with fire ball valve, which can absorb energy and discharge, even more in case of fire Assist fire trucks to put out fires, and have a green working platform behind the water tank.

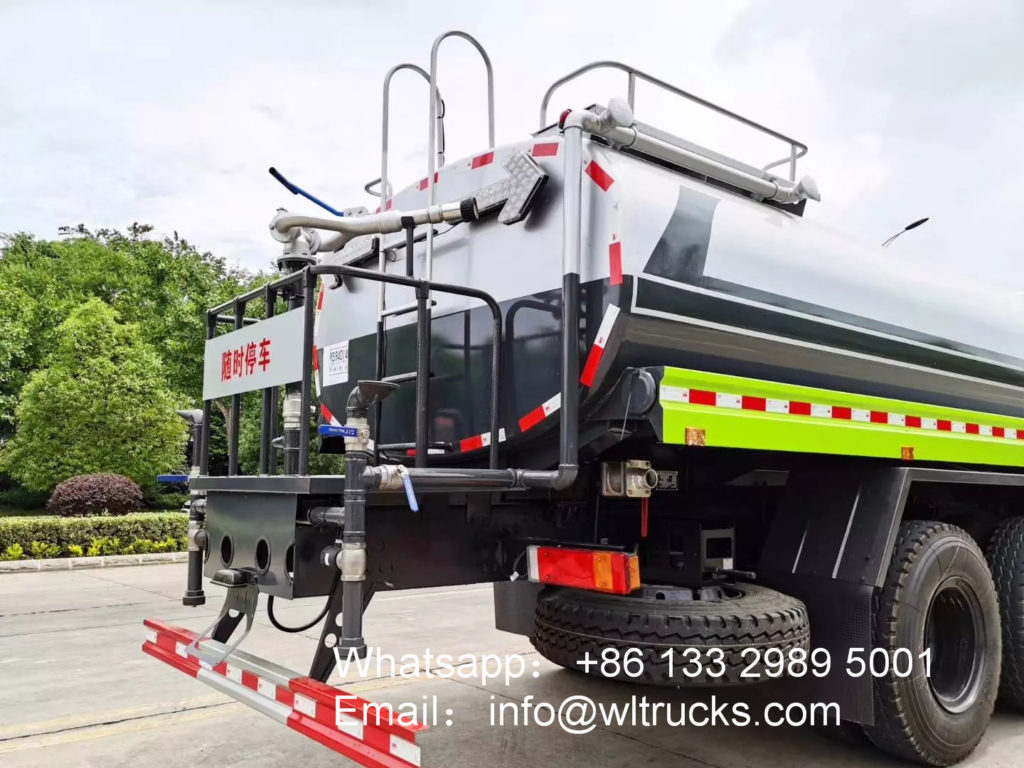

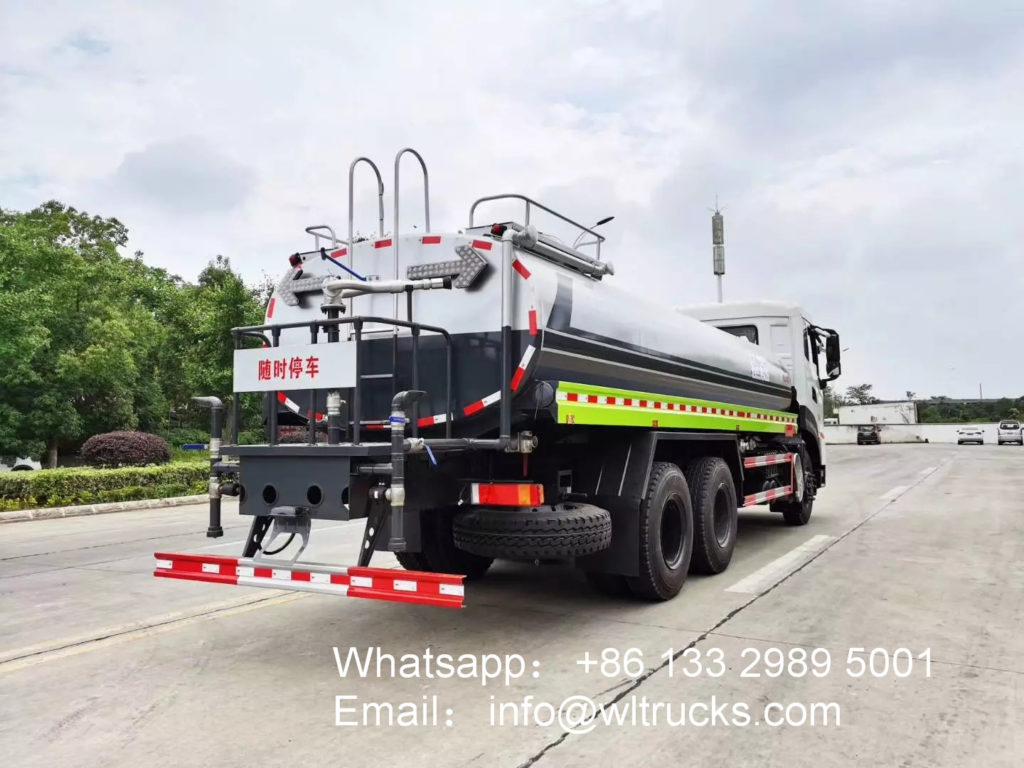

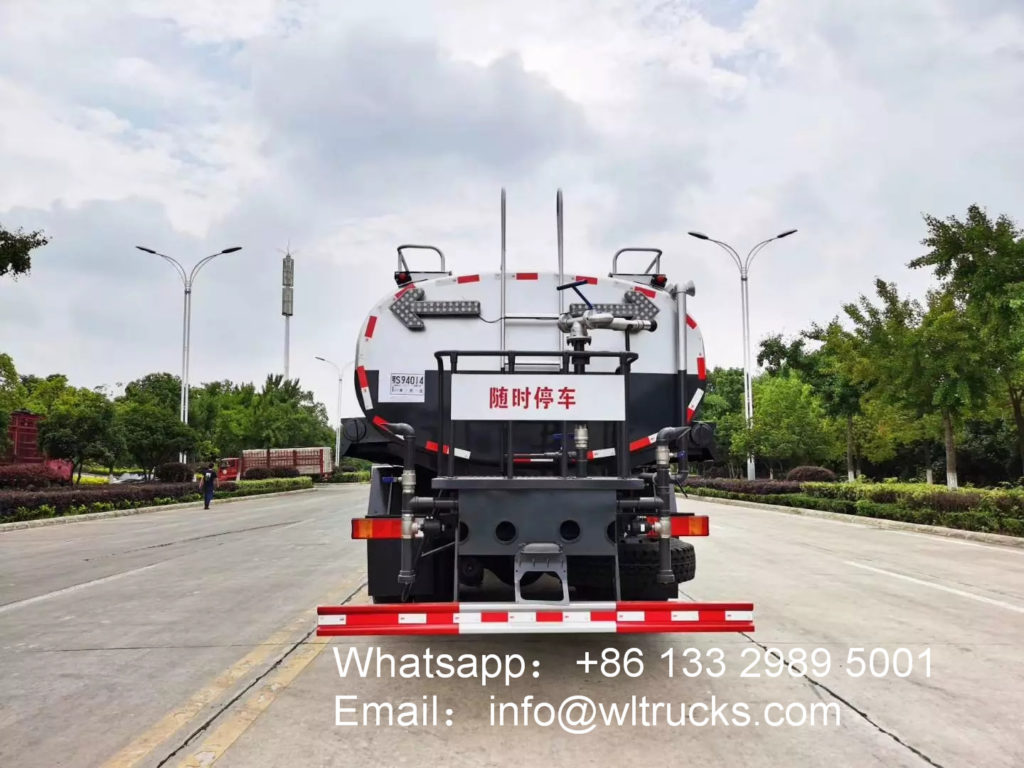

The disposable punching platform is both clean and non-slip. The bus guardrail has become the standard configuration. Safety on sanitation roads is even more important. The sprinkler cannon is mounted on the platform with a range of about 40 meters. Advanced shower has been installed. An arrow light was installed at the tail, flashing on the way. Turn bright.
The front and rear sprinklers are equipped with four pneumatic ball valves, which can complete the sprinkling operation without getting off the train. There is a free-flow port at the bottom right of the tail. The front and rear sprinklers are equipped with anti-air guns and advanced showers. Light rain, heavy rain, drizzle and rain fog.
