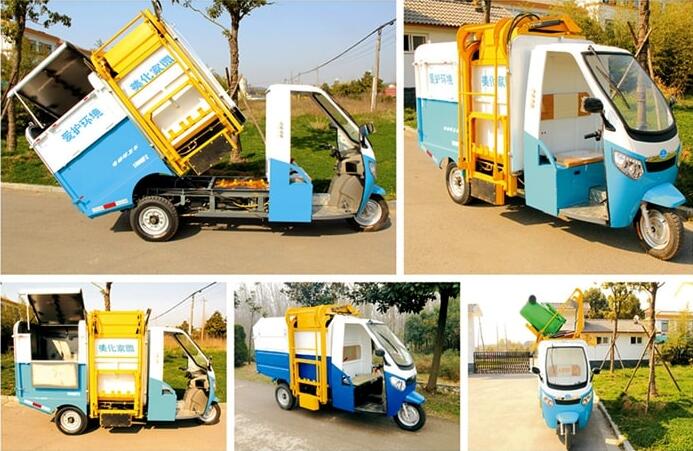

1.Electric three wheel Hanging bucket garbage truck Specification parameter configuration:
| name | Electric three-wheel rollover trailer |   |
||
| technical parameter | Rated crew | 1 person | ||
| Length*width*height | 3400×? 1320 ×? 2140 (mm) ±50 (mm) (mm) | |||
| Rated loading quality | ≤900kg | |||
| Minimum turning radius | 5 m | |||
| Curb quality | ≤910kg | |||
| Driving range | ≥80 km | |||
| Maximum speed | 25 km/h | |||
| Maximum grade | 15% | |||
| Charging time | 6-8 hours (discharge rate 80%) | |||
| Cabinet volume | 2500L | |||
| Electrical System | Electric machine | Rear axle 72V2500W high magnetic steel brushless motor | ||
| Electric control | 72V36 tube dual-mode intelligent controller | |||
| Battery | Lead-acid battery 72V100Ah | |||
| charger | Portable intelligent automatic charger | |||
| Lights and signals | LED lights, left and right turn signals, brake lights, driving lights, meters, electric horns, work warning lights (optional), etc. | |||
| Undercarriage | Frame | Integral welding frame + pickling electrophoresis baking paint | ||
| Suspension | Front suspension: Bold double-barrel hydraulic front shock absorber Rear suspension: Leaf spring non-independent suspension | |||
| Rear axle | Integrated shift differential rear axle | |||
| brake | Foot mechanical linkage drum -type rear brake + right Ruanzhou front wheel braking + Manual mechanical parking brake | |||
| Bodywork | dashboard | Injection molding dashboard, power source lock device table, the combination switch | ||
| paint | Advanced car paint | |||
| Cabinet | The box size is 2000*1200*1250, a total of 2.5 cubic meters; the main track is No. 8 channel steel, the guide wheel of the barrel hanging device is equipped with a needle bearing or a self-lubricating oil bearing; the rail of the hanging barrel is fixed on the carriage, the bucket and the bucket The barrel mechanism and the carriage adopt the split-connected square type; the upper-mounted double oil cylinder is matched with the hanging pull type 10mm iron plate symmetrical hanger. Turn the bucket angle ≥138° to ensure that the garbage is cleaned. Matching with the national standard 240 liter trash can. | |||
| The whole vehicle is small in size, short in wheelbase and flexible in maneuvering, and can be operated by only one person. It is suitable for garbage collection and touring and cleaning of roads , streets, stations , airports, docks, factories, schools, hospitals , plazas, residential quarters, sidewalks, etc. Stop and go , convenient and flexible . | ||||
2.Electric three wheel Hanging bucket garbage truck Features:
1. 72V2500W brushless differential motor, Datai shift rear axle; 72V brushless controller; 72V120Ah lead-acid power battery;
2. 72V portable intelligent automatic charging machine;
3. Driving hydraulic brake + parking brake + leading handle steering mechanism;

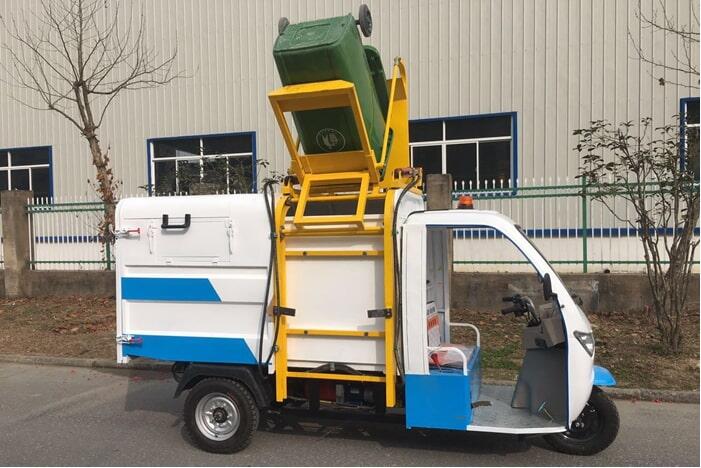

4. Design the automatic lifting and barreling device on the right side of the front of the box;
5. The box body adopts steel plate bending integral welding structure + engineering hydraulic self-unloading device, which is easy to operate;
6. The car body is made of streamlined metal for beautiful appearance.
3. three electric Lun car vehicle rollover hanging bucket price grid: 24000-26500 RMB .
(The actual price is subject to the sales manager’s quotation, this is the reference price).
