[Technical parameters of the vehicle] |
|||||
|
product name |

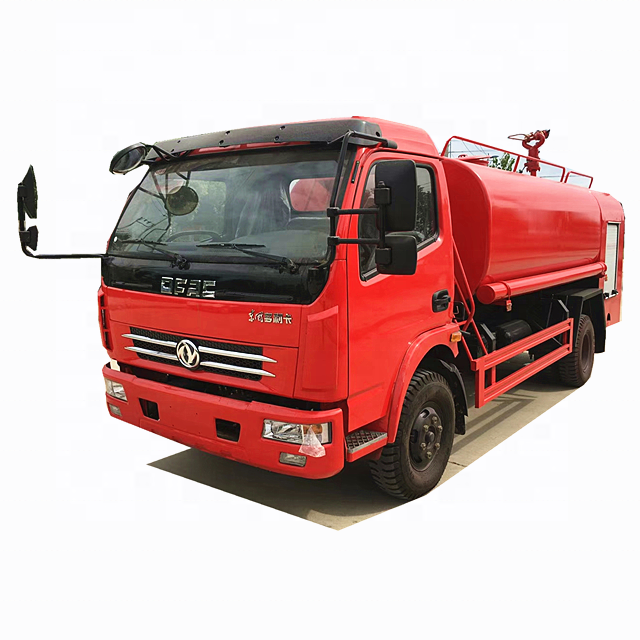

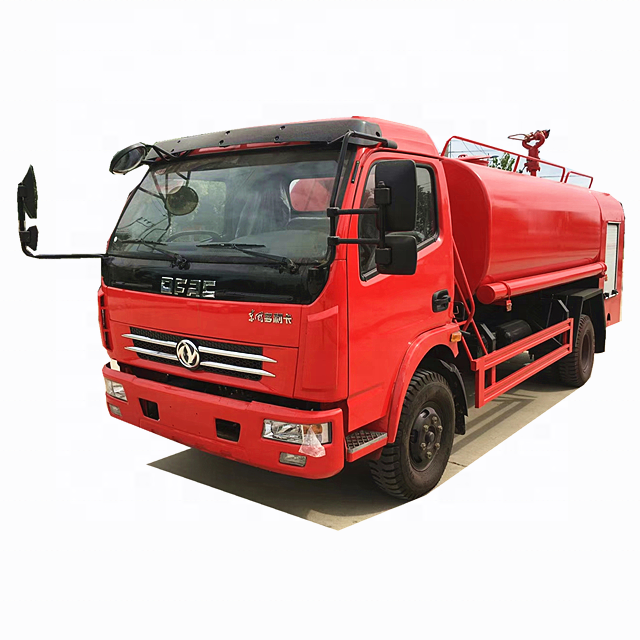

CL5090GPSL 5000 liter water tank fire truck |
||||
|
Total mass (kg) |
9400 |
Tank volume (m3) |
6 |
||
|
Rated mass (kg) |
5200 |
Dimensions (mm) |
6900X2350X2800 |
||
|
Curb weight (kg) |
4005 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
3 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
22/17 |
Front suspension/rear suspension (mm) |
1180/1920 |
||
|
Axle load (kg) |
3460/5940 |
Maximum speed (km/h) |
90 |
||
|
Remarks: |
Remarks: The overall dimensions of the tank (length × long axis × short axis) (mm): 3800 × 1600 × 1050, the effective volume of the tank is6cubic meters. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
EQ1090GLJ |
Chassis name |
Cargo Chassis |
||
|
Trade name |
Dongfeng |
manufacturer |
Dongfeng Motor Corporation |
||
|
Number of axes |
2 |
Number of tires |
|||
|
Wheelbase (mm) |
3800,4400 |
||||
|
Tire specifications |
|||||
|
Fuel type |
Diesel oil |
Rear track (mm) |
|||
|
Emission standard |
GB3847-2005, GB17691-2005 National IV |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
CY4102-CE4C ISD140 43 CY4102-CE4K |
Dongfeng Chaoyang Chaochai Power Co., Ltd.
Dongfeng Cummins Engine Co., Ltd.
Dongfeng Chaoyang Chaochai Power Co., Ltd. |
3856 4500 3856 |
91 103 105 |
||
