[Technical parameters of the vehicle] |
|||||
|
product name |

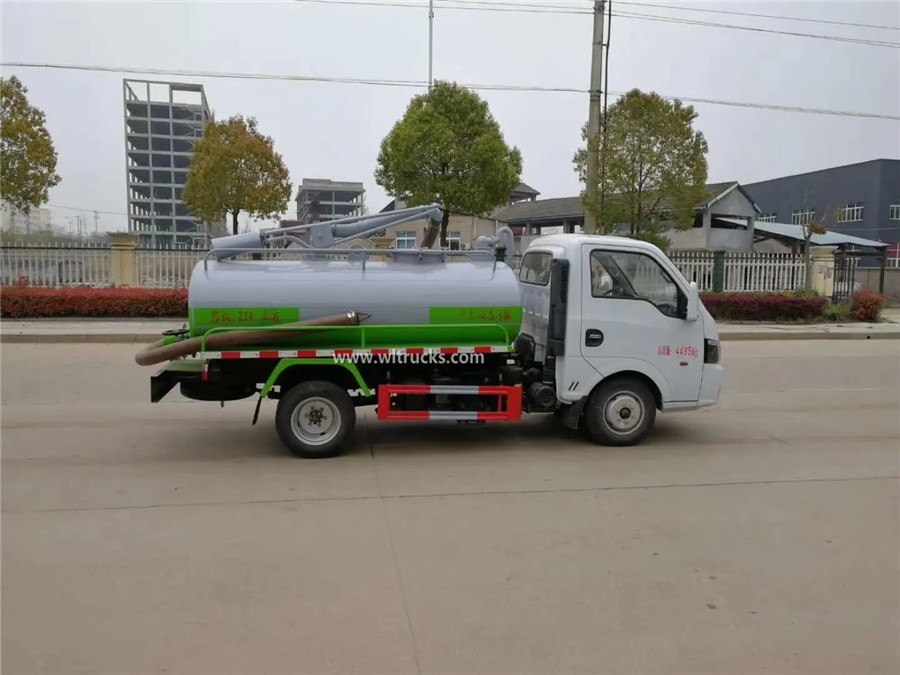

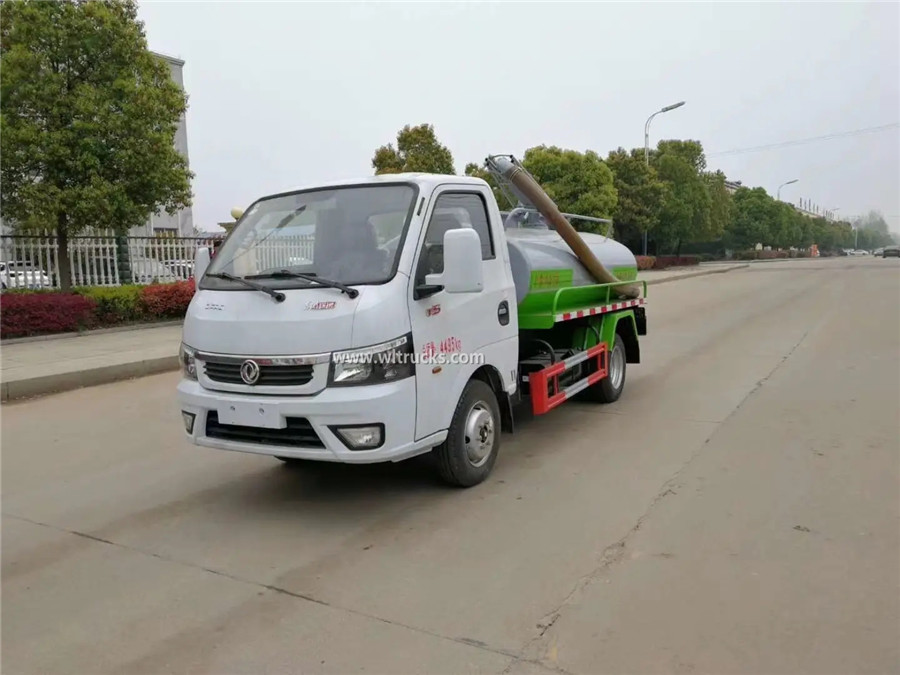

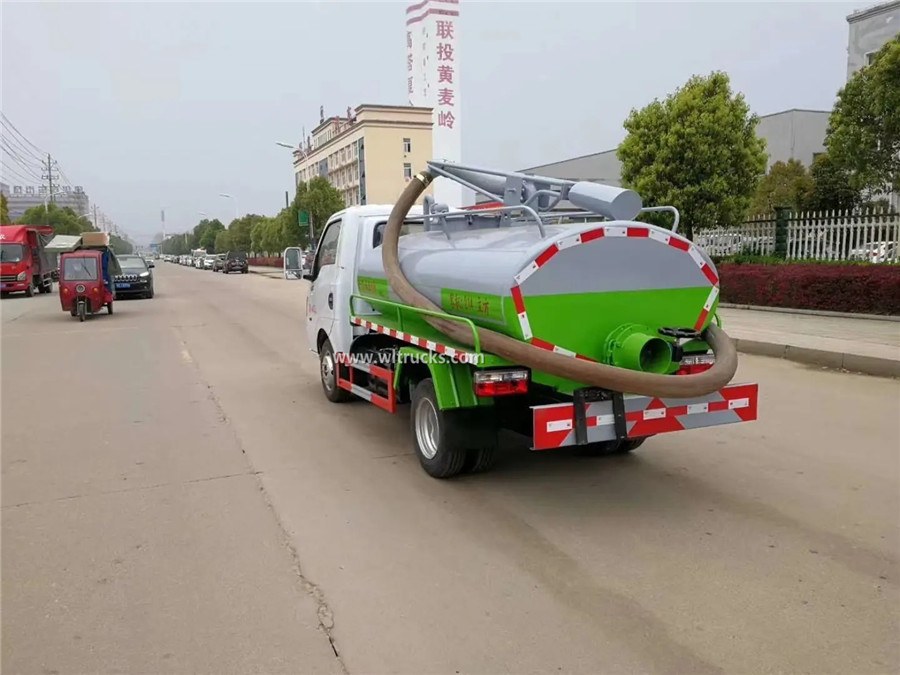

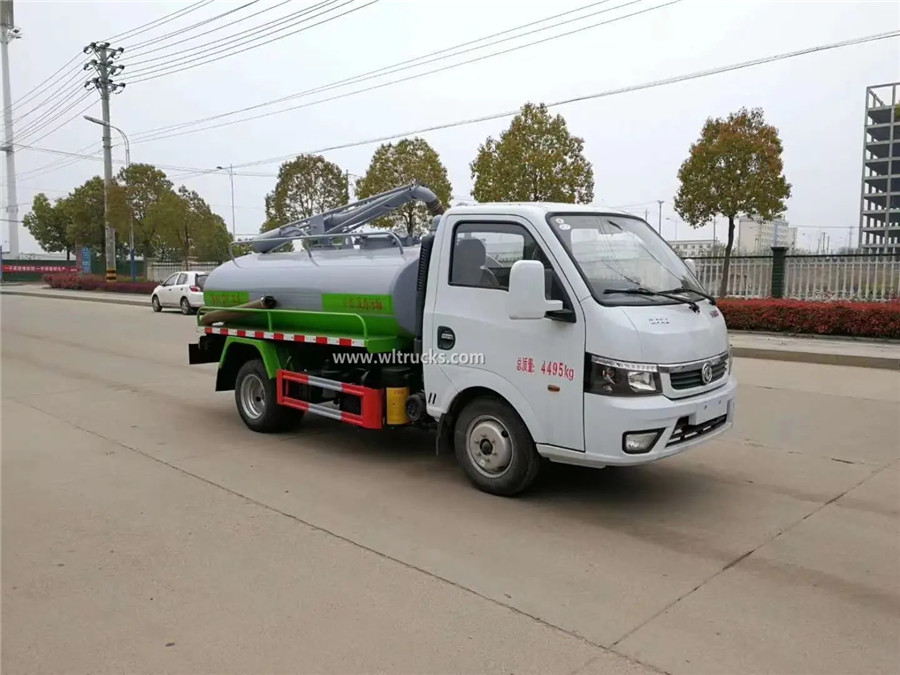

CLW5045GXEE excrement suction truck |
||||
|
Total mass (kg) |
4495 |
Tank volume (m3) |
3 |
||
|
Rated mass (kg) |
1635 |
Dimensions (mm) |
5400X1800X2250 |
||
|
Curb weight (kg) |
2730 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
2 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
20/20 |
Front suspension/rear suspension (mm) |
1190/1410 |
||
|
Axle load (kg) |
1650/2845 |
Maximum speed (km/h) |
110 |
||
|
Remarks: |
Remarks: The effective volume of the tank is3cubic meters. Tank dimensions (long × long axis × short axis) (mm): 2850 × 1400 × 800. The side/rear protection material is Q235, the side protection is connected by bolts, and the rear protection is connected by welding. The rear protection section size is 200×50mm, and the lower edge is 500mm above the ground. The special device is a tank and a pipeline system for the suction operation of the liquid sewage in the septic tank. It uses a 2800 wheelbase chassis.Optional vehicle appearance style. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
EQ1045SJ16DC |
Chassis name |
Truck chassis |
||
|
Trade name |
Dongfeng |
manufacturer |
Dongfeng |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
2800, 3000, 3200 |
||||
|
Tire specifications |
185R15LT 8PR,6.00R15 10PR |
||||
|
Number of leaf spring |
3/5 |
Front track (mm) |
1369,1387 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1242,1342 |
||
|
Emission standard |
GB3847-2005, GB17691-2018 National Ⅵ |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
Q23-95E60 |
Anhui Quanchai Power Co., Ltd. |
2300 |
70 |
||
