The 8 ton truck mounted crane means that the boom can lift up to 8000kg without extending. The specific lifting weight is related to the length of the boom, the height of the lift, the working angle of the crane and the crane brand.
For example, when the 8-ton truck is extended horizontally, it can only lift 1100kg, and when it is extended 9 meters, it can lift 1750kg, and so on. The shorter the boom is extended, the greater the lifting capacity.
In addition to the Dongfeng Yuhu, Dongfeng Tianjin, Jiefang and other brands, the commonly used chassis of the crane is also Dongfeng Special Dealer, Dongfeng Liuqi, etc., the top part of these chassis can be equipped with 5 tons, 6.3 tons, 8 tons crane, different The larger the crane is, the larger the space occupied by the crane. In the case of ensuring the length of the vehicle, the cargo box will be shortened accordingly.
The crane brands include XCMG, SANY, stone coal, etc. It can reach 4mm, 5mm thick, and the length can be 5.6m, 5.8m, 6m. In order to meet the individual needs of customers, the cargo box can be made into manual pull-out type or hydraulic pull-out type.
The following are Dongfeng special Shang, Dongfeng Liuqi 8 ton truck crane common configuration and pictures.

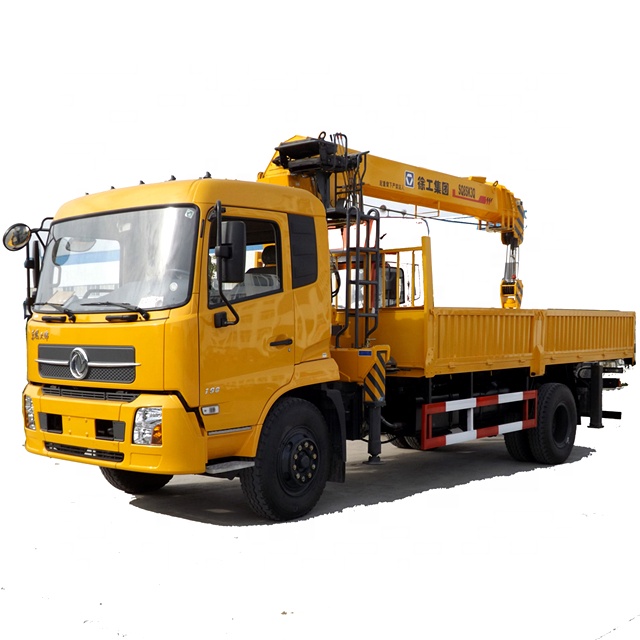

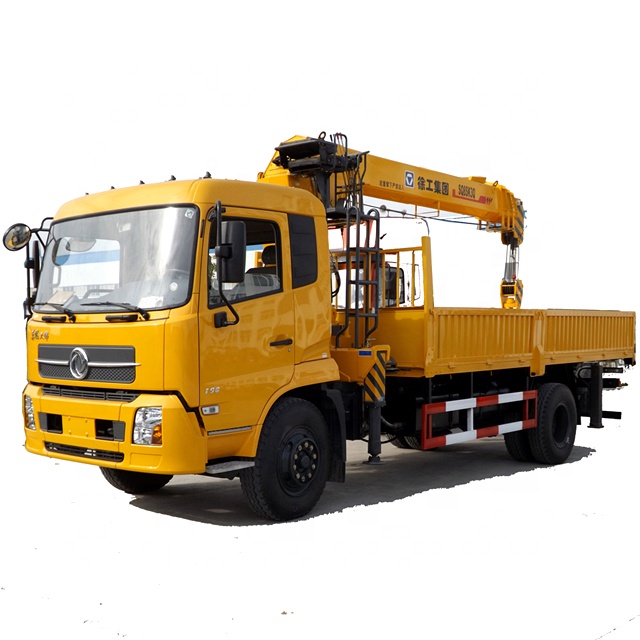

Model 1: Dongfeng Teshang 8 ton truck crane
Chassis configuration:
It adopts the special chassis of Dongfeng Teshang truck crane, D701 row and half cab, Yuchai 180 horsepower country five engine, Shaanxi Fast 8-speed gearbox, with high and low gears, 5.5 tons front axle, 11.5 tons rear axle, 300mm Double-layer partial three-layer reinforced beams, 10.00 steel tires for the whole vehicle, with original air conditioner, ABS, directional boost, air brake brake system, wheelbase 5100mm, vehicle length 9 meters, cargo box 6 meters, cab with knuckles Oil switch, heavy load, medium load, no load can be switched at any time, the chassis comes with the original power take-off, which is convenient for loading power on the crane.
Bodywork configuration:
It is equipped with 8-ton truck-mounted four-section crane. The crane can be selected from XCMG, SANY, Shimei and other brands. These three brands have a 360-degree full-rotation method, and the dual-pump operation mode makes the lifting smooth. , Fast speed, XCMG 8-ton crane working radius is 11.5 meters, lifting height is 13.5 meters, SANY 8-ton crane working radius is 12 meters, lifting height is 14.6 meters, the front hydraulic legs are standard, and fixed rear supports can be added Legs or hydraulic rear outriggers, fixed rear outriggers can only be telescopic up and down, but not horizontally, hydraulic rear outriggers can stretch horizontally and vertically, the outriggers have a large span, and they are safer to lift. Seat, radiator and other devices.
Vehicle price: 2.62-31.5 million RMB
Dongfeng Special Dealer’s 8-ton truck crane adopts the chassis produced by Dongfeng Commercial Vehicle Company, U-shaped front face, and the four-point suspension shock absorption design of the cab, good shock absorption effect, the biggest highlight of this model is the choice of the original factory The three-story straight-through girder has stronger loading capacity or tensile strength. Compared with the horsepower of the same size, this car has a larger loading capacity. The commonly used power is the Yuchai engine, which is more suitable for climbing. The recommended index ★★ ★★
For more product details, please click:
https://www.wltrucks.com/product/dongfeng-tianjin-6ton-to-8ton-truck-with-crane/
Model 2: Dongfeng Liuqi 8 ton truck-mounted crane
Chassis configuration:
Using Dongfeng Liuqi 8-ton truck-mounted special chassis, keel frame, stylish and beautiful, Chenglong M3 luxury cab, Yuchai 180-horsepower or 200-horsepower country five engine, Shaanxi 8-speed gearbox, with high and low gears, 153 rear Bridge, 273mm double-layer partial three-layer reinforced beams, 10.00 steel wire tires for the whole vehicle, with original air conditioner, ABS, direction assist, air brake brake system, wheelbase 5100mm, cargo box 6.1 meters.
Bodywork configuration:
It is equipped with an 8-ton truck-mounted four-section crane. The crane can be selected from XCMG, SANY, Shimei and other brands. These three brands have a 360-degree full-rotation method, and the dual-pump operation mode makes the lifting smooth. , Fast speed, XCMG 8-ton crane working radius is 11.5 meters, lifting height is 13.5 meters, SANY 8-ton crane working radius is 12 meters, lifting height is 14.6 meters , standard front legs can be installed, fixed rear legs can be added Or hydraulic rear legs, the fixed rear legs can only be telescopic up and down, but not horizontally. The hydraulic rear legs can be extended horizontally and vertically. The legs have a large span, which is safer to lift, and high-altitude seats can be added as needed. Chairs, radiators and other devices.
Vehicle price: 25.5-29.6 million RMB
Dongfeng Liuqi 8-ton truck crane is a high-end product in the Dongfeng series, which is comparable to Dongfeng Tianjin and Dongfeng Tianlong. It has dual shock absorption effects of mechanical shock absorption and hydraulic shock absorption. The driving experience is better. Compared with the 8-ton truck-mounted crane, the girder is stamped and formed by a 6300-ton press at one time, which is more resistant to bending and compression, and has a more choice in power. You can choose a 200-horsepower engine, which has powerful horsepower. It is more suitable for heavy load pulling. On the crane selection, this car can be equipped with a maximum of 10 tons of crane. Recommendation Index ★★★★ ★
