[Technical parameters of the vehicle] |
|||||
product name |

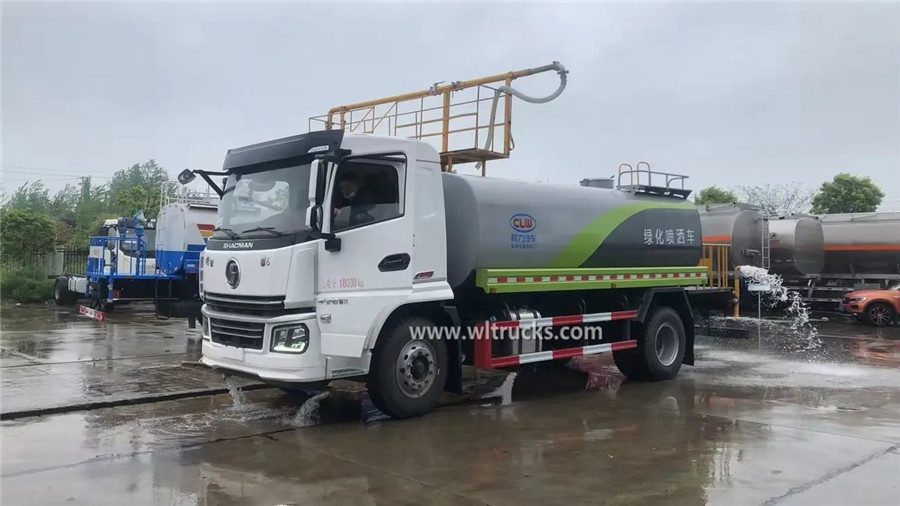

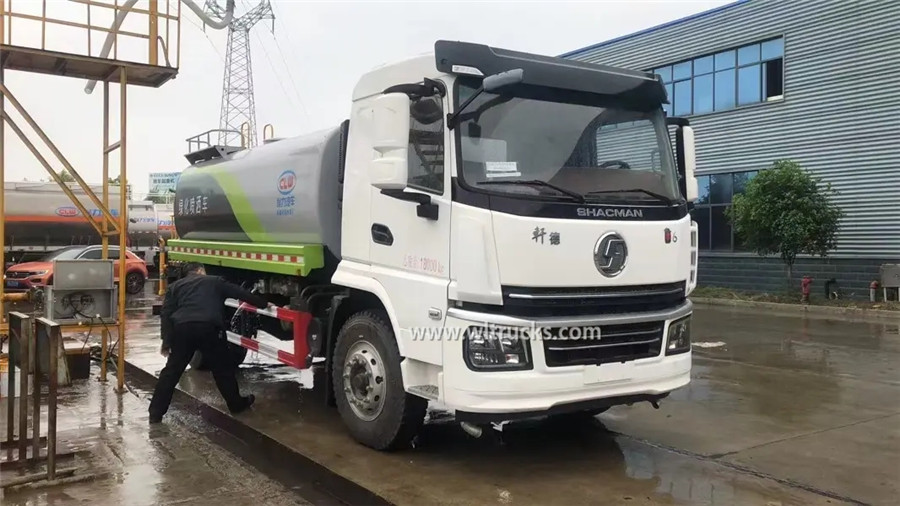

CL5183GPSSX water carry truck |
||||
Total mass (kg) |
18000 |
Tank volume (m3) |
16 |
||
Rated mass (kg) |
10370 |
Dimensions (mm) |
8650X2500X3550 |
||
Curb weight (kg) |
7500 |
Cargo compartment size (mm) |
XX |
||
The number of passengers in the cab (person) |
3,2 |
Maximum load of saddle (kg) |
|||
Approach angle/departure angle (°) |
23/17 |
Front suspension/rear suspension (mm) |
1450/2300 |
||
Axle load (kg) |
6500/11500 |
Maximum speed (km/h) |
89 |
||
Remarks: |
Remarks: The overall dimensions of the tank (length×long axis×short axis) (mm): 4800×2320×1480.The special devices are mainly tanks and spraying systems, which are used for landscaping and spraying operations. |
||||
【Chassis technical parameters】 |
|||||
Chassis model |
SX1182GP6501 |
Chassis name |
Truck chassis |
||
Trade name |
Shacman |
manufacturer |
Shaanxi Automobile Group Co., Ltd. |
||
Number of axes |
2 |
Number of tires |
6 |
||
Wheelbase (mm) |
4500,5000 |
||||
Tire specifications |
10.00R20,10.00R20 18PR |
||||
Number of leaf spring |
9/10+6 |
Front track (mm) |
1970 |
||
Fuel type |
Diesel oil |
Rear track (mm) |
1860 |
||
Emission standard |
GB3847-2005, GB17691-2018 National Ⅵ |
||||
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
YCK05210-60 YCK05240-60 YCS06245-60A D45TCIF1 YCS06245-60 |
Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Kunming Yunnei Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. |
5132 5132 6234 4461 6234 |
157 176 180 162 180 |
