[Technical parameters of the vehicle] |
|||||
|
product name |

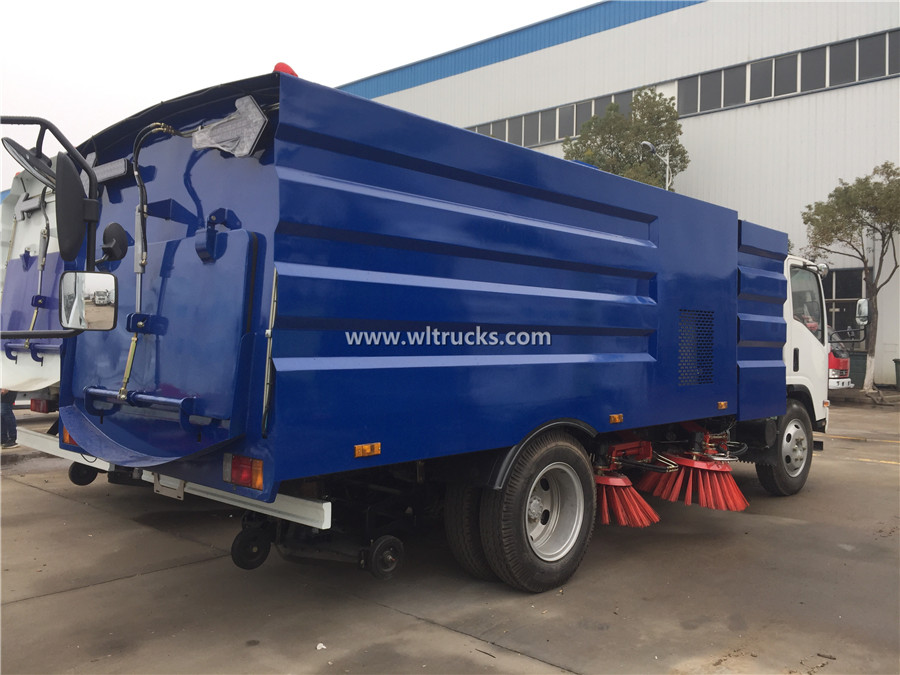

CLW5100TSL street sweeper vehicle |
||||
|
Total mass (kg) |
13000 |
Tank volume (m3) |
|||
|
Rated mass (kg) |
3045 |
Dimensions (mm) |
7500X2300X2800 |
||
|
Curb weight (kg) |
9880 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
2 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
20/10 |
Front suspension/rear suspension (mm) |
1110/1645 |
||
|
Axle load (kg) |
3360/6695 |
Maximum speed (km/h) |
110 |
||
|
Remarks: |
Remarks: This vehicle is used for cleaning garbage on urban roads. The height of thetail from the ground: 429mm., |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
QL11009LARY |
Chassis name |
Truck chassis |
||
|
Trade name |
Isuzu |
manufacturer |
Qingling Motors Co., Ltd. |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
4175 |
||||
|
Tire specifications |
235/75R17.5-14PR, 8.25-20-14PR |
||||
|
Number of leaf spring |
8/10+6 |
Front track (mm) |
1680 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1650 |
||
|
Emission standard |
GB17691-2005 (National IV), GB3847-2005 |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
4HK1-TCG40 |
Qingling Isuzu (Chongqing) Engine Co., Ltd. |
5193 |
139 |
||
