[Technical parameters of the vehicle] |
|||||
|
product name |

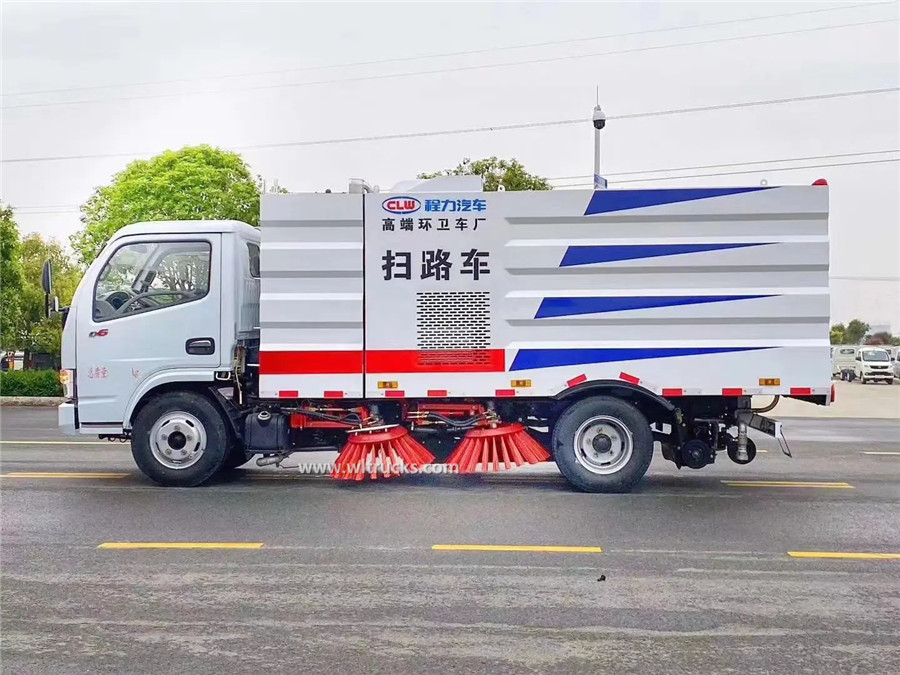

CLW5070TSLE6 street sweeper |
||||
|
Total mass (kg) |
7360 |
Tank volume (m3) |
|||
|
Rated mass (kg) |
2130 |
Dimensions (mm) |
6200X2000X2590 |
||
|
Curb weight (kg) |
5100 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
2 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
24/10 |
Front suspension/rear suspension (mm) |
1055/1837 |
||
|
Axle load (kg) |
2640/4720 |
Maximum speed (km/h) |
110 |
||
|
Remarks: |
Remarks: The vehicle is mainly used for mechanized cleaning operations on the road; the special device is sweeping. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
EQ1075SJ3CDF |
Chassis name |
Truck chassis |
||
|
Trade name |
Dongfeng |
manufacturer |
Dongfeng Motor Co., Ltd. |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
2700, 2950, 3308 |
||||
|
Tire specifications |
7.00R16 |
||||
|
Number of leaf spring |
6/6+5 |
Front track (mm) |
1525 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1498 |
||
|
Emission standard |
GB17691-2018 National Ⅵ |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
CY4BK461 CA4DB1-11E6 CY4BK161 D20TCIF1 Q28-130E60 H20-120E60 CA4DB1-13E6 YCY24140-60 D20TCIF11 Q23-115E60 ZD30D16-6N M9T-600 |
Dongfeng Chaoyang Chaochai Power Co., Ltd. China FAW Group Co., Ltd. Dongfeng Chaoyang Chaochai Power Co., Ltd. Kunming Yunnei Power Co., Ltd. Anhui Quanchai Power Co., Ltd. Anhui Quanchai Power Co., Ltd. China FAW Group Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Kunming Yunnei Power Co., Ltd. Anhui Quanchai Power Co., Ltd. Dongfeng Light Engine Co., Ltd. Dongfeng Light Engine Co., Ltd. |
3707 2207 3856 1999 2800 2000 2207 2360 1999 2300 2953 2298 |
95 81 105 93 96 90 95 103 93 85 120 105 |
||
